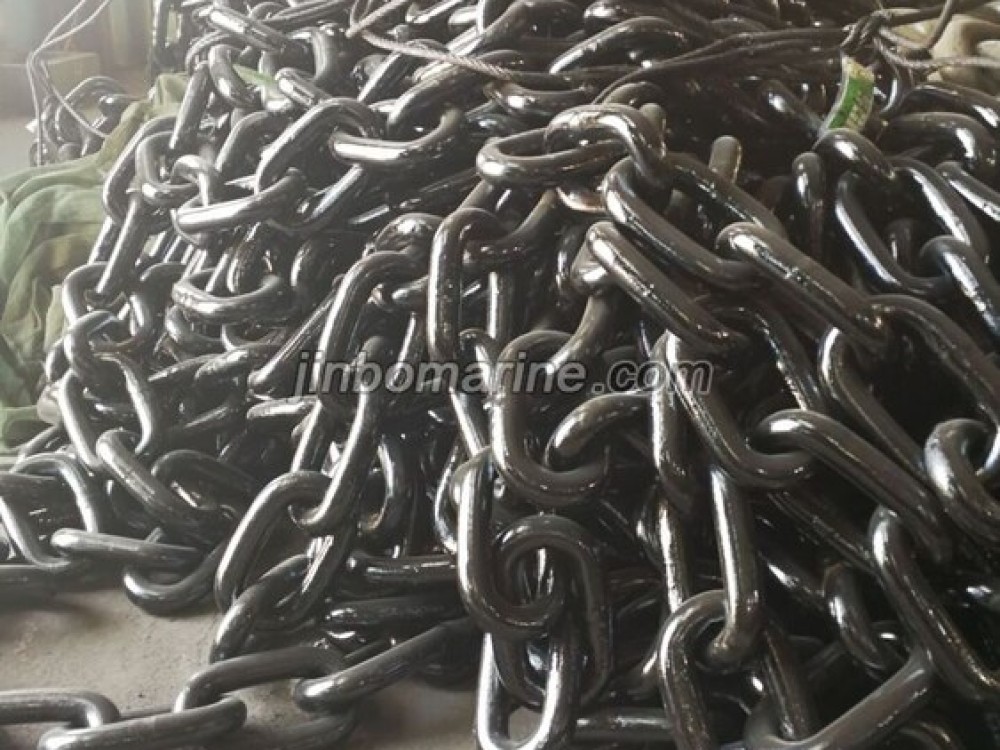

32mm Grade 2 Studless Stud Link Anchor Chain

  • Category:Anchor Chain
  • Material:Steer Bars CM490 CM690
  • Certificate:BV, CCS
  • Delivery Time:30 days
  • Packing Details:Bags
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China 32mm Grade 2 Studless Stud Link Anchor Chain:

Studless Link Anchor Chain also named open link anchor chain, grade 2 or garde 3.

Finish: Black Painted.

The inside length (grip or pitch) of one link is 4D.

The outside length of one link is 6D.

The outside width of one link is 3.56D.

The gauge-test length is the outside length over 6 links and equals 26 wire diameters.

The length of a standard "shot" = 15 fathoms = 90ft.= 1080"

Class Certifications: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Works Certificate.

Specification:


Diameter CHAIN LINK SIZE Grade 2 Grade 3 APPROX. WEIGHT
U2 OPEN LINK CHAIN U3 OPEN LINK CHAIN
OUTSIDE LENGTH OUTSIDE WIDTH PROOF LOAD BREAKING LOAD PROOF LOAD BREAKINGLOAD KG/27.5M
MM MM MM KN KN KN KN
12.5 75 45 41.2 82.6 56.4 112.8 85.41
14 84 50.4 51 101.9 70.76 141.51 106.55
16 96 57.6 66.2 132.3 92.42 184.83 139.43
17.5 105 63 78.89 157.78 110.55 221.1 178.35
19 114 68.4 93.6 187.2 130.32 260.64 217.68
20.5 123 73.8 108.64 217.27 151.7 303.42 229.14
22 132 79.2 125.4 250.9 174.4 349.4 264.49
24 144 86.4 149.9 298.9 207.9 415.8 341.82
26 156 93.6 175.4 350.8 244 488 369.94
28 168 100.8 203.8 406.7 283 566 427.04
30 180 108 234.2 467.5 324.9 649.8 490.98
32 192 115.2 265.6 531.2 369.6 739.3 559.65
34 204 122.4 299.9 599.8 417.3 834.6 671.52
36 216 129.6 336.1 672.3 467.8 935.7 707.85
38 228 136.8 374.4 748.7 521.3 1042.5 788.98
40 240 144 414.5 829.1 577.6 1155.2 869.36
42 252 151.2 457.7 915.3 636.8 1273.6 959.3
44 264 158.4 502.7 999.6 698.9 1398 1111.25
46 276 165.6 548.8 1097.6 763.9 1527.8 1152.07
48 288 172.8 597.8 1195.6 831.7 1663.5 1256.26
50 300 180 648.8 1239.6 902.5 1805 1360.41
52 312 187.2 697.63 1395.26 976.14 1952.28 1485.61
54 324 194.4 752.33 1504.66 1052.68 2105.36 1648.08
56 336 201.6 809.09 1618.18 1132.1 2264.2 1715.97
58 348 208.8 867.91 1735.82 1214.4 2428.8 1844.5
60 360 216 928.8 1857.6 1299.6 2599.2 1973.29
62 372 223.2 991.75 1983.5 1387.68 2775.36 2101.56
64 384 230.4 1056.77 2113.54 1478.66 2957.32 2298.47
66 396 237.6 1123.85 2247.7 1572.52 3145.04 2398.1
68 408 244.8 1192.99 2385.98 1669.26 3338.52 2522.88
70 420 252 1264.2 2528.4 1768.9 3537.8 2697.65
