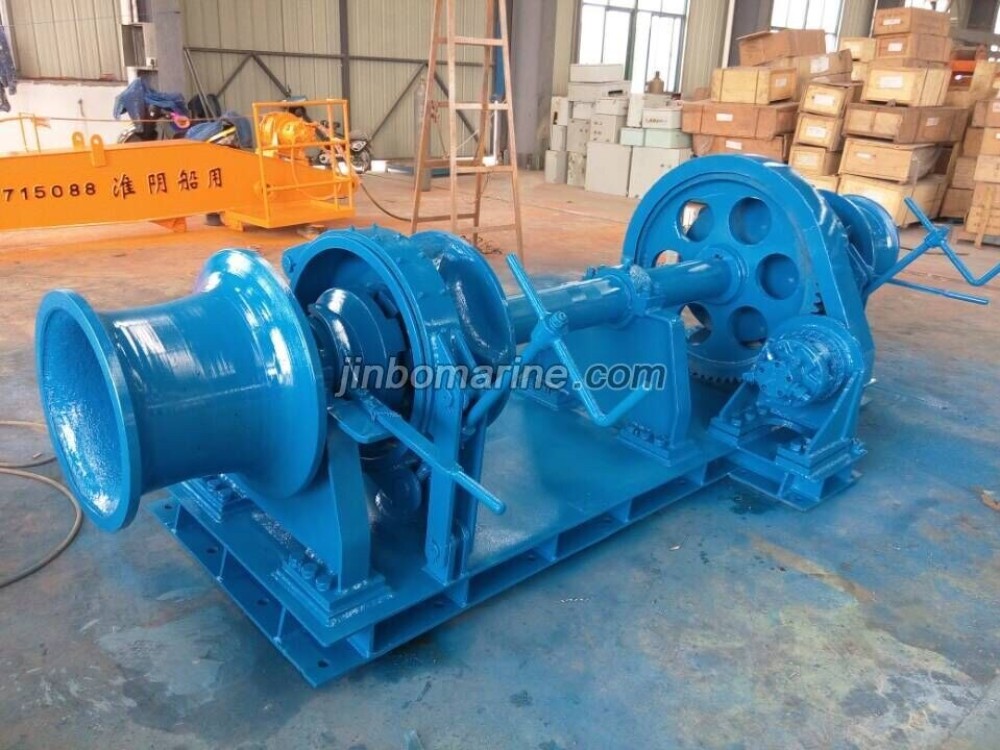

36mm Anchor Windlass With CCS

Main Parameter:

Anchor Chain Diameter: 36mm(AM2)

Anchoring deepth: Less than 82.5m

Working load: 55.1kn

Overload: 82.7kn

Holding Capacity: 329kn

Nominal speed: more than 9m/min

Hydraulic: HT3-2450C

Hydraulic motor: 63SCY14-1B

Motor model: Y225S-4, power: 37kw, 440v/60hz/3ph

Working pressure: 14.10Mpa

Flow rate: 77.68L/min

Remarks:

The distance between the two anchor lifter is 1830mm, can be adjusted by the client's requirement, the mooring drum is available for the windlass on the client requirement.
