7000kgs JB HHP Anchors

  • Category:Offshore Anchor
  • Material:DH36, Casting Steel
  • Standards:GBT-548-1996
  • Certificate:ABS, LR, BV, DNV, GL, RINA, NK, KR, RS, IRS, CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

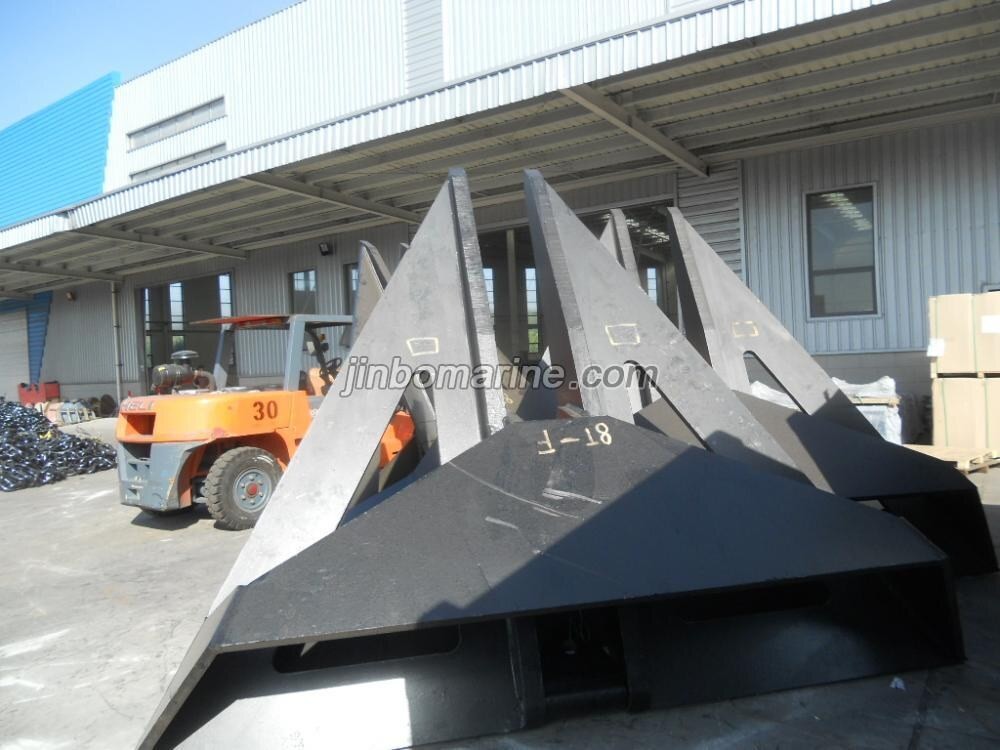

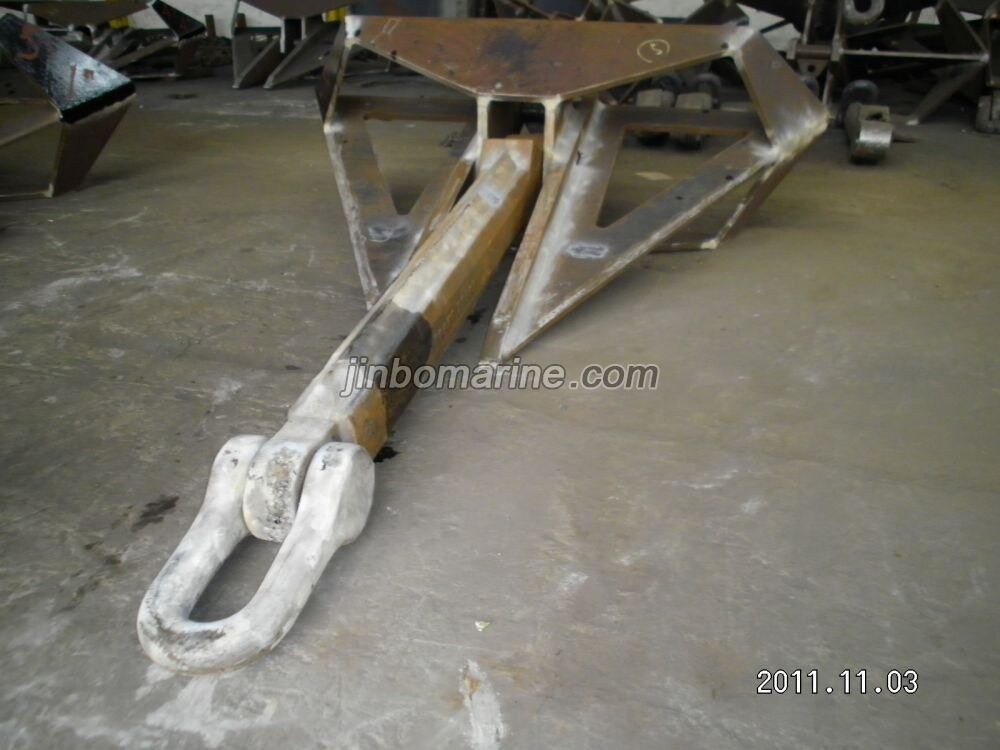

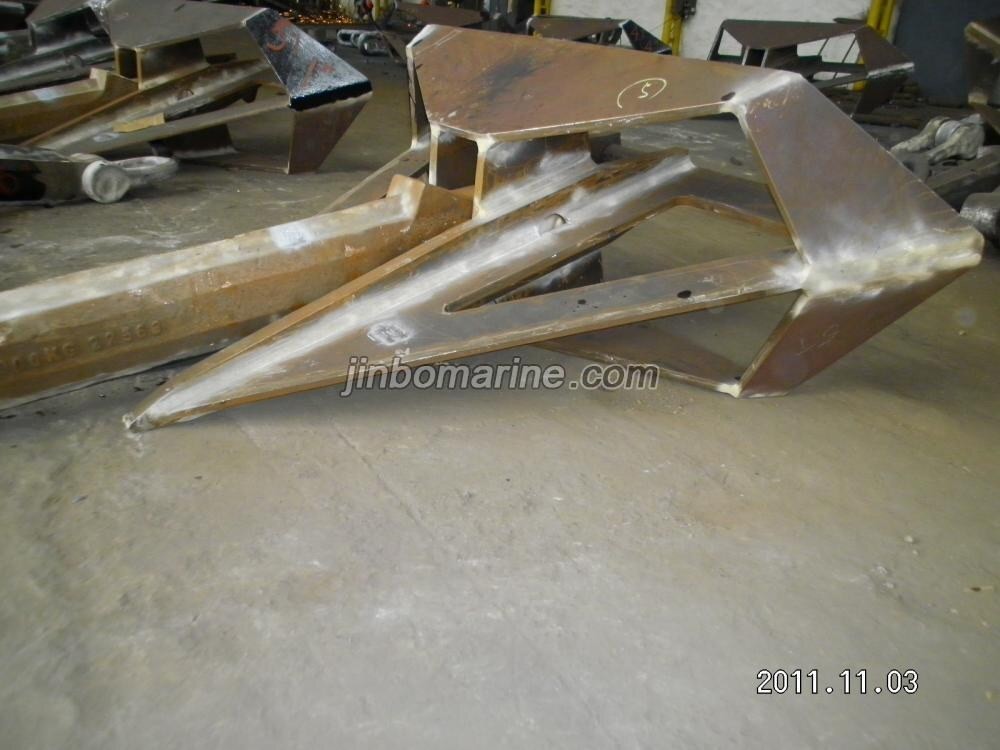

China 7000kgs JB HHP Anchors:

We have all size of JB HHP anchors for sale except 7000kgs, easy installation and high holding power(HHP).

JB HHP Anchors

  • This Anchor is steel plateanchor,a smooth and excellent penetration in diffierent seabeds.
  • Anchor is High Holding Power Anchor, big holding-power-to weight ratio and excellent stability.
  • The weight is from 300KGS to 25000KGS, one of our most popular anchor to the oversea market.
  • The classification Certificate shall be provided for the anchors, ABS, LR, BV, DNV, NK, GL, IRS, KR and CCS.

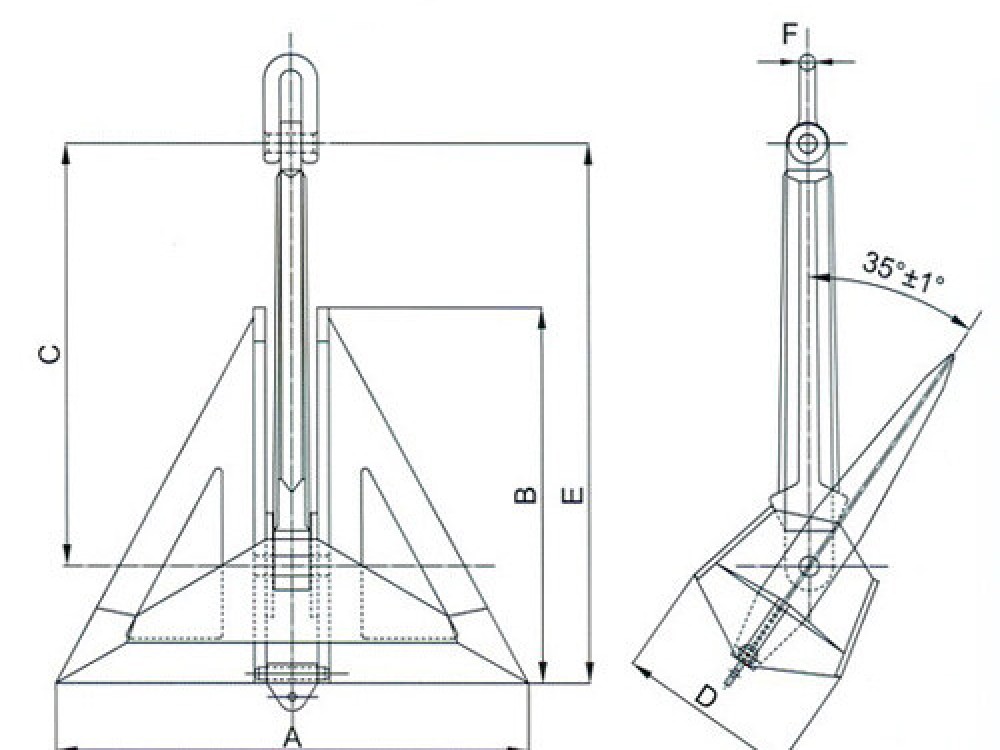

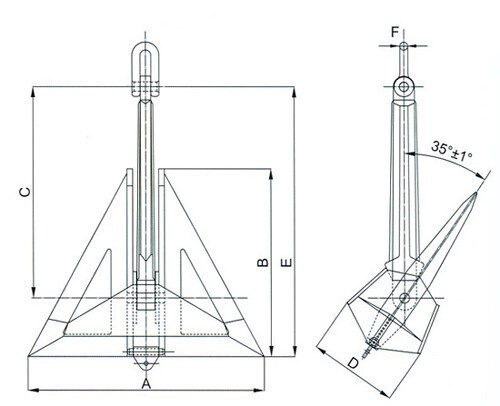

JB HHP Anchors Specs:

Weight/Mass
(KG) 		Size(mm)
A B C D E F
300KGS 1200 960 1080 457 1380 45
500KGS 1500 1200 1350 571 1725 50
1000KGS 1875 1500 1686 714 2155 62
1080KGS 1915 1530 1686 722 2200 62
2000KGS 2363 1890 2124 900 2715 82
3000KGS 2700 2160 2430 1028 3105 90
4000KGS 2975 2380 2676 1133 3420 100
5000KGS 3250 2600 2922 1238 3735 110
7000KGS 3575 2860 3216 1361 4100 117
7500KGS 3650 2925 3290 1390 4210 117
8000KGS 3730 2900 3360 1420 43000 130
9000KGS 3950 3160 3555 1504 4543 135
10000KGS 4100 3280 3690 1561 4715 140
12000KGS 4490 3575 4030 1695 5320 145
13500KGS 4670 3720 4195 1765 5535 150
15000KGS 4845 3875 4355 1830 5735 150
18000KGS 5140 4080 4610 1940 6080 160
20000KGS 5330 4260 4790 2010 6310 170
22500KGS 5490 4360 4905 2060 6470 180
25000KGS 5740 4590 5160 2165 6795 195

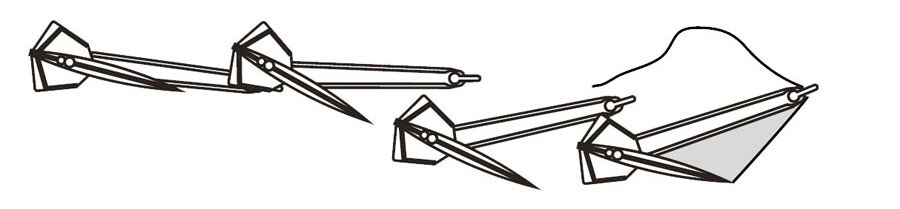

JB HHP Anchor/Fluke Angle

Proof Load for JB HHP Anchor

anchor weight kg proof load kN
anchor weight kg proof load kN
anchor weight kg proof load kN
50 29.7 2000 434.3 7000 970.3
55 31.7 2100 450 7200 987
60 34 2200 466 7400 1002
65 35.3 2300 480.7 7600 1018
70 37 2400 495 7800 1034
75 39 2500 509.7 8000 1050
80 40.7 2600 524.3 8200 1066
90 44 2700 537 8400 1078
100 47.3 2800 550.3 8600 1088.7
120 53 2900 563.7 8800 1099.3
140 58.3 3000 577 9000 1110
160 63.7 3100 589 9200 1120.7
180 68.4 3200 601 9400 1132
200 73.3 3300 613 9600 1148
225 80 3400 625 9800 1162.7
250 85.7 3500 635.7 10000 1173.3
275 91.7 3600 645 10500 1210
300 98 3700 655.7 11000 1240
325 104.3 3800 666.3 11500 1266.7
350 110.3 3900 677 12000 1300
375 116 4000 687 12500 1340
400 122 4100 696.3 13000 1380
425 127.3 4200 706 13500 1410
450 132 4300 715.7 14000 1450
475 137.3 4400 725.7 14500 1483.3
500 143 4500 735 15000 1520
550 155 4600 742.3 15500 1553.3
600 166 4700 751.7 16000 1586.7
650 177.3 4800 760 16500 1620
700 188 4900 769 17000 1653.3
750 199 5000 111 17500 1686.7
800 210.7 5100 786 18000 1720
850 221.3 5200 797.3 18500 1753.3
900 231 5300 808.7 19000 1780
950 241.7 5400 818 19500 1800
1000 252.3 5500 827.3 20000 1833.3
1050 262 5600 836.3 21000 1900
1100 272.7 5700 845 22000 1956.7
1150 282.7 5800 855.7 23000 2016.7
1200 292 5900 866.3 24000 2070
1250 302 6000 877 25000 2130
1300 311.7 6100 887 26000 2190
1350 321 6200 897.3 27000 2250
1400 330.3 6300 908 28000 2303.3
1450 339.7 6400 917.3 29000 2356.7
1500 349 6500 926.7 30000 2410
1600 366.7 6600 936 31000 2463.3
1700 384 6700 944.7 32000 2516.7
1800 401 6800 953 34000 2623.3
1900 418.3 6900 961 36000 2730
