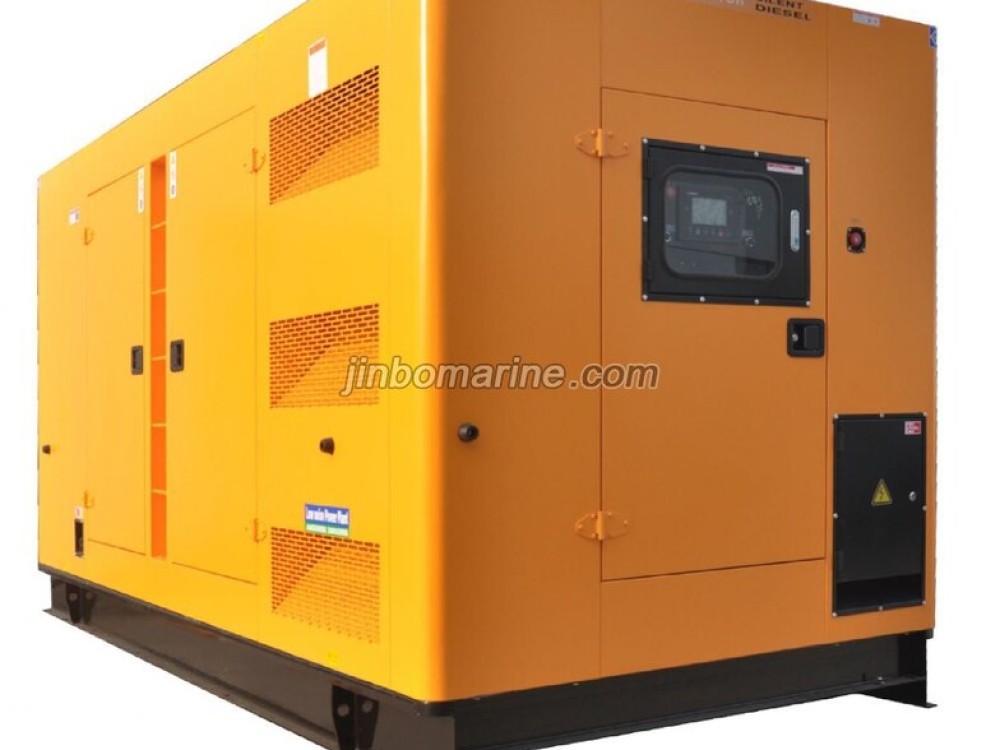

750KVA CUMMINS Generator Set(Slient tyepe)

Request a Quote Not what you need, please send your RFQs via Email.

Details

750KVA CUMMINS Generator set(Slient type)

General feature

Coupled with CUMMINS diesel engine and SUNAMA POWER alternator
● 24V DC start motor and storage battery
● Brushless, Self-excited, AVR, insulation class H alternator
● 40℃ radiator as standard, 50℃ is optional
● Key start panel control system as standard, digital auto-start panel is optional
● Optional open type or silent type
● All generator sets are gone through rigorous testing before being released to the market place, includingCUMMNS Diesel Engine

ENGINE SPECIFICATION

Engine Model KTAA19-G6A
Configuration: 4 cycle , 6cylinders in "L"
Aspiration: Turbocharged after water-cooled
Bore x Stroke: 159 x14259mm
Rated speed: 1800rpm
Displacement (Liter): 18.9L
Compression Ratio: 17.5:1
Output Power: 664KW/830KVA
Speed Governor: electrical
Cooling System: Water-cooled , 40℃ Radiator As Standard, 50℃ Is Optional.
Speed Stability (%): ≤5%
Fuel Consumption at 100% Load: 205g/kw.h
Starter Motor: DC24V

Alternator SPECIFICATION

Brand: SUNAMA POWER
Alternator Model: SMI-600-4
Capacity: 750KVA
Voltage: 120V/230V
Frequency & Speed: 60HZ/1800RPM
Exciter type: Brushless, Self-excited, AVR
Power factor :0.8
Voltage Adjust range: ≥5%
Voltage Regulation NL-FL: ≤±0.5%
Insulation Grade: H
Protection Grade:IP23
