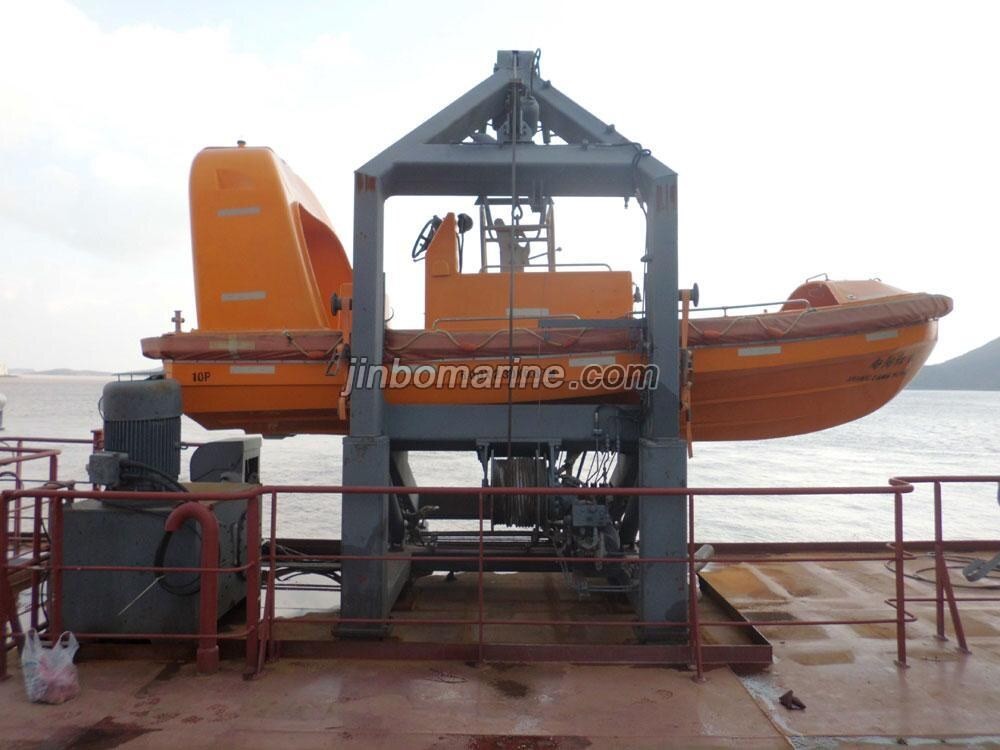

A Frame Davit

Request a Quote Not what you need, please send your RFQs via Email.

Details

Available Type:

Hydraulic type A Frame Davit.

Electric type A Frame Davit.

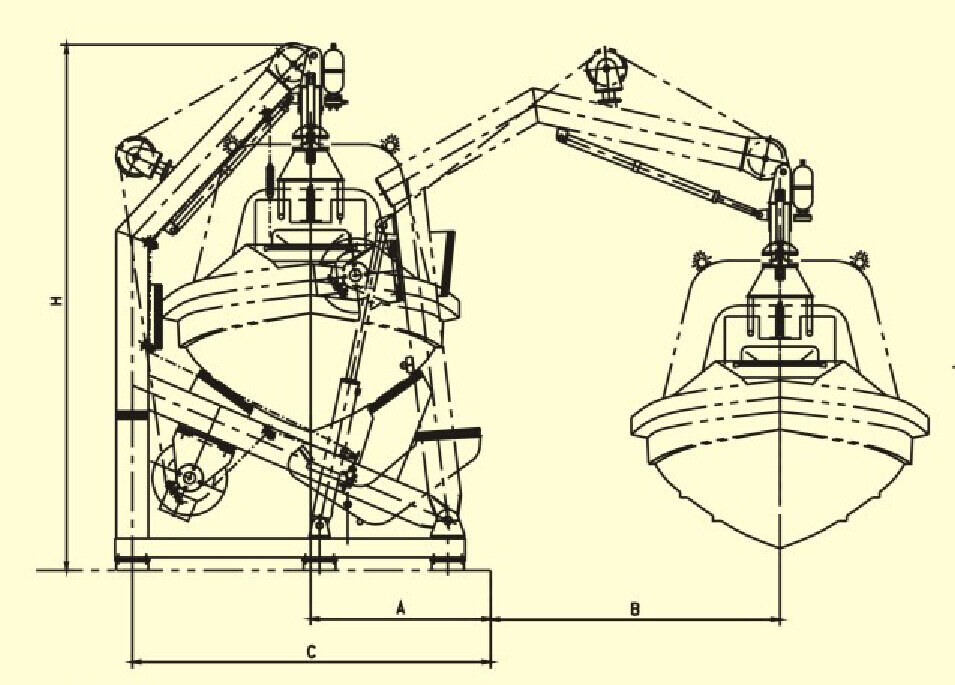

Main Dimensions And Specfications:

Safe working load Hoisting load Hoisting speed Lowering speed A B C H F Notes
30KN 30KN ≥48m/min 48~60m/min 1405 2255 2795 4096 1800 With constant tension,anti pendulum system.
30KN 30KN ≥18m/min 40~60m/min 1300 2315 2735 4282 1600 Electric winch
60KN 60KN ≥18m/min 40~60m/min 1450 3331 3612 5295 2200 Electric winch
