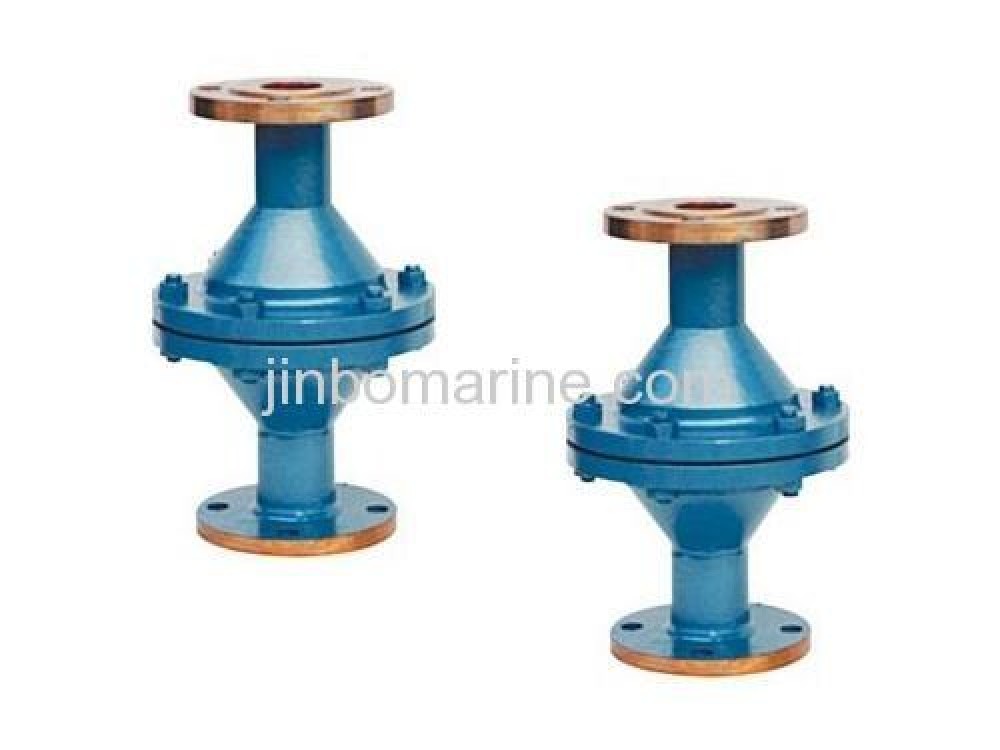

Air Relief Flame Arrestor
- Category:Flame Arrestor
- Material:L2 A3 304 304L 316 316L
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Air Relief Flame Arrestor:
Air Relief Flame Arrestor is also called mesh flame arrester, is one of the early flame arrester with characteri of simple structure, easy maintenance.
Main Specification
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
| in | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 |
| L | / | 195 | 195 | 220 | 220 | 245 | 245 | 280 |
| H | / | 200 | 200 | 236 | 236 | 240 | 240 | 270 |
| DN | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| in | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
| L | 325 | 325 | 427 | 496 | 593 | 860 | 860 | 1250 |
| H | 274 | 274 | 288 | 306 | 320 | 580 | 580 | 850 |
Material
| Model | Explosion group | BS 5501:ⅡA ⅡB ⅡC | |
| Size | DN 15～600 GB 81～59 PN 0.6～2.5 FF RF | Manufacture Inspection | GB5908-86 SY7511-87 |
| Body | L2 A3 304 304L 316 316L Lining | Diaphragm(P/V) | NBR PTFE Metal Gasket |
| Flame Arrestor | Ambient Temperature | CS:-30℃～+350℃ SS:-80℃～+480℃ | |
| Flanges | HG GB SH HGJ JB ANSI JIS | Jonit Type | Flange Threaded Butt Welding |
| Bolt/Nut | 20# 304 304L 316 316L | Coating | CS:Paint SS:No Paint |
