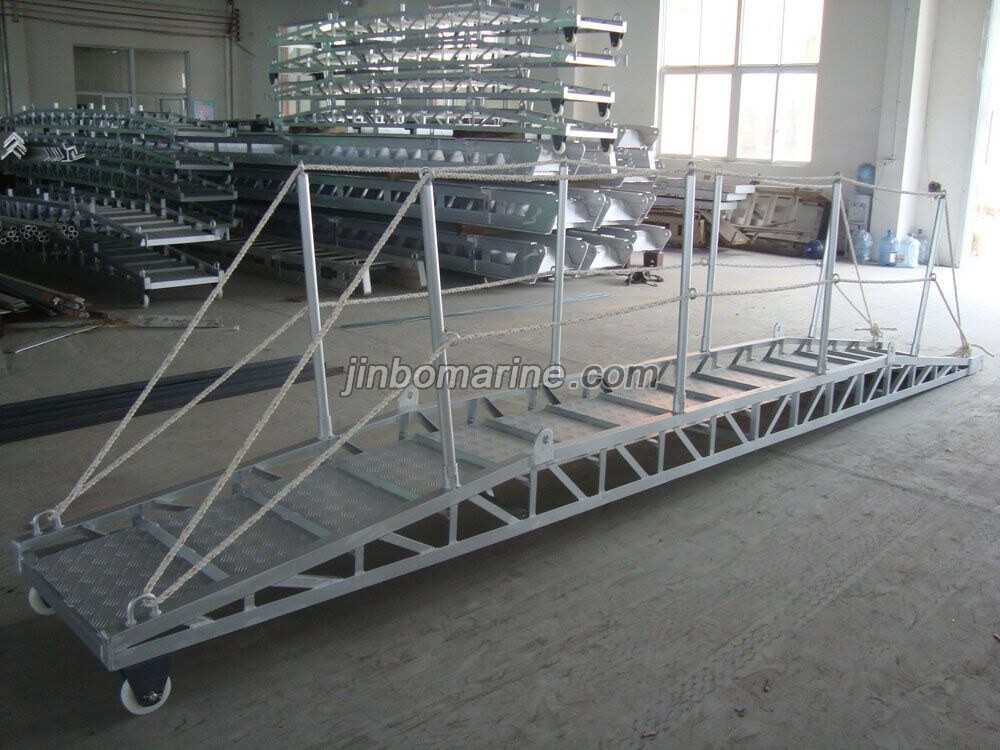

Aluminum Wharf Ladder ( Bend Type)

  • Category:Marine Ladder
  • Material:Aluminum Alloy
  • Standards:CB3116-82, JIS F2613-1796 & ISO7061-1993
  • Certificate:CCS,DNV,GL, LR, ABS, BV, NK,KR,RINA
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

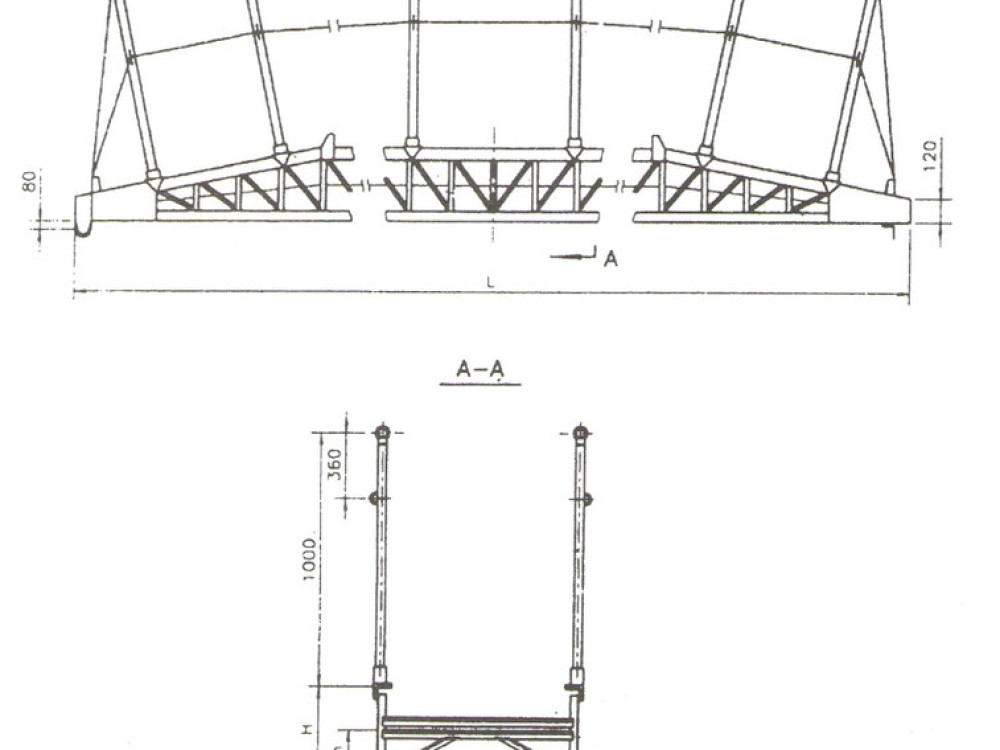

Aluminum Wharf Ladder ( Bend Type) Drawing

Aluminum Wharf Ladder ( Bend Type) Drawing

China Aluminum Wharf Ladder ( Bend Type):

Standard:CB3116-82, JIS F2613-1796 & ISO7061-1993

Max usage angle:30ยบ

Usage situation: embark and disembark for personnel when various types of ships are mooring alongside a deck

*It also can be called as aluminum gangway or shore gangway.

*Normally it is with hook in one side and another side with roller.

*If the length is too long, not suitable for shipment. The ladder can be made with two parts.

*The wharf ladder also can be with the safety net.

*The surface of the product is anodized.

Main Material:

1-Roller: Nylon

2-Ladder:Alumimum Alloy

3-Rope: Nylon

4-Hook: Aluminum Alloy or Steel

Main Size List(mm):

L I H h
8000 3200 350 170
10000 4830 500 250
12500 4830 550 250
15000 7230 750 250

The size in the list is just for reference. The length and the width are customerized. But the standard width is inside 600mm, outside 700mm.
