Baldt Stockless Anchor
- Category:Marine Stockless Anchor
- Material:Casting Steel
- Standards:GBT-548-1996
- Certificate:ABS, LR, BV, DNV, GL, RINA, NK, KR, RS, IRS, CCS
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Baldt Stockless Anchor:

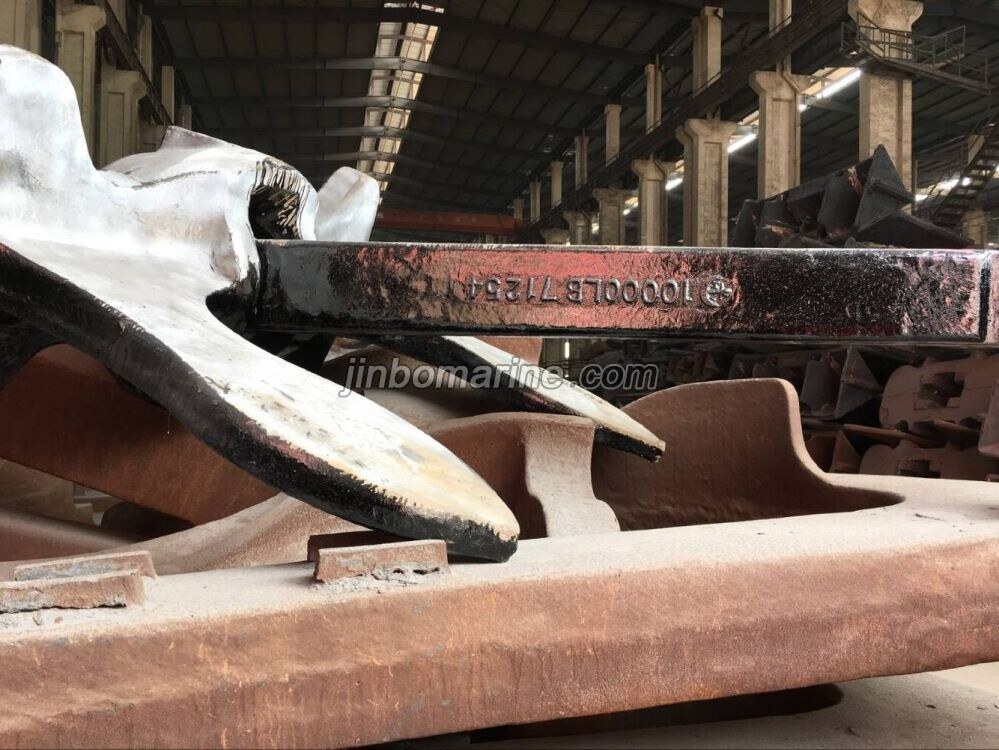

Baldt Stockless Anchor
Baldt anchor is a conventional type stockless anchor, material is casting steel, all range of Baldt can be supplied
with Class Certificate.
Material: ZG200-400C
Weight: 200KGS to 50000KGS
Class Certificate: ABS, LR, BV, GL, DNV, NK, IRS and CCS.

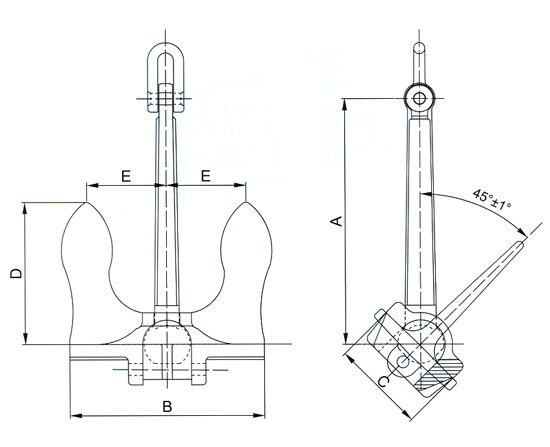

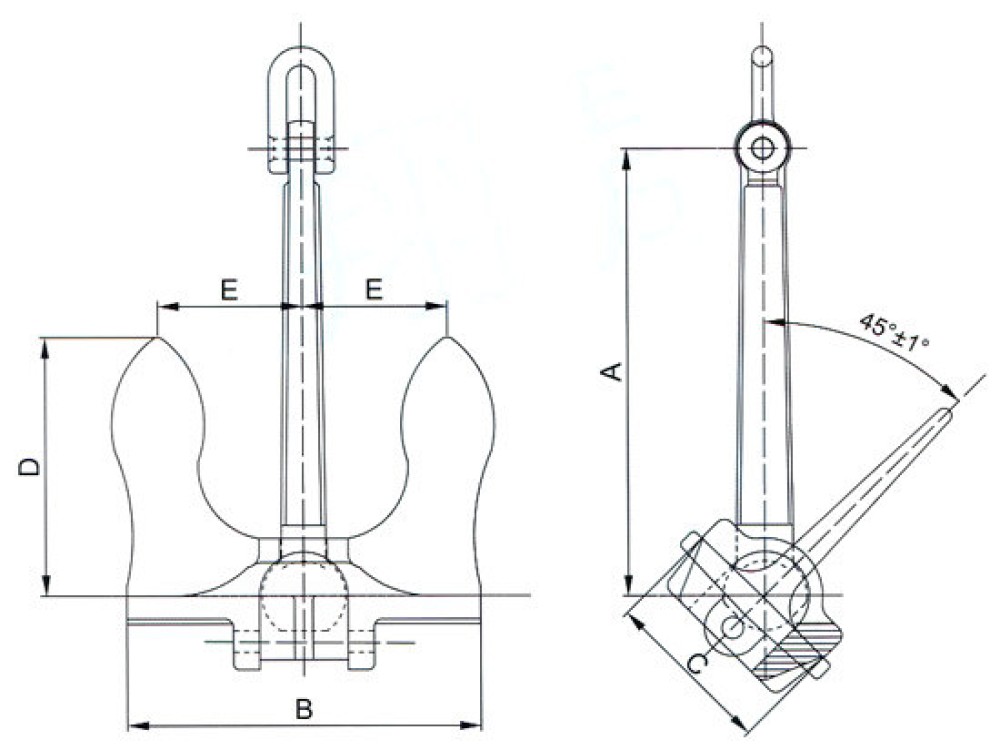

Baldt Anchor Weight:
|
Weight/Mass (KG) |
Size(mm) | ||||
| A | B | C | D | E | |
| 200KGS | 685 | 457 | 241 | 366 | 190.5 |
| 300KGS | 812 | 590 | 296 | 442 | 230 |
| 400KGS | 812 | 654 | 330 | 482 | 250 |
| 500KGS | 900 | 673 | 356 | 530 | 287.5 |
| 750KGS | 965 | 770 | 407 | 584 | 308 |
| 1000KGS | 1067 | 854 | 457 | 640 | 347.5 |
| 1250KGS | 1165 | 923 | 475 | 720 | 370 |
| 1500KGS | 1232 | 1005 | 515 | 748 | 392 |
| 2000KGS | 1370 | 1092 | 558 | 848 | 430 |
| 2100KGS | 1370 | 1092 | 558 | 848 | 436 |
| 2500KGS | 1473 | 1136 | 568 | 848 | 448 |
| 3000KGS | 1625 | 1194 | 648 | 912 | 483 |
| 3500KGS | 1625 | 1340 | 698 | 1003 | 500 |
| 4000KGS | 1734 | 1354 | 705 | 1054 | 518 |
| 4500KGS | 1794 | 1440 | 735 | 1066 | 563 |
| 5000KGS | 1930 | 1460 | 762 | 1130 | 588 |
| 6000KGS | 1930 | 1613 | 844 | 1194 | 641.5 |
| 6300KGS | 1930 | 1613 | 844 | 1194 | 641.5 |
| 7000KGS | 2082 | 1691 | 882 | 1263 | 668 |
| 8000KGS | 2265 | 1691 | 894 | 1276 | 668 |
| 9000KGS | 2438 | 1784 | 924 | 1314 | 695 |
| 10000KGS | 2438 | 1918 | 990 | 1470 | 725 |
| 11000KGS | 2438 | 1918 | 990 | 1473 | 778 |
| 12000KGS | 2438 | 1950 | 1016 | 1473 | 778 |
| 13000KGS | 2489 | 1949 | 1016 | 1473 | 799 |
| 14000KGS | 2616 | 2045 | 1118 | 1524 | 818 |
| 15000KGS | 2616 | 2184 | 1168 | 1600 | 875 |
| 16000KGS | 2738 | 2184 | 1168 | 1651 | 875 |
| 17200KGS | 2738 | 2184 | 1222 | 1660 | 875 |
| 18000KGS | 2850 | 2240 | 1232 | 1667 | 888 |
| 20000KGS | 2840 | 2440 | 1270 | 1866 | 990 |
| 25000KGS | 3048 | 2616 | 1365 | 1968 | 990 |
| 30000KGS | 3251 | 2794 | 1454 | 2096 | 1052 |
| 35000KGS | 3429 | 2946 | 1524 | 2210 | 1107 |
| 40000KGS | 3556 | 3073 | 1600 | 2311 | 1157 |
| 45000KGS | 3733 | 3200 | 1651 | 2388 | 1203 |
| 50000KGS | 3860 | 3327 | 1727 | 2515 | 1246 |
