Belt Type Skimmer

Request a Quote Not what you need, please send your RFQs via Email.

Details

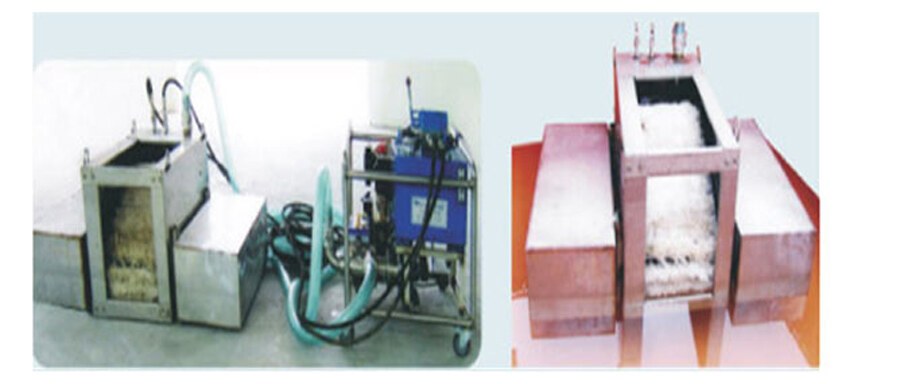

Belt type skimmer

Belt type skimmer refers to the mechanical device that is used to recover oil spill by using transmission belt composed of oil-absorbing brushes. Compared to traditional belt type skimmers, it evidently improves the oil recovery efficiency and overcomes the difficult in recovering oil spill of various viscosity. It applies to big scale oil leaking accidents in rivers, lakes, reservoirs and other water environment. When oil leaking happens in marine drilling platform, oil wharf, barges or vessels, this device can be chosen for emergency response so as to reduce the influences of pollution and protect water environment.

Features:

It can recover oil spills of various viscosity including naphtha, heavy oil, emulsified oil, crude oil and refined oil; normally the oil recovery rate is up to 99%.

With innovative technology and heavy-duty quality, it is easily operated and maintained.

With the performance of resistance to flow, wave and wind, if possesses strong adaptability.

Floating head made from stainless steel can last long and be put into use promptly without adjustment.

Various viscosity of oil layers are reclaimable.

Strong hydraulic power, steady working speed.

Oil recovery rate evidently higher than traditional belt type.

Technical parameter

Rotation speed of brush

30-100 rpm

Vertical height of suction lift oil-well pump

6-10m

Width of brush

30-100cm

Delivery lift of oil-well pump

>15m

Length of brush

50-200cm

Power of oil-well pump

1.1kw-15kw

Material of brush

Special plastic brush belt

Length of oil suction pipe

10m

Maximum oil reclaim speed

5-80 t/h

Total power

4-20kw

Length of hydraulic hose

10m

Diameter of oil suction pipe

30-100mm

Draft

15-50cm or adjustable

Type of hydraulic oil

46# wear-resistant hydraulic oil
