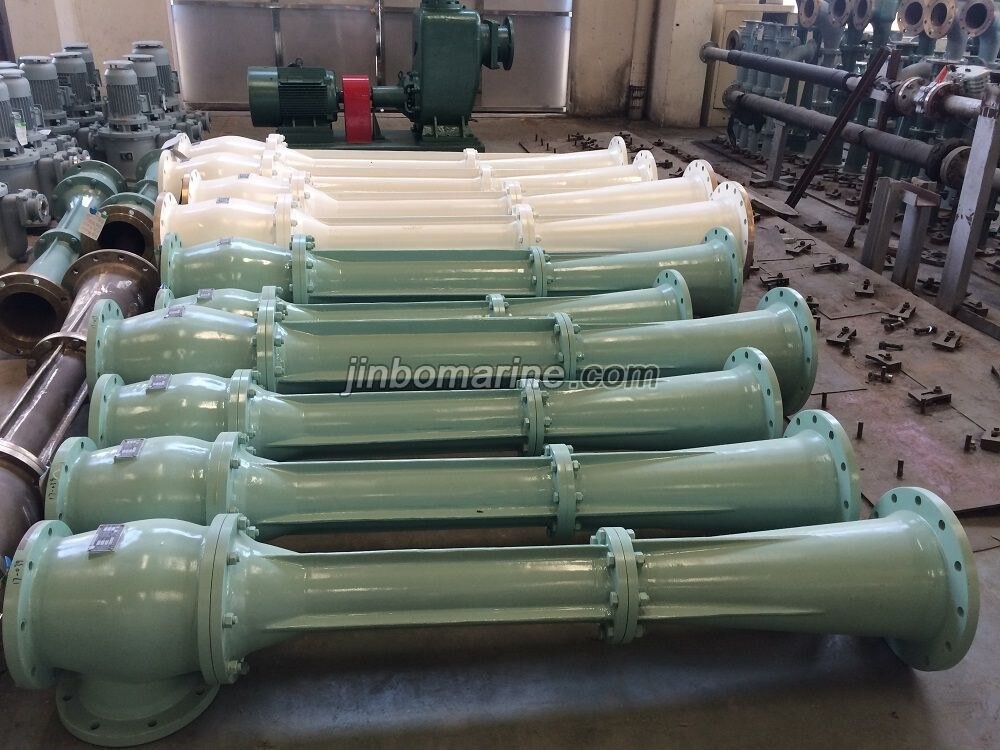

Bilge Water Eductor
- Category:Jet pump
- Material:bronze body, SS316 nozzle, Cast iron
- Standards:CCS
- Certificate:CCS, ABS，BV, LR, Etc
- Packing Details:Standard packing
- Delivery Time:15 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Bilge Eductor
General description
CPJ Series bilge eductor inlet, outlet and nozzle are on the same axis,have high efficienay, easy installationHas a self-priming performance,can work continuously steadily,No moving parts, long service life.Hydrophobic system is mainly used in ships, also can be used for environmental protection, chemical industry, water conservancy, building materials, etc, for sea water, mixed liquid, river dredging, conveying powder, etc
Type explanation

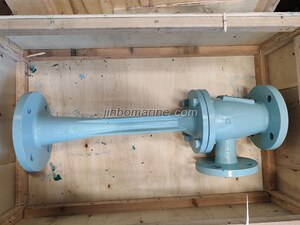

For the type CPJ40-50-65
- CP stand for marine injector
- J stand for working nozzle figure
- 40 stand for working water pipe diameter -mm
- 50 stand for inlet diameter-mm
- 65 stand for outlet diameter-mm
Structural Specifications
Performance prarmeter
| Type | Capacity | suc'head | working pressure | water consumption | Delivery-pressure |
|
|
m3/h | m | mpa | m3/h | Mpa |
| CPJ40-50-65 | 10 | 5 | 1.2 | 15 | 0.25 |
| CPJ50-80-80 | 30 | 3 | 0.8 | 30 | 0.12 |
| CPJ80-100-100 | 70 | 3 | 0.7 | 56 | 0.1 |
| CPJ100-100-125 | 50 | 2.5 | 0.6 | 115 | 0.22 |
| CPJ100-125-125 | 100 | 3 | 1 | 110 | 0.2 |
| CPJ100-150-150 | 120 | 3 | 1 | 120 | 0.2 |
| CPJ125-150-150 | 130 | 5 | 0.9 | 320 | 0.3 |
| CPJ125-150-200 | 100 | 7 | 0.7 | 150 | 0.12 |
| CPJ125-200-200 | 130 | 5 | 1 | 250 | 0.3 |
| CPJ150-200-200 | 300 | 4 | 1.25 | 400 | 0.25 |
| CPJ150-200-250 | 300 | 5 | 1.15 | 470 | 0.25 |
| CPJ200-200-250 | 170 | 5 | 0.25 | 600 | 0.1 |
| CPJ200-250-300 | 600 | 4 | 1.2 | 340 | 0.1 |
| CPJ250-250-300 | 250 | 4 | 0.3 | 1050 | 0.15 |
| CPJ250-300-350 | 630 | 5 | 1.3 | 750 | 0.25 |
| CPJ300-300-350 | 400 | 5 | 0.3 | 1750 | 0.15 |
