Cargo Tank High Level/overfill Alarm System

Cargo Tank High Level/overfill Alarm System is to monitor liquid level for various tank, cabint and water tank. Also, be used in cargo high alarm/overfill alarm for oil tank, chemical tanker, LPG and so on.

Power supply: AC220V/50Hz,AC110V/60Hz

Medium density: >0.5g/cm3

Ex marking: Exia II CT6

Operating temperature: -10℃～+90℃

Protection degree: IP56

Type approval: CCS, GL, NK

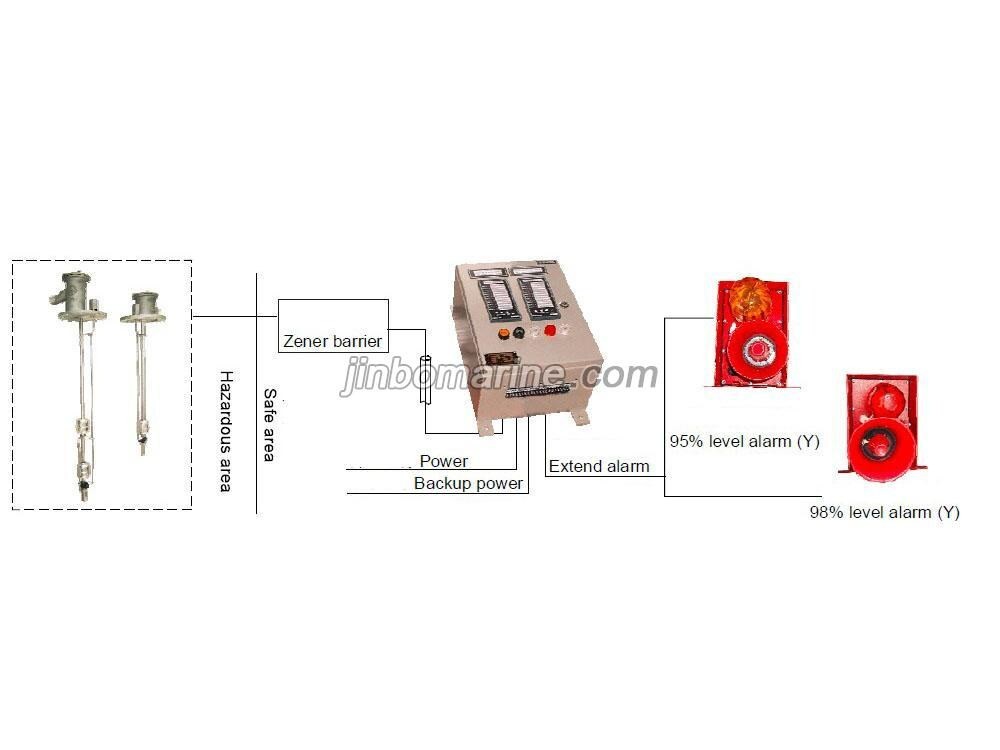

The system is designed using the magnetic float switch principle which has been proven very
effective. Each system consises of the float switch and alarming panel. Reed switches inside the stem
are activated by the permanent magnetic inside the float which rises and falls with the changes of liquid
level. Once the reed switch is activated, it sends an alarm signal to the indicating unit in the control
room.
