CFP-WAB Super Thin Horizontal Hidden Type Fan Coil

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Descroption:

CFP-BGM,WAB,ZH fan coil has new design, beautiful appearance, simple installation, convenient operation, low noise, small volume and save energy etc. which is suitable for medium and small sized navy, such as suppress smuggling boat, patrol boat and luxurious yacht etc.

Technical Data:

Type CFP-7.0WAB CFP-10WAB CFP-12WAB CFP-16WAB CFP-24WAB CFP-30WAB
Cooling capacity Kw 2 3 3.5 4.7 7 8.8
Btu/hr 7000 10000 12000 16000 24000 30000
Heating capacity Kw 2.2 3.3 3.85 5.17 7.7 9.7
Btu/hr 7500 11000 13000 17600 26000 33000
Air flow high m3/h 350 500 630 800 1400 1600
mid m3/h 300 400 505 640 1140 1280
low m3/h 210 300 380 480 890 980
Water flow m3/h 370 520 650 830 1400 1550
Diameter of Inlet/outlet RC1/2 thread or DN 15 hose RC3/4 thread or DN 20 hose
Power supply 220V 50Hz 1Φ
Total Power W 40 40 40 70 135 145
Current A 0.35 0.4 0.4 0.9 1.1 1.2

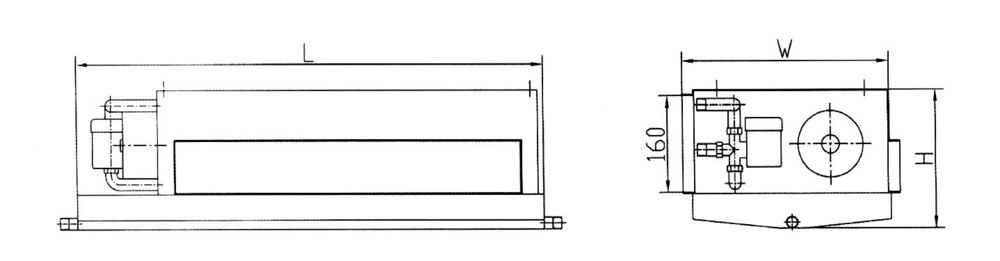

Dimension L mm 650 800 990 1090 1150 1360
W mm 350 350 350 350 350 350
H mm 230 230 230 230 230 230
Weight kg 15 17 19 21 28 32
