CGY-165 Projection Magnetic Compass
- Category:Marine Compass
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

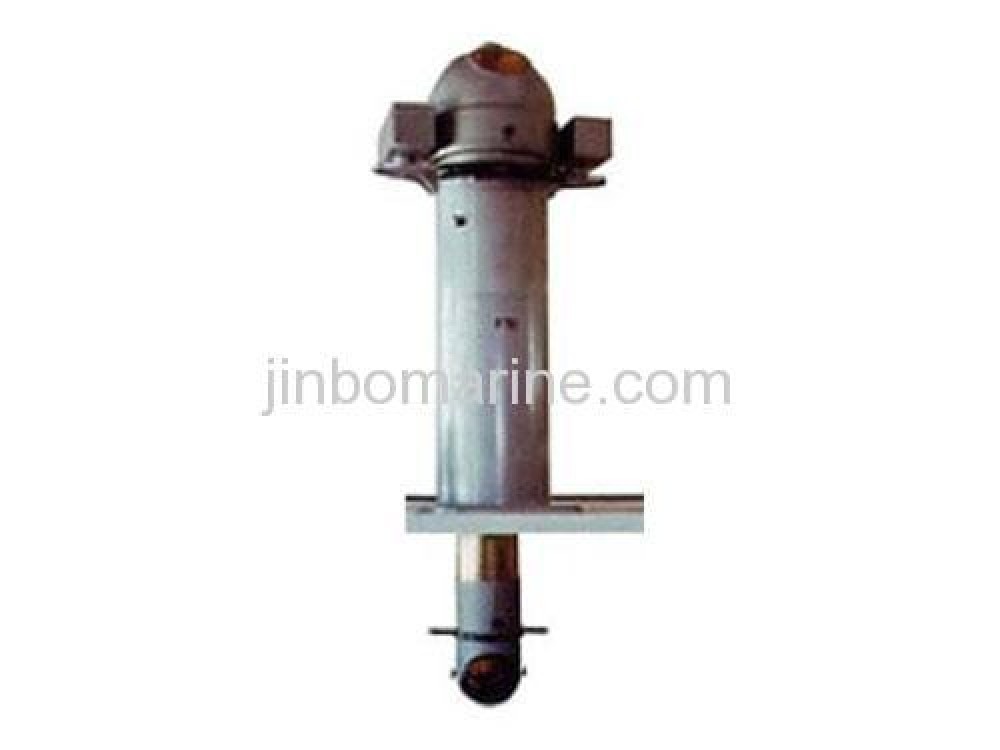

China CGY-165 Projection Magnetic Compass:
The projection magnetic compass is
specially suitable for various kinds of large and medium merchant ships &
naval service vessles to indicate the heading and determine the azimuth. With
the help of an excellent optical projection system,the operator can easily and
precisely observe the ship's heading in wheelhouse.
It can be conveniently mounted on the compass desk(the top of wheelhouse),the
optical cylinder within the binnacle can stretch into the wheelhouse through
the base of binnacle.Partial image of the car of compass bowl can be displayed
on the plane mirror at the end of the optical cylinder.
The compass is designed to meet the technical requirements of GB/T14108-93 and
ISO-449 standards referring Class A magnetic compass.
Characteristics:
Good in performance and high in reliablility.
Used as a standard compass, also a steering compass.
Optical cylinder can be adjusted along with its axis and rotated about its
axis,then conveniently observed by operator.
Illumination projection system can be adjusted in wheelhouse.
On the glass of the compass bowl is mounted a location block on which can be
mounted various sensors for interfacing with an autopilot.
Standard Construction:
Compass bowl
Binnacle
Helmet
Optical cylinder
Reflector divice
Illumination adjustor box
Correcting tools:6.7×30 correcting magnet;correcting sheet for quadranta
deviation;Flinder's bar.
Main Technical Data:
| Card diameter | Φ165mm |
| Card graduations | 0°~365°(1° per graduation) |
| Operating temperature | -30°±60°C |
| Direction error | not more than 0.5° |
| Semi-period(H=34uT at 20±3°C) | not less than 8.8sec |
| Friction error(H=34uT at 20±3°C) | not more than 0.088° |
| Flexible range of optical cylinder | ±50mm |
| Enlarge factor of card's image | ≈2 |
| Correcting capacity for coefficient B,C(H=34uT) | 0.5°~40° |
| Correcting capacity for coefficient D | 0.5°~10° |
| Correcting capacity for coefficient H | -75uT~+75uT |
| Correcting capacity for Flinder's bar(Q=45°) | not less than 6° |
| Overall dimensions | 446×774×1332mm |
| Total weight of the compass | 68kg |
| Cylinder Length | 455mm,700mm,1000mm,and for selevtion to adapt to the different deck hight. The other length is also available on request. |
