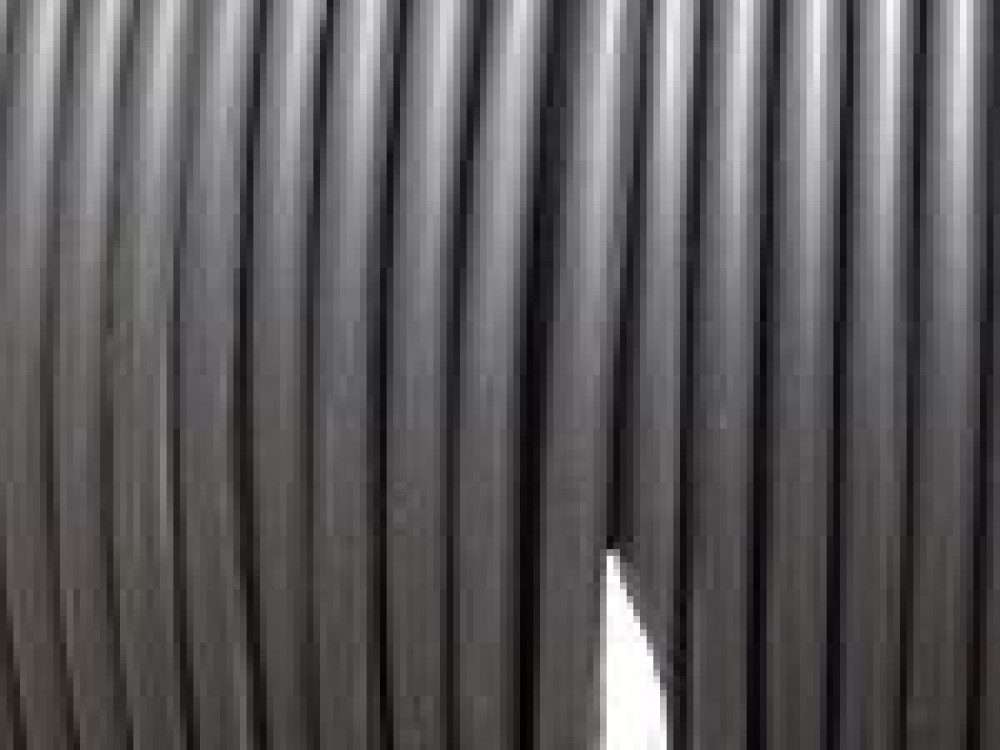

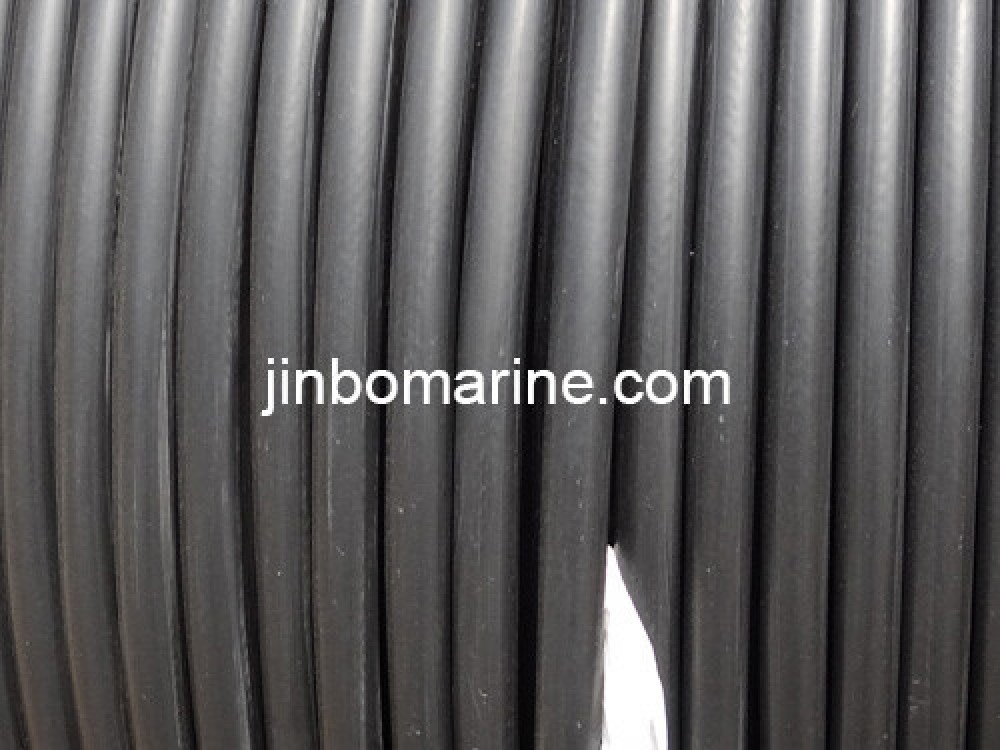

CJ96/SC Flame Retardant Marine Power & Lighting Cable 0/6/1KV(Armoured)

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CJ96/SC Flame Retardant Marine Power & Lighting Cable 0/6/1KV(Armoured):

CJ96/SC Cable is Galvanized Steel Wire Braided Cable, 0.6/1KV, all material have been inspected before use.

Cable Construction

Conductor: Tinned Copper. IEC 60228 Class 2

Insulation : XLPE Insulation

Armour :Galvanized Steel Wire Braided

Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)

Standards

Design : IEC 60092-350, 353

Insulation Material : IEC 60092 -351

Sheath Material : IEC 60092-359

Flame Retardant: IEC 60332-1 & IEC 60332-3 Category A

Halogen--free: IEC60754-1, IEC60754-2

Smoke Emission: IEC 61034-1, IEC61034-2

Cores & Size

Cores: 1, 2,3,4,5,7,10,12,14,16,19,24,37

Size (sqmm): 1.5, 2.5. 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300

Shipment:

We can delivery the goods all around the world by sea or air according to Incoterms 2010.
