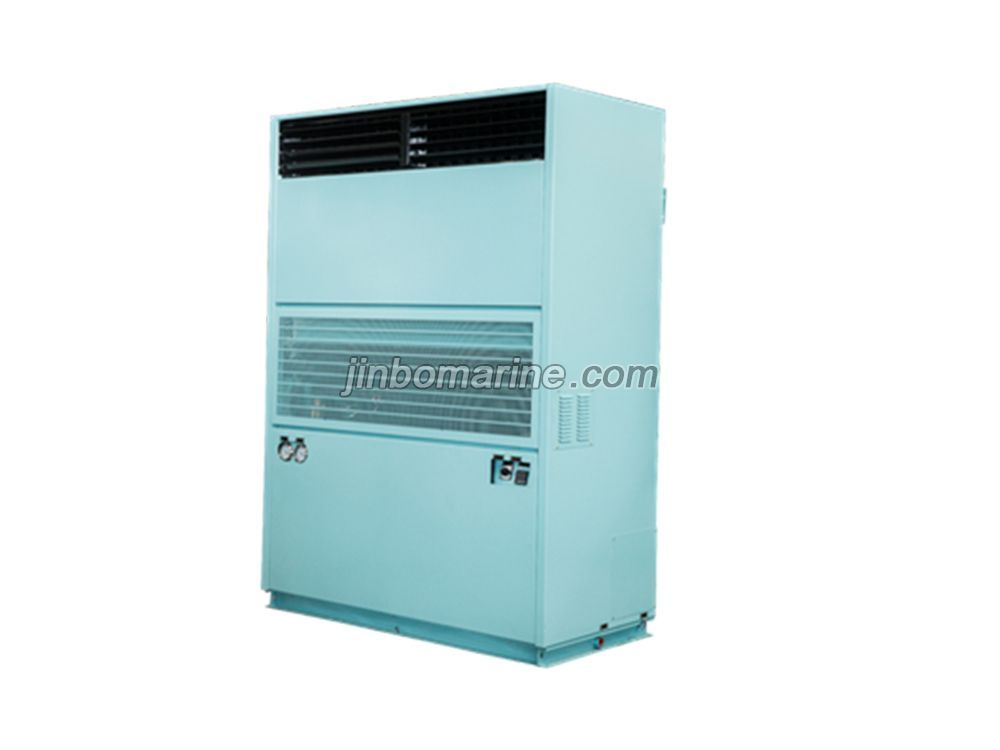

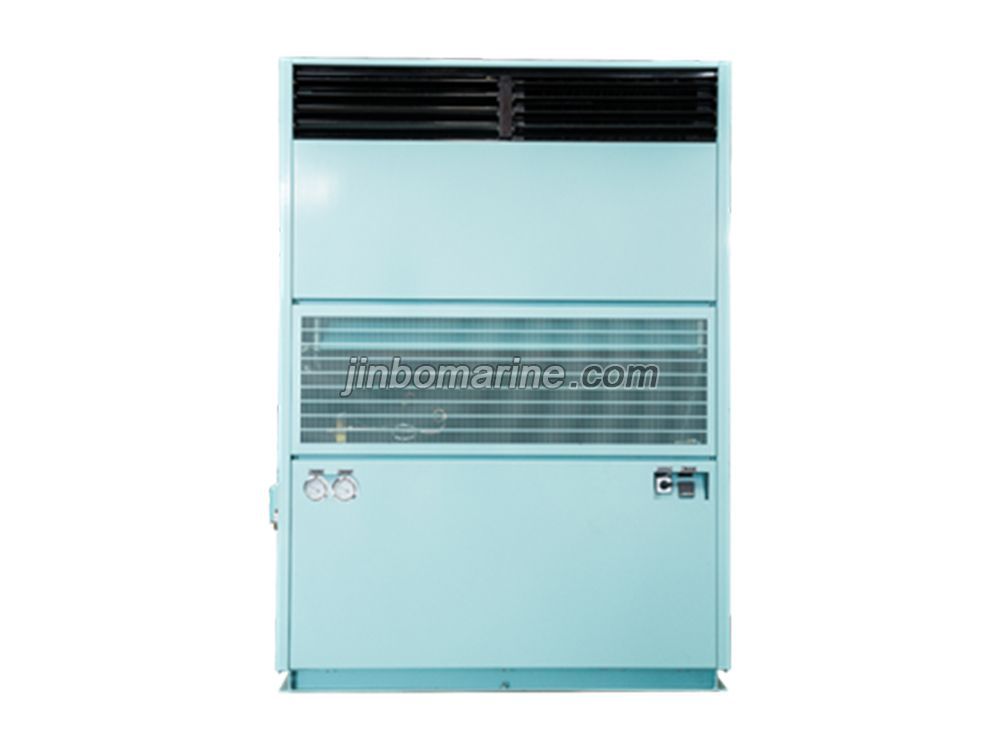

CLD Type Marine Cabinet Air Conditioner

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

CLD type marine cabinet air conditioner is a direct evaporation type water-cooled air conditioner consists of cooling compressor, condenser, drier-filter, air cooler, fan ,air filter, auto-control element, electric elements and electric duct nearer etc.

ALL components of this unit are already assembled by the manufacturer, also pressure test and vacuum test for cooling system are already done. Sufficient amount of R404A gas is filled in.

Technical Data:

Type CL(D)-4A CL(D)-5A CL(D)-6A CL(D)-7A CL(D)-8A CL(D)-9A CL(D)-10A CL(D)-12A CL(D)-15A CL(D)-20A CL(D)-25A
Cooling capacity Kcal/h 4000 5000 6000 7000 8000 9000 10000 12000 15000 20000 2500
Compressor motor power KW 1.5 2 2.2 2.6 3 3.6 3.6 4 5.5 7 10
Refrigerating medium R22(R314a,R404A,R407c)
Electric Heating capacity 2.4 3 3.6 4.8 4.8 6 6 7.2 9 12 20
Air flow m3/h 800 1000 1200 1400 1600 1800 2000 2400 3000 4000 5000
Fan motor power 0.09 0.09 0.09 0.18 0.18 0.25 0.25 0.25 0.55 0.8 1.8
Cooling water flow m3/h 1.5 2 2.2 2.6 3 3.6 3.6 4 5.5 7 10
Cooling water Medium ≤32℃ sea water ≤36℃ fresh water
Cooling water press.drop ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤30 ≤50 ≤50
Protection HV. LV. Water pressure, over load,
electric heating over-temp. safety valve, power supply faults
Power supply AC380V 3Ph 50Hz/AC440V 3Ph 60Hz
Weight 175 185 195 205 215 250 260 300 320 360 400
