CLN-105 ​Marine Condensing Units

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Description:

CLN-105 Marine condensing units are to provide refrigerant liquid for direct end device of air conditioning system. The unit has features of new-design, easy-operation, stable-working, safety and convenient-maintaining etc. they have widely applied for all kinds of passenger ships, cargo ships and oil platforms etc.

Mainly composed by compressor, condenser and control box etc.

Pressure test, vacuum test and running test have been done before delivery.

Match with proper direct end device to form an integral system.

Special design and manufacture can be done upon user’s requirement.

Technical Data:

Item CLN-23 CLN-35 CLN-46 CLN-58 CLN-70 CLN-82
Cooling capacity KW 23 35 46 58 70 82
Cooling medium R22(R134a, R404A, R407C)
Power supply main circuit AC380V 3P 50HZ/AC 440V 3P 60HZ
control circuit AC220V 1P 50HZ/AC 220V 1P 60HZ
Protection device High pressure, low pressure,oil pressure, water stop, lack phase, overload and safety valve
Copressor Type Hermetic or semi-hermetic compressor
Energy regulation % / 0,50,100 or(0,66,100)
motor power KW 42 66 90 15 19 22
Condensor type Horizontal sheel&tube
water inlet temp ℃ ≦36
water flow m3/h 3 7 10 13.5 17 20
water pressure loss kPa ≦50 ≦70
weight kg 680 900 1000 1000 1100 1200
Item CLN-93 CLN-105 CLN-116 CLN-140 CLN-151 CLN-175
Cooling capacity KW 93 105 116 140 151 175
Cooling medium R22(R134a, R404A, R407C)
Power supply main circuit AC380V 3P 50HZ/AC 440V 3P 60HZ
control circuit AC220V 1P 50HZ/AC 220V 1P 60HZ
Protection device High pressure, low pressure,oil pressure, water stop, lack phase, overload and safety valve
Compressor Type Hermetic or semi-hermetic compressor
Energy regulation % / 0,50,100 or(0,66,100)
motor power KW 24 26 30 37 2x22 2x24
Condensor type Horizontal sheel&tube
water inlet temp ℃ ≤36
water flow m3/h 27 30 35 40 45 50
water pressure loss kPa ≤80
weight kg 1300 1350 1450 1580 1850 1950
Item CLN-186 CLN-198 CLN-230 CLN-256 CLN-267 CLN-302
Cooling capacity KW 186 198 230 256 267 302
Cooling medium R22(R134a, R404A, R407C)
Power supply main circuit AC380V 3P 50HZ/AC 440V 3P 60HZ
control circuit AC220V 1P 50HZ/AC 220V 1P 60HZ
Protection device High pressure, low pressure,oil pressure, water stop, lack phase, overload and safety valve
Compressor Type Hermetic or semi-hermetic compressor
Energy regulation % 0,50,75,100 or(0,50,66,100)
motor power KW 2x24 2x26 2x30 2x33 2x37 2x40.5
Condensor type Horizontal sheel&tube
water inlet temp ℃ ≤36
water flow m3/h 52 55 65 72 80 95
water pressure loss kPa ≤80
weight kg 2100 2150 2200 2250 2550 2750

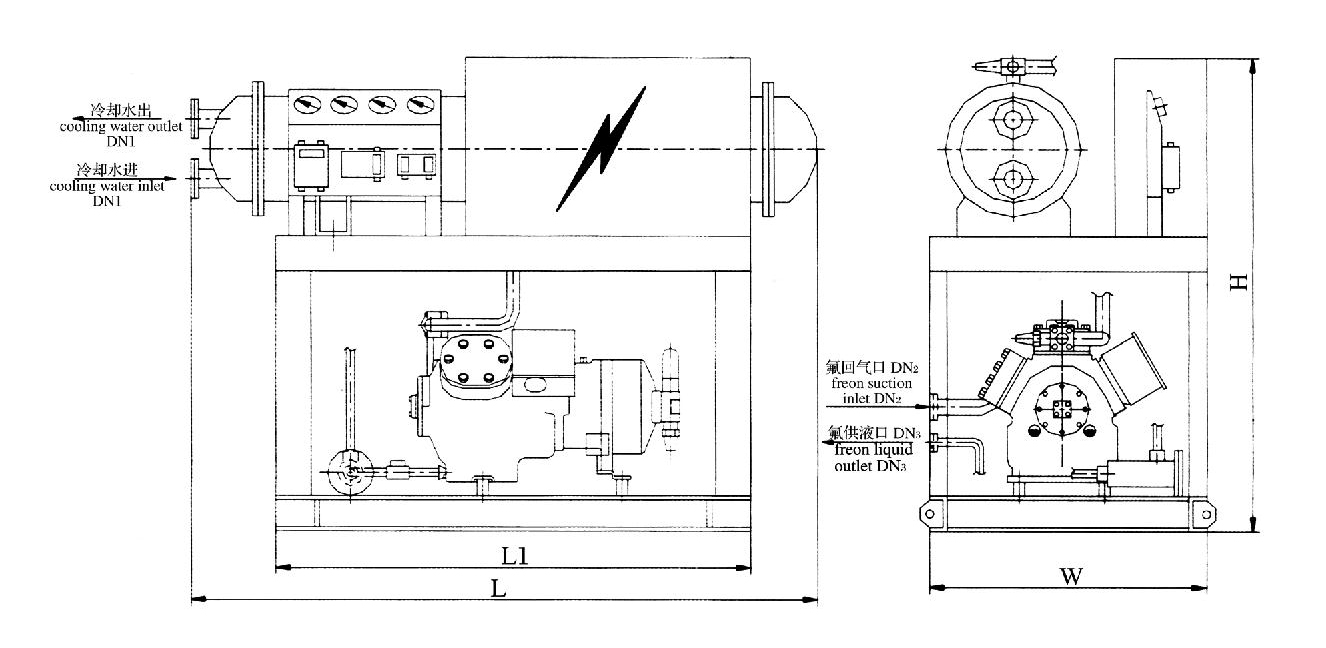

Dimension:

Model L W H L1 DN1 DN2 DN3
CLN-23 1250 700 1450 820 32 25 13
CLN-35 1550 700 1450 950 40 32 13
CLN-46 1550 750 1500 980 50 40 16
CLN-58 1880 750 1500 1100 50 40 19
CLN-70 1800 750 1500 1250 50 50 19
CLN-82 1850 850 1600 1100 65 50 19
CLN-93 1850 850 1600 1100 65 50 19
CLN-105 1850 850 1600 1100 65 50 19
CLN-116 1850 850 1750 1100 65 50 19
CLN-140 1850 900 1750 1350 80 50 19

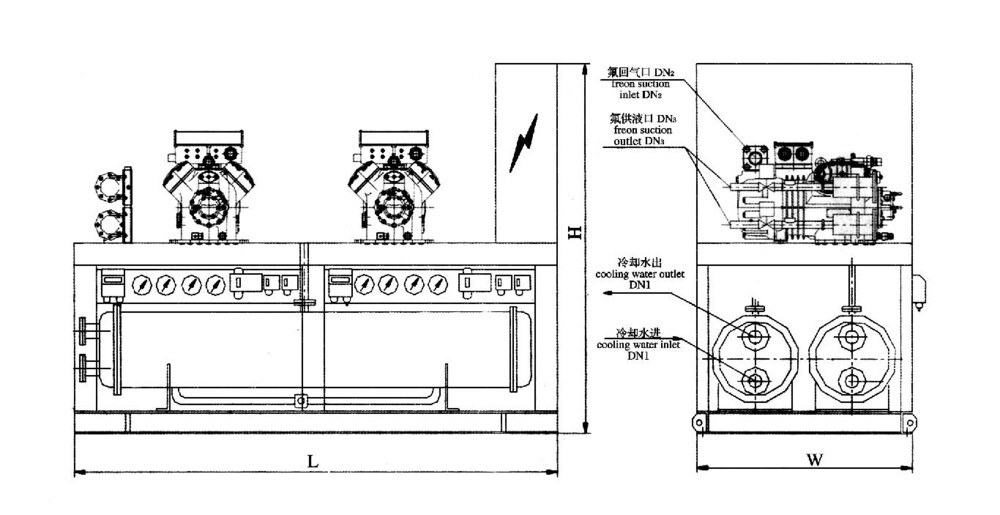

Model L W H DN1 DN2 DN3
CLN-151 2050 980 1700 2-DN65 2-DN50 2-DN19
CLN-175 2050 980 1800 2-DN65 2-DN50 2-DN19
CLN-186 2150 980 1800 2-DN65 2-DN50 2-DN19
CLN-198 2150 1080 1800 2-DN65 2-DN50 2-DN19
CLN-230 2350 1150 1800 2-DN65 2-DN50 2-DN19
CLN-256 2350 1150 1920 2-DN80 2-DN50 2-DN25
CLN-267 1480 1250 1920 2-DN80 2-DN50 2-DN25
CLN-302 2580 1350 1980 2-DN100 2-DN50 2-DN25
