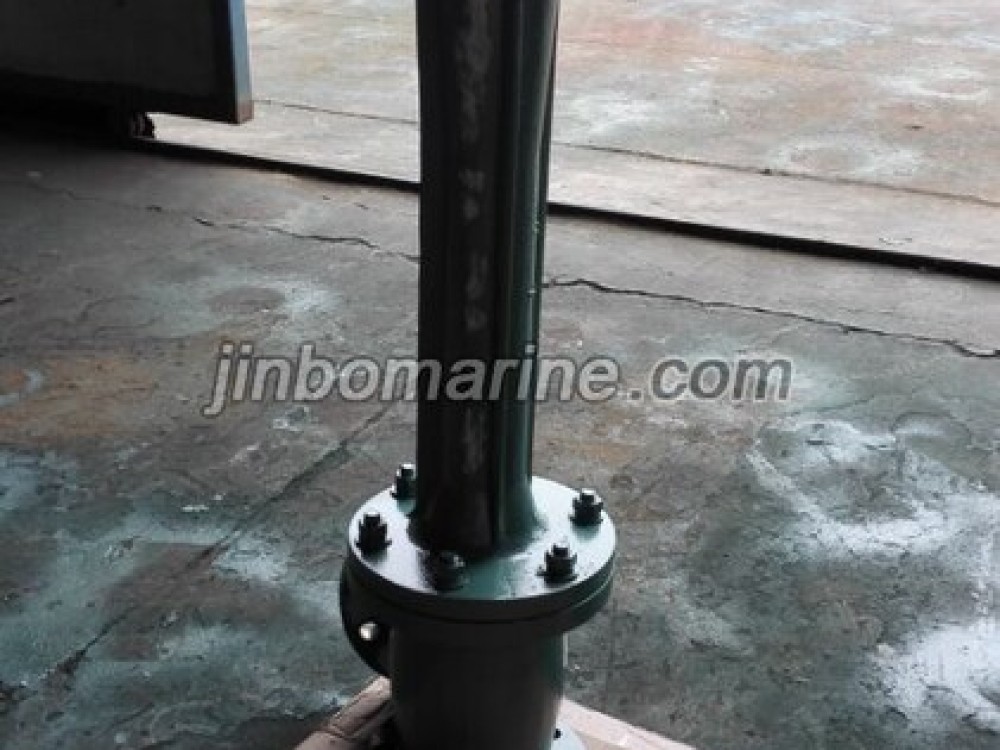

CPJ Series Marine Injection Pump
- Category:Other Marine Pump
- Material:Cast steel,Stainless steel
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CPJ Series Marine Injection Pump:
CPJ series marine injection pump
General description
CPJ type jet pump inlet, outlet and nozzle are on the same axis,have high efficienay, easy installationHas a self-priming performance,can work continuously steadily,No moving parts, long service life.Hydrophobic system is mainly used in ships, also can be used for environmental protection, chemical industry, water conservancy, building materials, etc, for sea water, mixed liquid, river dredging, conveying powder, etc
Type explanation
For the type CPJ40-50-65
- CP stand for marine injector
- J stand for working nozzle figure
- 40 stand for working water pipe diameter -mm
- 50 stand for inlet diameter-mm
- 65 stand for outlet diameter-mm

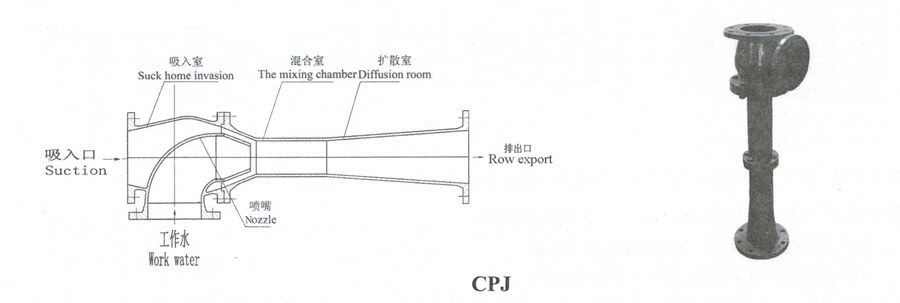

Structural Specifications
Performance prarmeter
| Type | Capacity | suc'head | working pressure | water consumption | Delivery-pressure |
|
|
m3/h | m | mpa | m3/h | Mpa |
| CPJ40-50-65 | 10 | 5 | 1.2 | 15 | 0.25 |
| CPJ50-80-80 | 30 | 3 | 0.8 | 30 | 0.12 |
| CPJ80-100-100 | 70 | 3 | 0.7 | 56 | 0.1 |
| CPJ100-100-125 | 50 | 2.5 | 0.6 | 115 | 0.22 |
| CPJ100-125-125 | 100 | 3 | 1 | 110 | 0.2 |
| CPJ100-150-150 | 120 | 3 | 1 | 120 | 0.2 |
| CPJ125-150-150 | 130 | 5 | 0.9 | 320 | 0.3 |
| CPJ125-150-200 | 100 | 7 | 0.7 | 150 | 0.12 |
| CPJ125-200-200 | 130 | 5 | 1 | 250 | 0.3 |
| CPJ150-200-200 | 300 | 4 | 1.25 | 400 | 0.25 |
| CPJ150-200-250 | 300 | 5 | 1.15 | 470 | 0.25 |
| CPJ200-200-250 | 170 | 5 | 0.25 | 600 | 0.1 |
| CPJ200-250-300 | 600 | 4 | 1.2 | 340 | 0.1 |
| CPJ250-250-300 | 250 | 4 | 0.3 | 1050 | 0.15 |
| CPJ250-300-350 | 630 | 5 | 1.3 | 750 | 0.25 |
| CPJ300-300-350 | 400 | 5 | 0.3 | 1750 | 0.15 |
