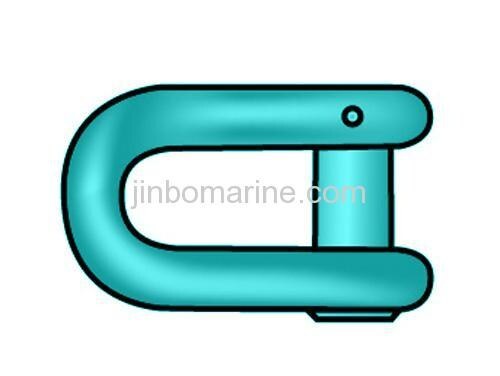

Crown Shackle

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Crown Shackle:

Crown Shackle also called Anchor Shackle, used to connect anchor shank and anchor chains.

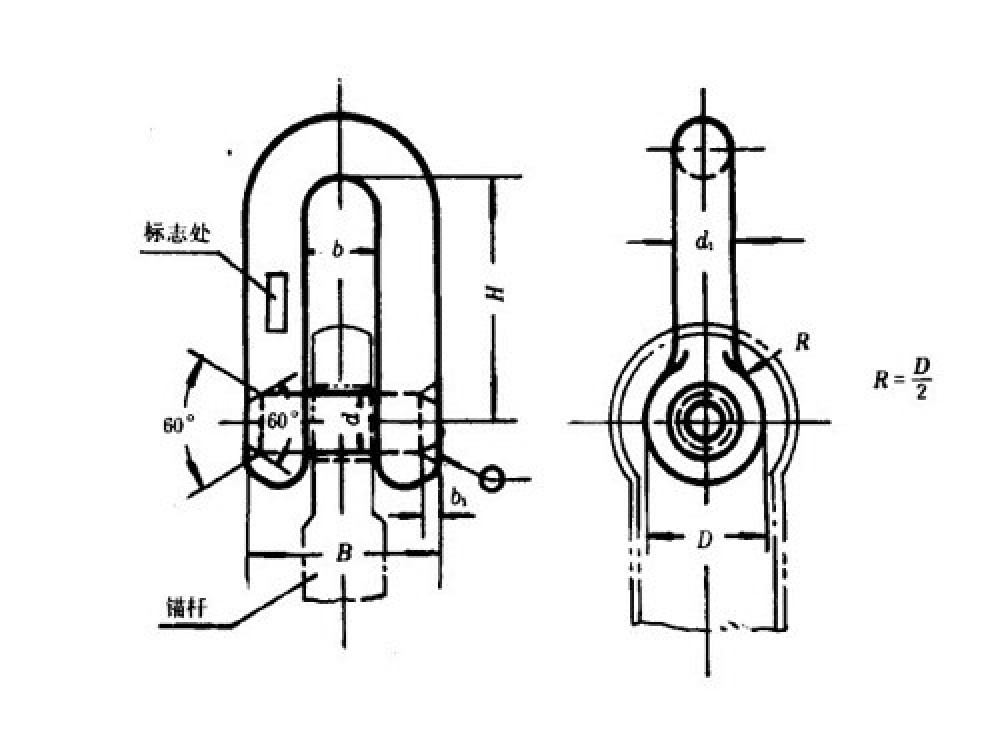

Main Specification

Anchor Type B(mm) b(mm) b1(mm) D(mm) d(mm) d1(mm) H(mm) Shackle Weight(kg) Anchor Weight(kg)
a1 49 21 4 35 16 14 60 0.40 15
a2 57 25 4 40 19 16 72 0.63 20
a3 70 30 5 45 22 20 84 1.01 30
a4 78 34 5 50 26 22 98 143.00 50
a5 85 37 6 60 30 24 115 2.10 100
a6 98 42 7 68 34 28 130 3.20 150
a7 110 46 8 75 36 32 145 4.50 200
a8 122 50 9 80 40 36 160 6.00 250
a9 136 56 10 90 45 40 175 8.30 360
a10 151 61 11 100 52 45 192 11.50 450
a11 163 67 12 110 55 48 215 14.70 600
a12 174 74 13 120 60 50 235 17.80 800
a13 200 80 14 130 65 60 255 26.30 1,020
a14 215 91 15 156 75 62 280 35.00 1,500
a15 236 100 17 174 80 68 310 46.80 2,000
a16 256 108 19 190 90 74 340 60.70 3,000
a17 279 115 20 210 100 82 380 80.80 3,060
a18 284 120 20 210 100 82 385 82.80 3,540
a19 305 125 22 230 110 90 410 106.00 4,050
a20 310 130 22 230 110 90 410 109.00 4,500
a21 335 135 25 250 120 100 415 139.00 5,000
a22 343 143 25 20 120 100 450 144.60 6,000
a23 370 150 27 270 130 110 480 192.00 7,000
a24 377 157 27 280 130 110 500 196.30 8,000
a25 391 163 30 300 138 117 540 238.60 9,000
a26 418 170 30 310 145 124 580 280.00 10,000
a27 437 177 32 320 150 135 600 314.00 11,100
a28 452 182 32 335 155 135 620 353.00 12,300
a29 468 188 34 345 160 140 640 390.00 13,500
a30 483 193 34 355 165 145 660 430.00 14,700
a31 498 198 36 365 170 150 680 471.00 16,100
a32 515 205 36 380 175 155 700 523.00 17,800
a33 534 214 38 395 185 160 730 584.00 20,000
a34 564 224 38 410 190 170 770 679.00 23,000
a35 594 234 40 430 200 180 800 791.00 26,000
a36 611 241 40 445 205 185 820 863.00 29,000
a37 626 246 42 455 210 190 850 934.00 31,000
a38 642 252 42 465 215 195 860 999.00 33,000
a39 657 257 44 475 220 200 880 1,072.00 35,500
a40 674 264 44 490 225 205 910 1,165.00 38,500
a41 692 272 46 510 235 210 940 1,279.00 42,000
a42 720 280 46 520 240 220 960 1,412.00 46,000
