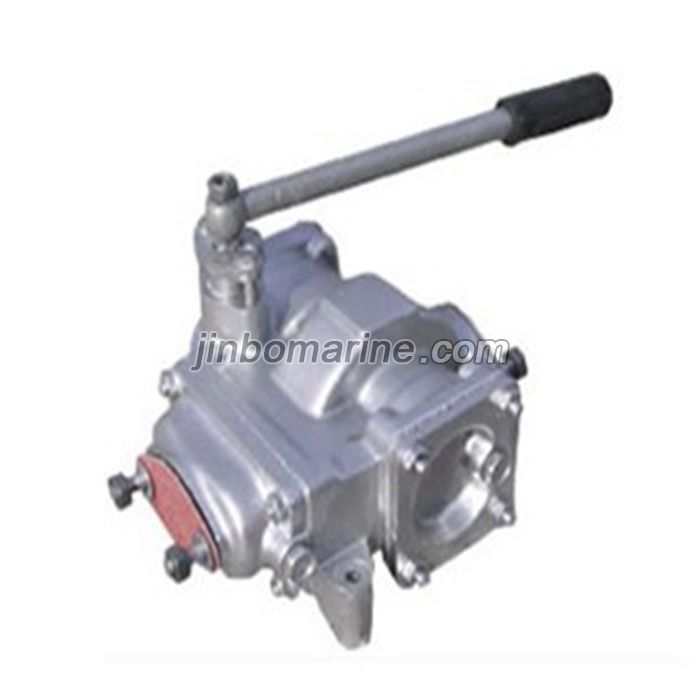

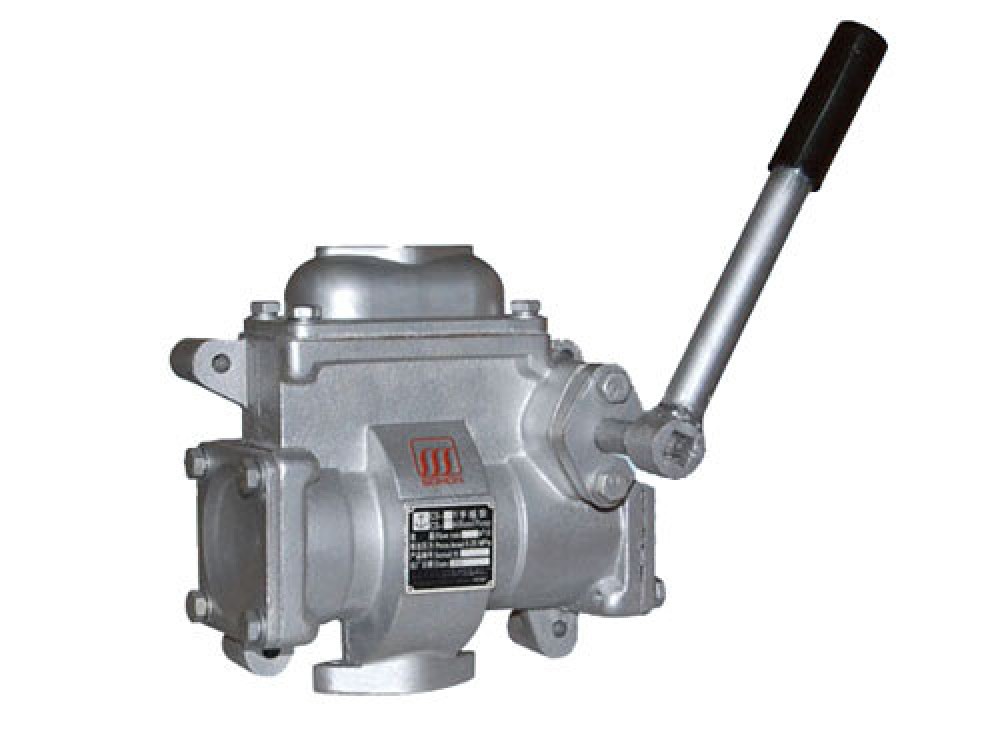

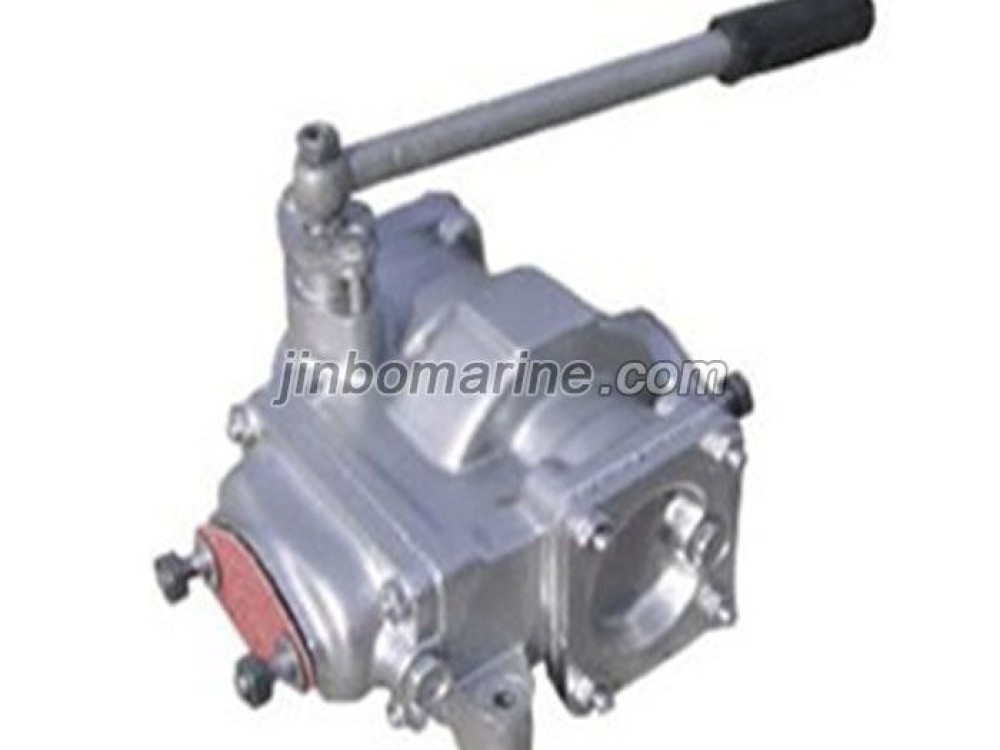

CS Series Hand Piston Pump Marine hand pump
- Category:Hand Pump
- Material:Iron or Copper Alloy
- Standards:standard
- Certificate:CCS
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Marine Hand Pump.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
CS Series Hand Piston Pump
General
Hand piston pump is suitable for various shipping pumping excluding hard particle or fiber of freshwater and seawater, and lubricant, oil, and other lubrication oils. This pump can be used in human engineering, fire, well water, kitchen sewage oil-water, transport department and so on the different places. Temperature of medium transported not to exceed 60℃.
Model Explanation CS-20Y/H
- C-Marine use
- S-Hand pump
- 20-Inlet and outlet diameter 20mm
- Y/H-Iron cylinder or copper alloy
- CS-20Y(S-20)-Applicable to pumping oil or water
- CS-20H(SH-20)-Applicable to fresh water and sea water

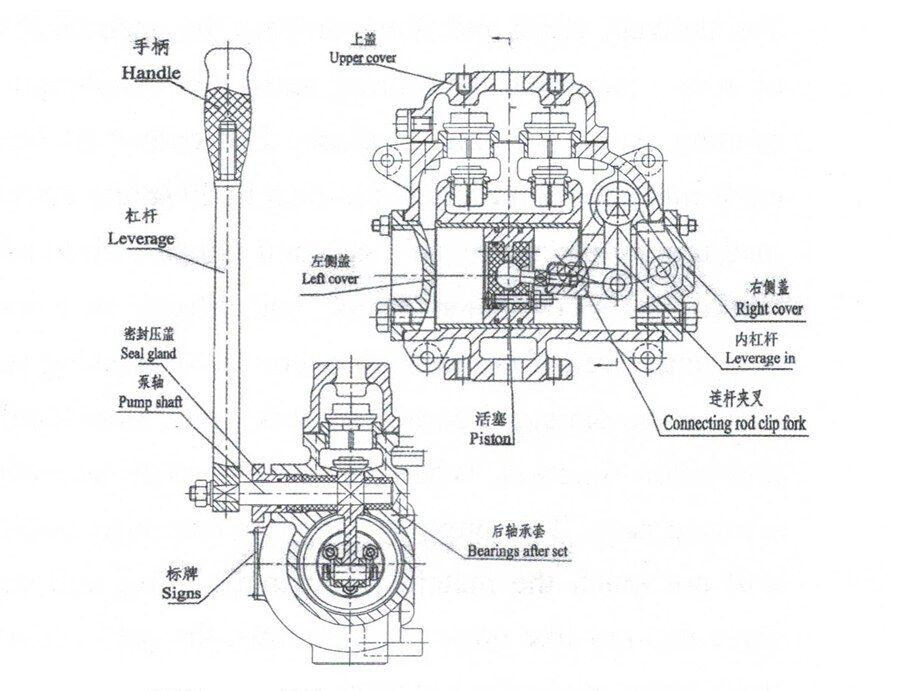

Structural Specifications
Main Specification
| Name | Unit | Type | |||
| CS-20Y/H | CS-25Y/H | CS-32Y/H | CS-40Y/H | ||
| S(SH)-20 | S(SH)-25 | S(SH)-32 | S(SH)-40 | ||
| Capacity | L/min | 20 | 32 | 48 | 65 |
| Delivery head | MPa | 0.25-0.3 | 0.25-0.3 | 0.25-0.3 | 0.25-03 |
| Suction vacuum height | MPa | 0.06 | 0.06 | 0.06 | 0.06 |
| Cylinder diameter | mm | 65 | 75 | 88 | 95 |
| Piston stroke | mm | 68 | 80 | 90 | 96 |
| Reciprocating times | Times/min | 50 | 50 | 50 | 50 |
| Weight | kg | 5.8 | 7.5 | 10.5 | 12 |
Pump size
| Type | CS-20 | CS-25 | CS-32 |
| A | 180 | 205 | 225 |
| B | 152 | 180 | 220 |
| C | 63 | 70 | 81 |
| D | 213 | 220 | 249 |
| E | 134 | 150 | 165 |
