CSKX control box for quick closing valves

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

CSKX series control box for quick closing valve is a remote control plant, which is suitable for fuel oil tank, lubricating oil tank and daily supplying fuel oil tank of ship. Under the urgent condition of a fire, the product can shut off oil circuits and prevent the fire from spreading.

The control box is a Built-in installation form, so it installs convenient and have a long service life.

Principle Description:

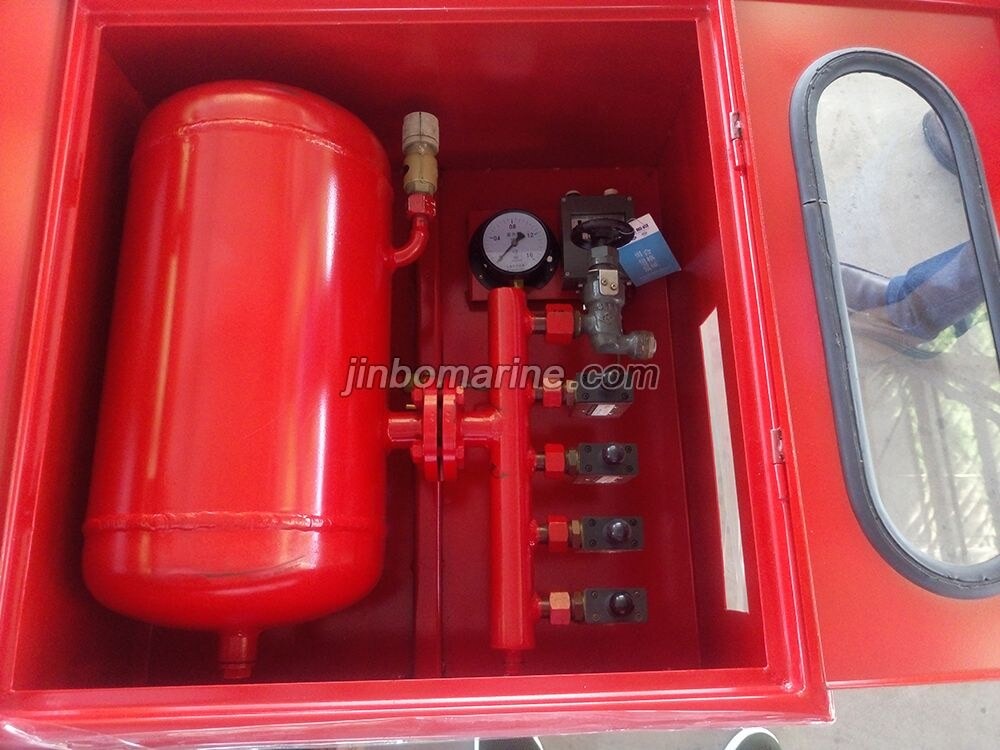

The air source is input to the air vessel of control-box. And the air in the vessel is divided into several ways by distributor. In case of emergency, it can quickly open the two-position three chunnel valve; The piston of air-driven quick-acting valve on the oil transferring pipe will be closed by air. After a fire, the two-position three chunnel valve resumes its normal position. And the air-driven quick-acting valve automatically reset its seat

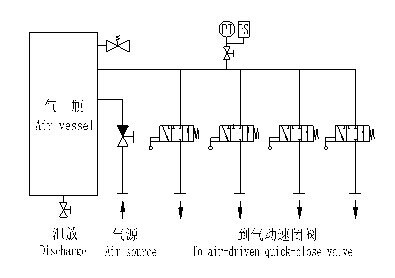

System Principle Drawing:

Technical Data:

Type Air VesselVolume
L
Control Way Inlet Press.
MPa
Outlet Press.
MPa
Outline Dimension
L×B×H mm
Weight
kg
CSKX-40IV 40 4 0.7 0.7 850×370×850 130
CSKX-50V 50 5 850×370×900 150
CSKX-60VI 60 6 900×400×950 200
CSKX-70VII 70 7 950×450×980 230
CSKX-80VIII 80 8 950×450×1050 250
CSKX-100IX 100 10 1000×500×1050 265
