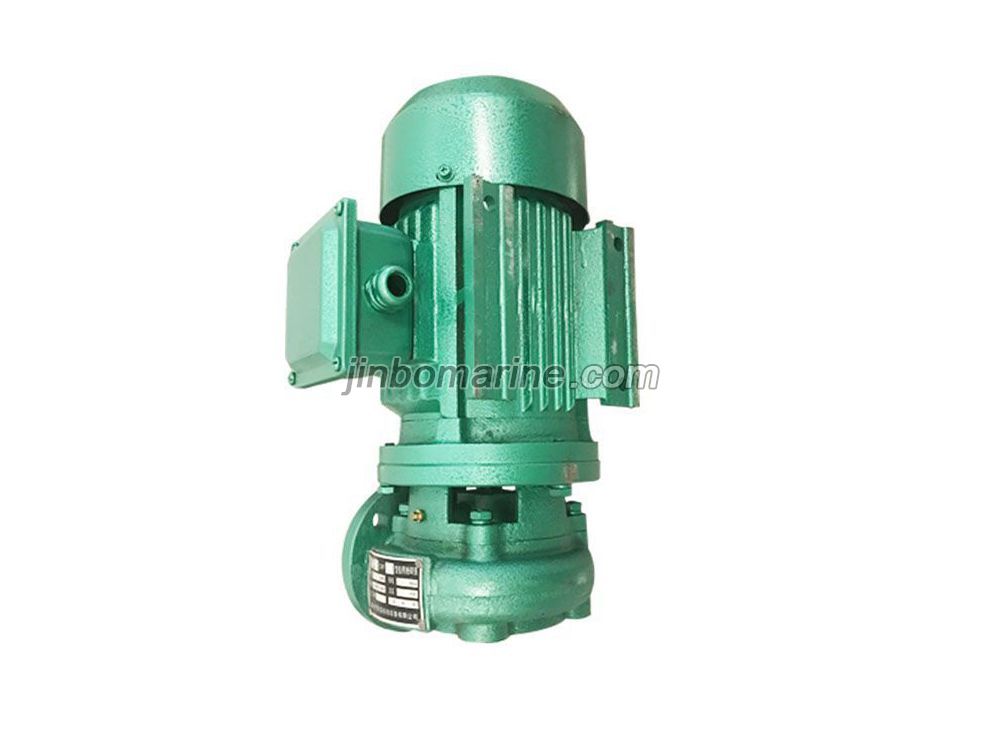

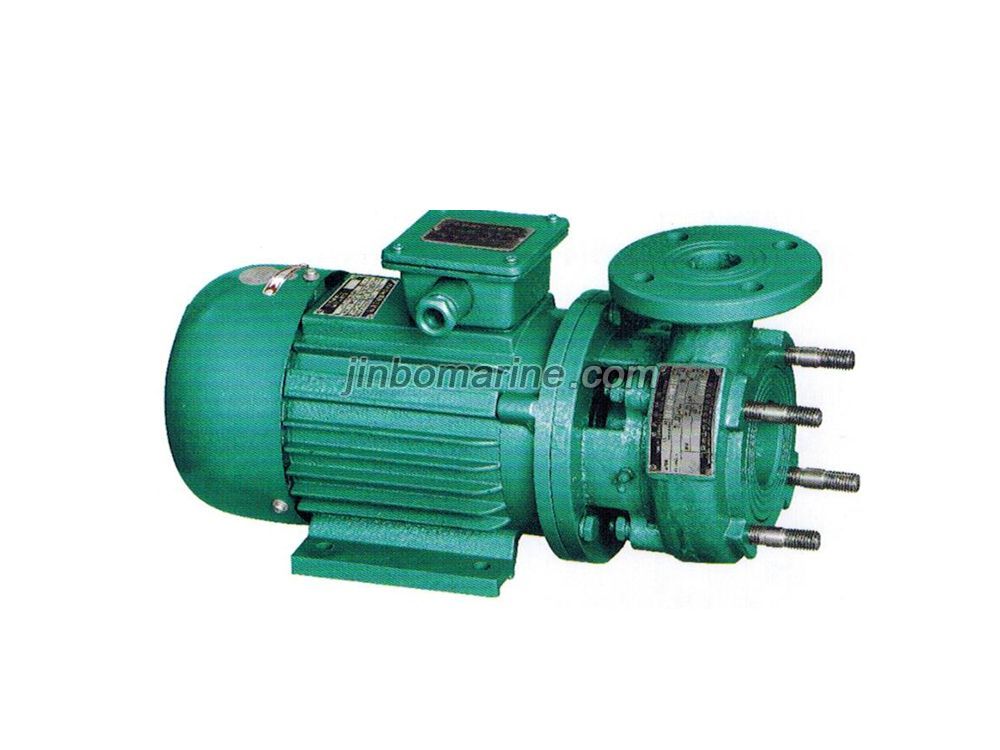

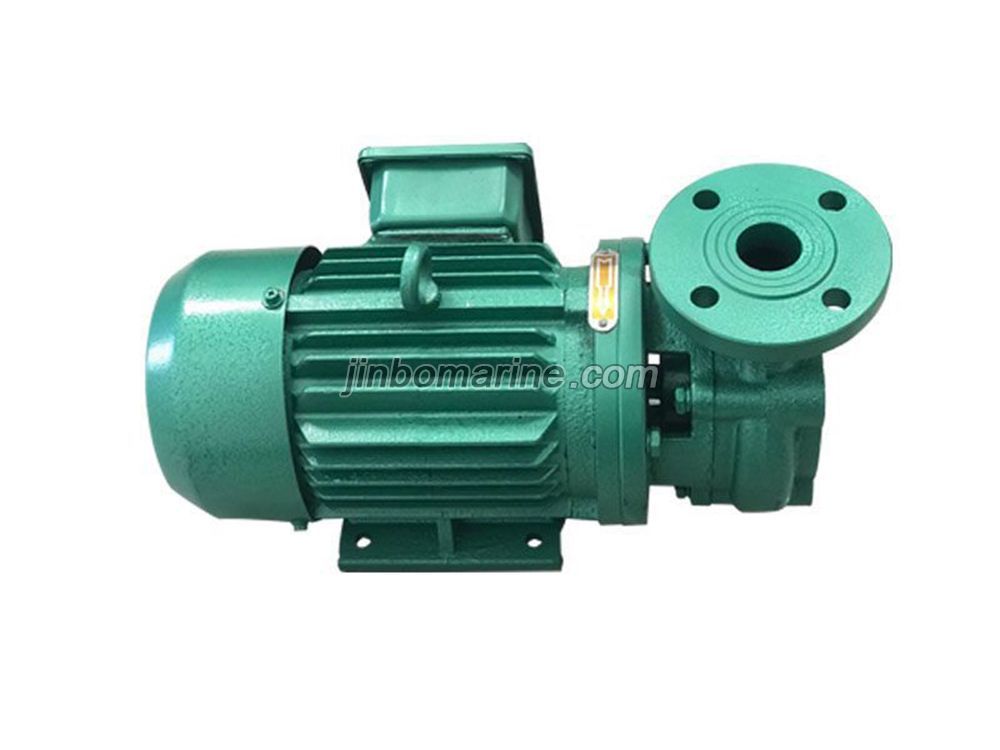

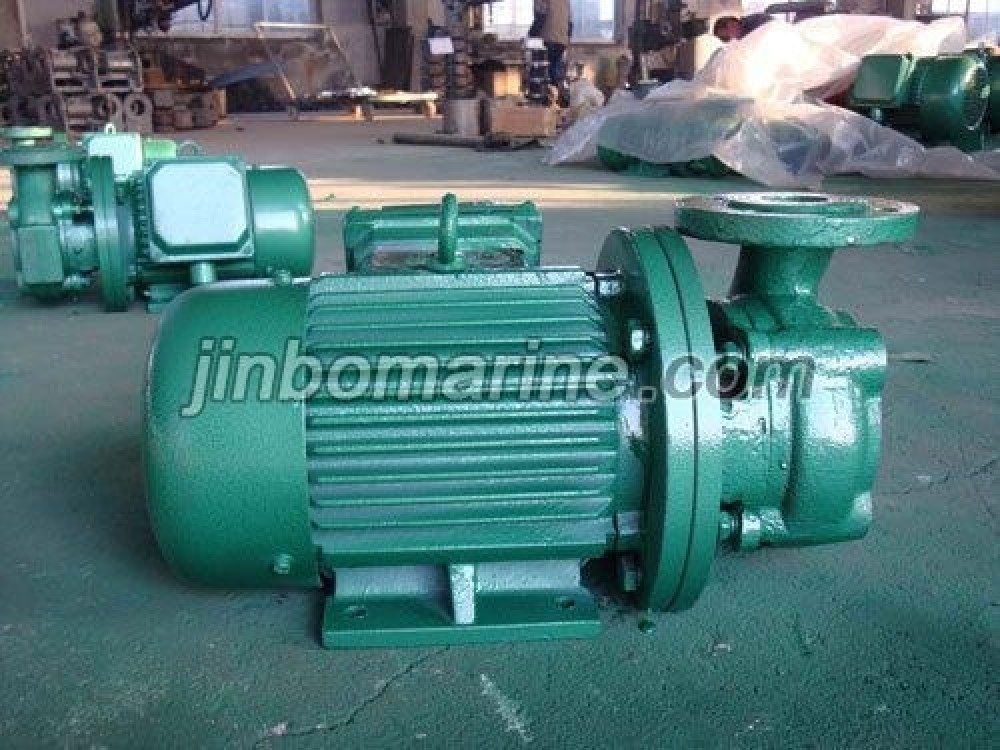

CWF Series Marine Pulverizing pump
- Category:Crushing Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
General description：
CWF series marine pulverizing pump is the open impeller centrifugal discharge pump which is used to pulverize and transfer the soft foul in the sanitary sewage under 85 degree. The maximum diameter of solid particle after circular pulverizing is within 5 mm. It is also applicable to pulverize the coagulate of heavy oil under low temperature.

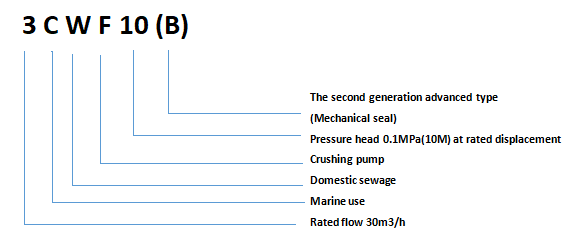

Symbols Meaning：
Pump Parameter：
| TYPE |
Flowrale m3/h |
Pressure MPa |
Pump Power kw |
Intel Pipe Diameter mm |
Outl Pipe Diameter mm |
| 0.1CWF-5(B) | 1 | 0.05 | 0.18 | 40 | 25 |
| 0.5CWF-6(B) | 5 | 0.06 | 0.75 | 50 | 32 |
| 0.5CWF-10(B) | 5 | 0.1 | 1.1 | 50 | 32 |
| 0.5CWF-15(B) | 5 | 0.15 | 1.1 | 50 | 32 |
| 0.5CWF-20(B) | 5 | 0.2 | 1.5 | 50 | 32 |
| 0.5CWF-30(B) | 5 | 0.3 | 3 | 50 | 32 |
| 1CWF-11(B) | 10 | 0.11 | 1.5 | 65 | 32 |
| 1CWF-20(B) | 10 | 0.2 | 3 | 65 | 40 |
| 1CWF-30(B) | 10 | 0.3 | 4 | 65 | 40 |
| 1CWF-30(ZL) | 10 | 0.3 | 5.5 | 65 | 50 |
| 1.5CWF-35(ZL) | 15 | 0.35 | 7.5 | 65 | 50 |
| 1CWF-40(B) | 10 | 0.4 | 7.5 | 65 | 40 |
| 2CWF-11(B) | 20 | 0.11 | 2.2 | 65 | 50 |
| 2CWF-20(B) | 20 | 0.2 | 3 | 65 | 50 |
| 2CWF-30(B) | 20 | 0.3 | 5.5 | 65 | 50 |
| 2CWF-30(ZL) | 20 | 0.3 | 7.5 | 65 | 65 |
| 3CWF-10(B) | 30 | 0.1 | 4 | 65 | 50 |
| 3CWF-30(ZL) | 30 | 0.3 | 11 | 80 | 65 |
| 5CWF-35(ZL) | 50 | 0.35 | 15 | 80 | 80 |
