CY2 15 ppm Bilge Alarm
- Category:Marine Conservation
- Certificate:CCS
- Delivery Time:2 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

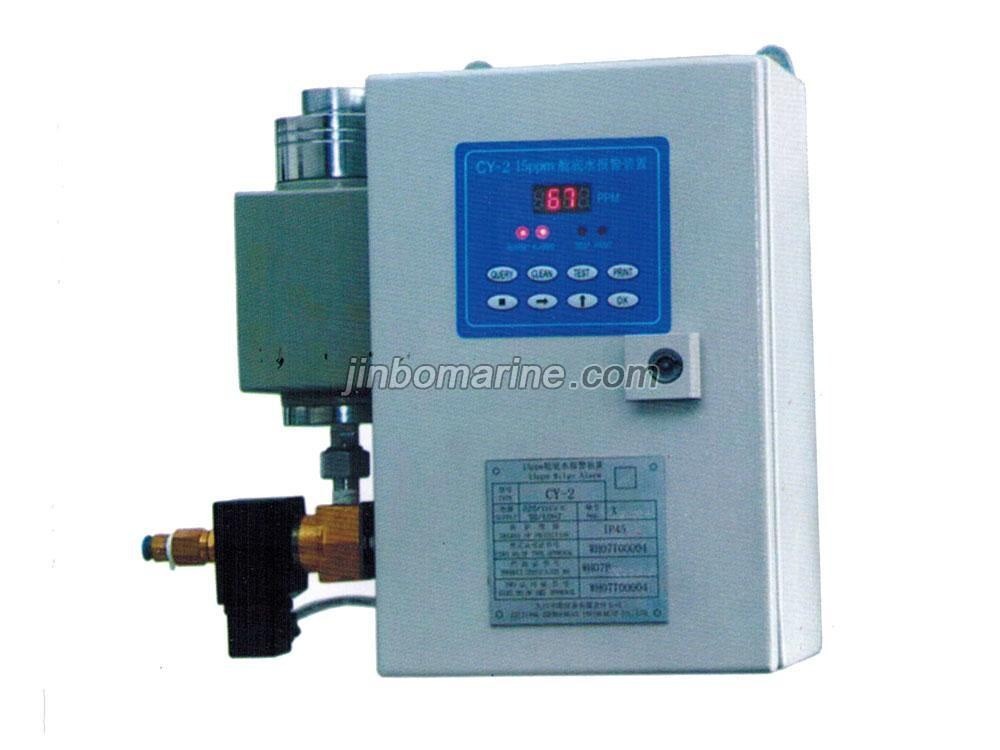

China CY2 15 ppm Bilge Alarm:
15ppm Bilge Alarm is an important part for bilge water separation system, mainly used to
continuously monitor oily wastewater in bilge as well as chemical industry, oil field and environmental
protection and others, with followed function and characteristics, result display, audio-visual alarm when
the oily waste water is more than 15ppm, oily wasterwater discharge control, 15ppm oil-water separator

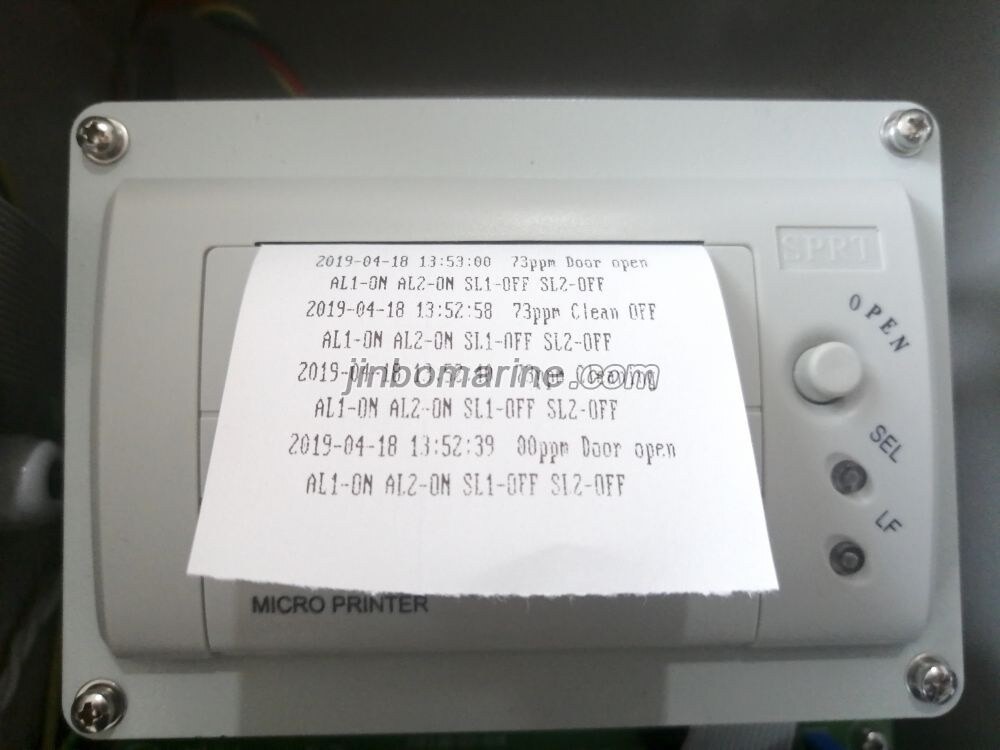

working station display, printer for history storage and track.
The device is approvaled by CCS in accordance with the latest requirement of MARPOL 73/78
Revised Annex I and MEPC 107(49).

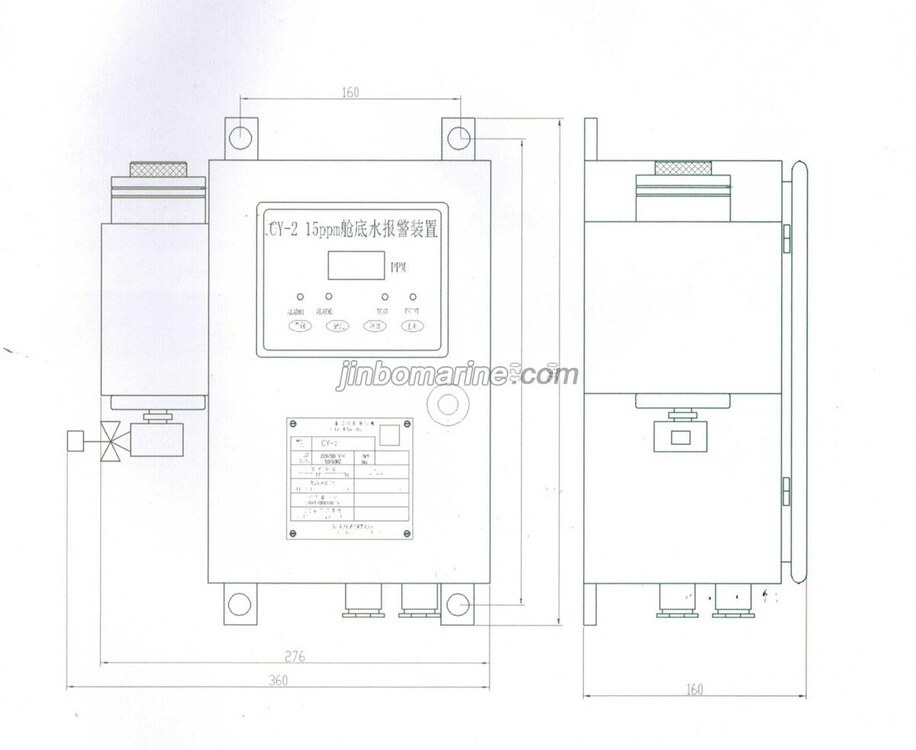

Installation Size
Main Specification:
| Measuring range | 0-30ppm (display range 0-80ppm) |
| Measurement precision | (15ppm alarm) ± 5ppm (meet the IMO standard) |
| Display type | LED numeric display |
| Alarm indication | 4 red LED |
| Alarm relay | 2-way |
| Rated capacity of relay contact | 250VAC 3A (non-emotional) |
| Response time | ≤ 5 seconds |
| Output signal | 4-20mA |
| Environment temperature | 0 °C - 55 °C |
| Relative humidity | ≤ 93% |
| Sample liquid temperature | 1 - 55 °C |
| Sample liquid pressure | 0.1-0.6MPa |
| Sample liquid flow | 0.1-4L / min |
| Protection class | IP55 |
| Main power supply | 220/110VAC 50Hz/60Hz |
| Power Consumption | ≤ 20VA |
| Main power supply | 220/110VAC 50Hz/60Hz |
| Power Consumption | ≤ 20VA |
| Overall dimension | 400mm × 300mm × 160mm |
