D type Rubber Fender

  • Category:Marine Fender
  • Material:Natural Rubber
  • Certificate:BV,CCS,ABS,mill certificate etc.
  • Packing Details:Export standard packaging.
  • Delivery Time:10 to 15 days.
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

China D type Rubber Fender:

Also called as Semicircular fender.

Its weight is lower,very easy to install and replace.

Applicable for frame dock and ships due to its smaller bottom width.

Energy absorption of rubber fender per ton is high, but reaction force is relatively too high (Compress rubber fender has the lowest energy absorption for reaction force per unit.

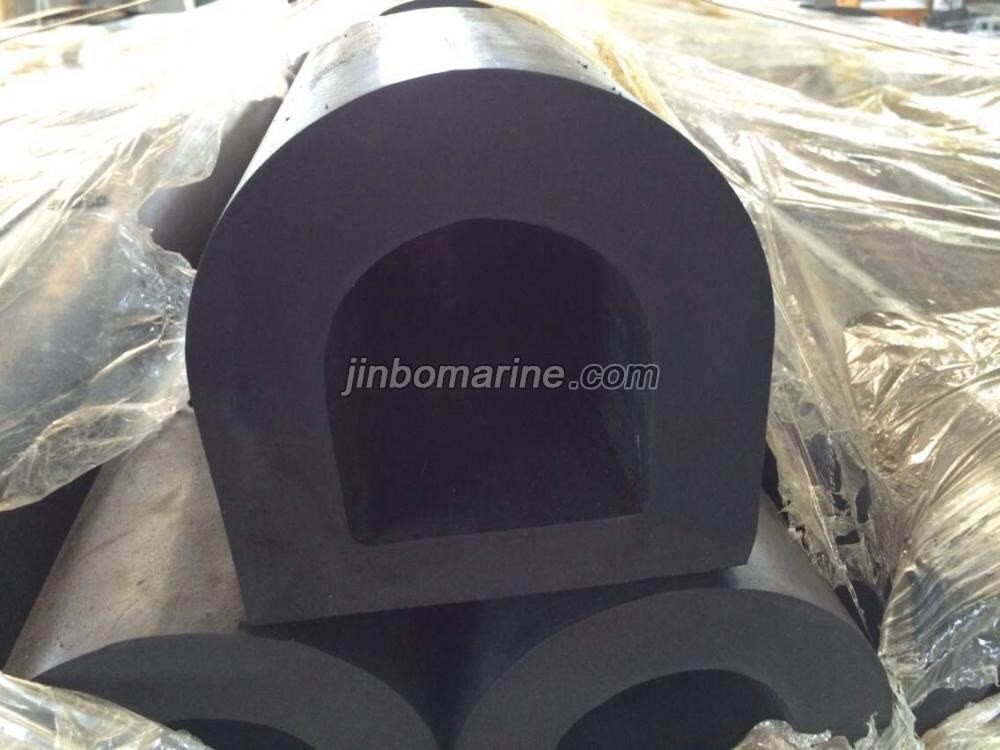

The inner bore can be D type or O shape.

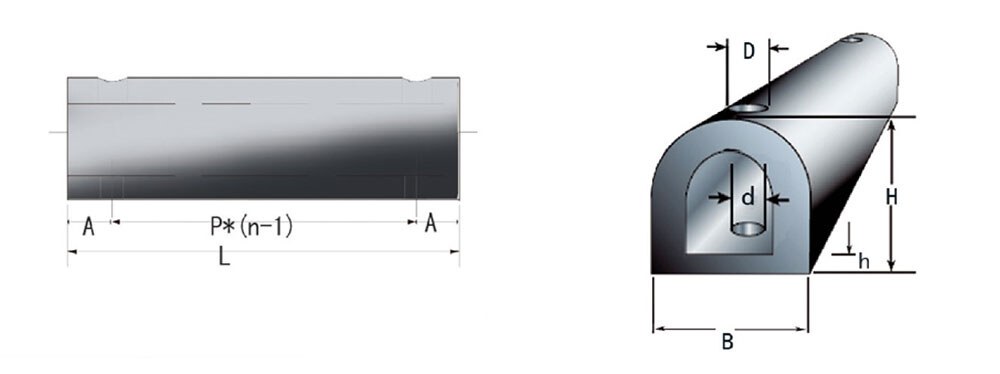

Specification:

Model L A D B H h Weight
(mm) (mm) (mm) (mm) (mm) (mm) Kg
D200H 1000 200 55 28 200 30 37
D200H 1500 150 55 28 200 30 56
D200H 2000 250 55 28 200 30 74
D300H 900 150 65 32 300 40 80
D300H 1000 200 65 32 300 40 67
D300H 1500 150 65 32 300 40 105
D300H 2000 250 65 32 300 40 134
D300H 1000 200 65 32 300 40 80
D300H 1500 150 65 32 300 40 120
D400H 1500 150 65 32 400 55 150
D400H 2000 200 65 32 400 55 200
D500H 1000 150 55 28 500 60 195
D500H 1500 150 55 28 500 60 298
D500H 2000 200 55 28 600 60 395
