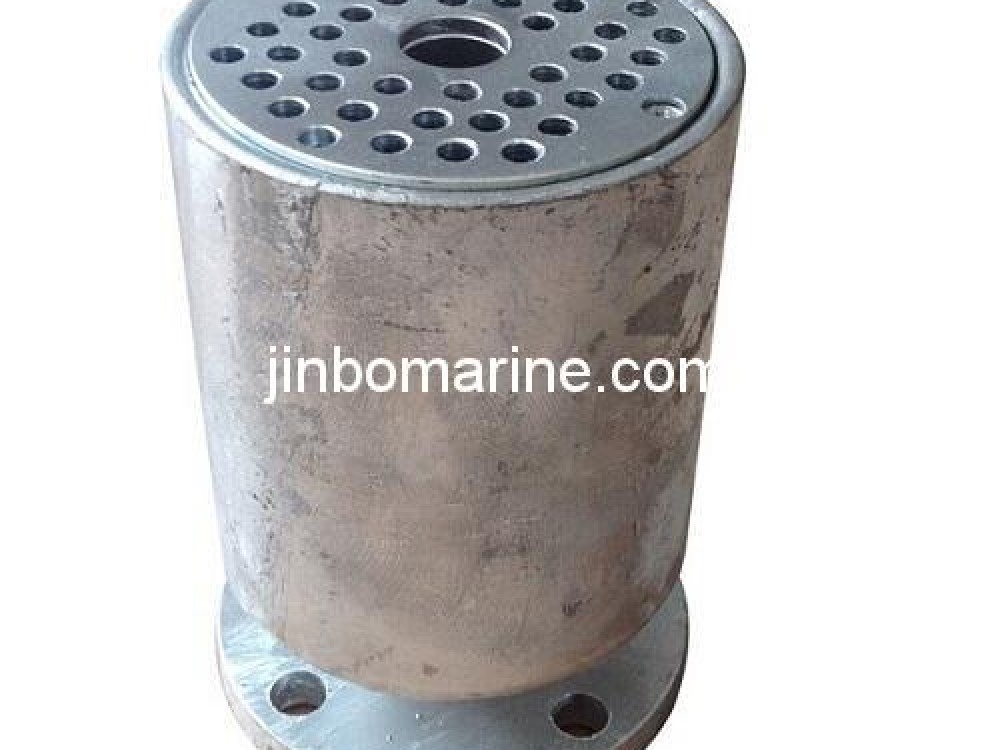

Deck Scupper Type SB/SBS/SC/SCS CB/T3885-2004

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Deck Scupper Type SB/SBS/SC/SCS CB/T3885-2004:

Deck Scupper Standard: CB/T 3885-2004

It should pass the sealing test which lasts for 5 minutes under the 0.12Mpa water pressure.

Type:

Type Descriptions Nominal Size(mm)
YA Round Deck Scupper 32~80
YB Round Deck Scupper with flange, flange size as per GB/T10751-1989 32~40
YBS Round Deck Scupper with flange, flange size as per GB/T2506-1989 32~65
YC Flat Round Deck Scupper 32~100
YD Short-tube Round Deck Scupper 40~65
TA Oval Deck Scupper 80~150
TB Oval Deck Scupper with flange, flange size as per CB/T46-1999
TBS Oval Deck Scupper with flange, flange size as per GB/T2506-1989
SA Water Sealed Deck Scupper with Flange, flange siz as per CB/T46-1999 & GB/T10751-1989 40~100
SAS Water Sealed Deck Scupper with Flange, flange siz as per GB/T2506-1989 50~100
SB Bolted Water Sealed Deck Scupper with Flange, flange siz as per CB/T46-1999 & GB/T10751-1989 40~100
SBS Bolted Water Sealed Deck Scupper with Falnge, flange siz as per GB/T2506-1989 50~100
SC Welded Water Sealed Deck Scupper with Falnge, flange siz as per CB/T46-1999 & GB/T10751-1989 40~100
SCS Welded Water Sealed Deck Scupper with Falnge, flange siz as per GB/T2506-1989 50~100

Main Parts & Size:

Body---Carbon Steel with Galv

Grill---Carbon Steel with Galv

Water Seal Cover---Carbon Steel with Galv

Stem---Aluminum Bronze

Screw---Brass

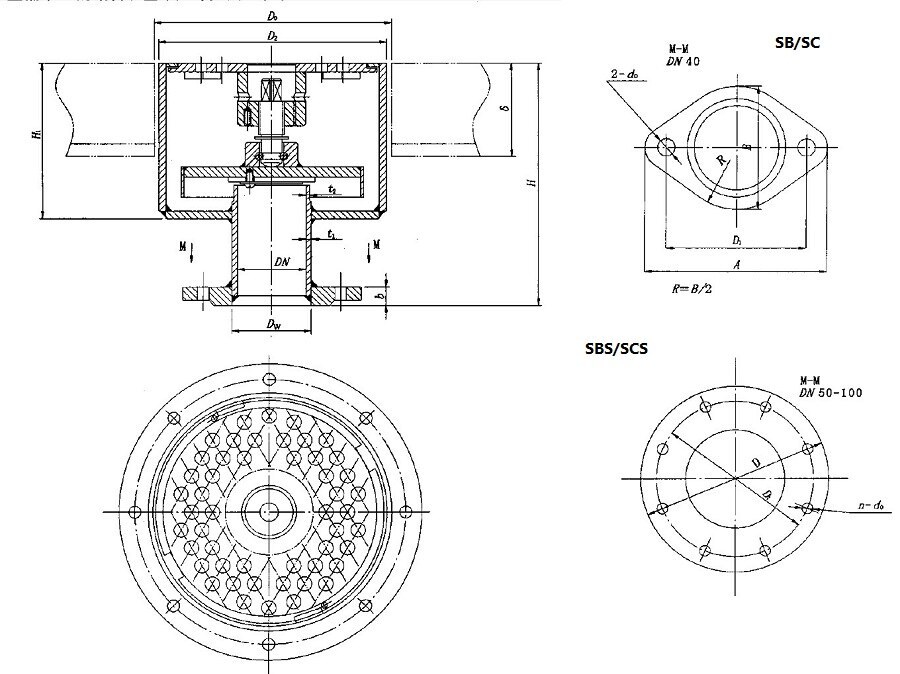

Main Size List for SB (mm):

DN Dw D0 D2 D3 D4 H H1 δ≤ t1 t2 Flange Size b d0 Weight(kgs)
As per GB/T10751-1989 As per CB/T46-1999
A B D1 D D1 n
40 48 137 133 170 220 200 135 100 5 3 132 95 100 — — — 16 14 6.1
50 60 210 146 6 4 — — — 135 103 6 14 15 9.39
65 76 163 159 195 225 220 156 6.5 4.5 155 123 12.94
80 89 184 180 215 240 260 197 150 7 170 138 17.11
100 114 207 203 230 260 265 208 8 5 190 158 8 19.39

Main Size List for SBS (mm):

DN Dw D0 D2 H H1 δ≤ t1 t2 Flange Size weight(kgs)
As per GB/T 2506-1989
D D1 b d0 n
50 60 118 114 120 75 60 6 4 140 110 16 14 4 5.8
65 76 144 140 80 6.5 4.5 160 130 7.4
80 89 172 168 170 15 110 7 190 150 18 9.3
100 114 207 203 125 8 5 210 170 12.5

Main Size List for SC (mm):

DN Dw D0 D2 H H1 δ≤ t1 t2 Flange Size b d0 Weight(kgs)
As per GB/T10751-1989 As per CB/T46-1999
A B D1 D D1 n
40 48 137 133 200 135 100 5 3 132 95 100 — — — 16 14 5.17
50 60 210 146 6 4 — — — 135 103 6 14 15 5.93
65 76 163 159 220 156 6.5 4.5 155 123 8.27
80 89 184 180 260 197 150 7 170 138 12.69
100 114 207 203 265 208 8 5 190 158 8 14.99

Main Size List for SCS (mm):

DN Dw D0 D2 Normal Extended t1 t2 Flange Size weight(kgs)
As per GB/T 2506-1989
H H1 δ≤ H H1 δ≤ D D1 b d0 n Normal Extended
50 60 137 133 210 146 100 260 196 150 6 4 140 110 16 14 4 6.9 7.2
65 76 163 159 220 156 270 206 6.5 4.5 160 130 9.8 10.2
80 89 184 180 260 197 310 247 200 7 190 150 18 14 14.5
100 114 207 203 265 208 315 258 8 5 210 170 16.6 17.4
