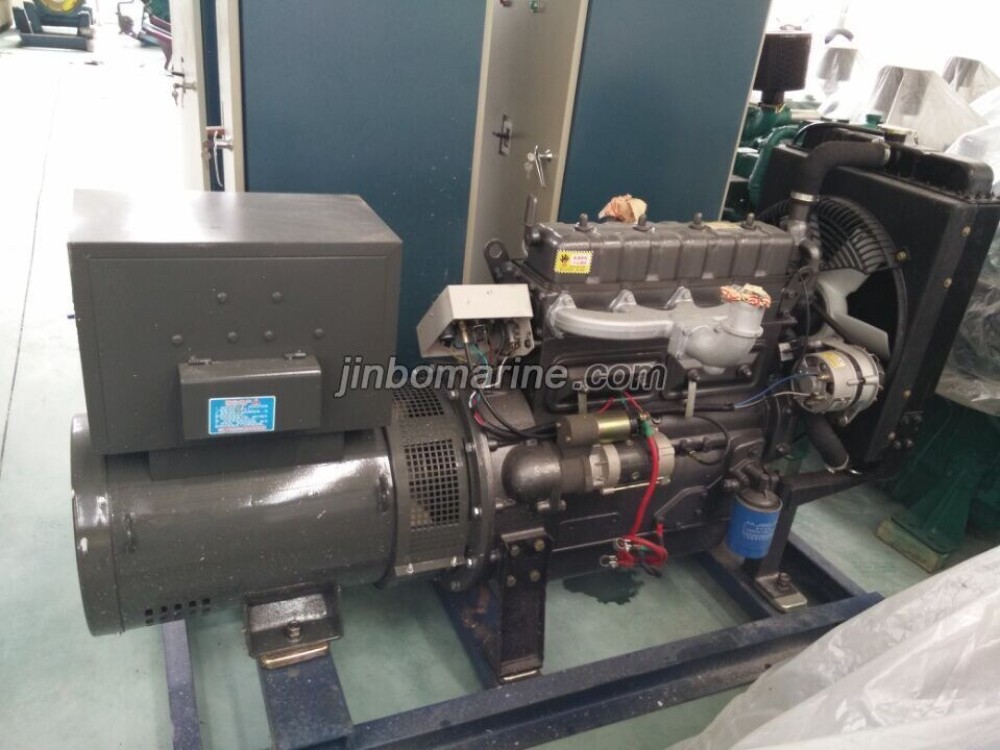

Deutz Series Water-cooled Diesel Generator
- Category:Marine Generator
- Standards:Standard
- Certificate:CCS,BV,GL
- Packing Details:Standard packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Deutz Series Water-cooled Diesel Generator
Parameter
| Deutz Series Water-cooled Diesel Generator | |||||||||||||
| Type | Standby power / Prime power(KW) | Current(A) | Engine type | Engine power (KW) | Cylinder | Borexstroke (mm) | Displacement (L) | Compression Ratio | Lubricating (L) | Consumption (g/kw.h) | Speed regulating | Weight (kgs) | LXWXH (mm) |
| 24GF | 26.5/24 | 47/43 | D226B-3D | 33/30 | 3 | 105x120 | 3.12 | 15.5 | 7.25 | 208 | Mechanical | 700 | 1700x600x1450 |
| 30GF | 33/30 | 59/54 | TD226B-3D | 49.5/45 | 3 | 105x120 | 3.12 | 15.5 | 7.25 | 208 | Mechanical | 760 | 1700x600x1450 |
| 40GF | 44/40 | 79/72 | TD226B-3D | 49.5/45 | 3 | 105x120 | 3.12 | 15.5 | 7.25 | 208 | Mechanical | 800 | 1700x600x1450 |
| 50GF | 55/50 | 99/90 | TD226B-4D | 66/60 | 4 | 105x120 | 4.16 | 15.5 | 7.25 | 208 | Mechanical | 950 | 2280x600x1450 |
| 80GF | 88/80 | 158/144 | TD226B-6D | 99/90 | 6 | 105x120 | 6.23 | 15.5 | 13 | 208 | Mechanical | 1350 | 2400x800x1600 |
| 100GF | 110/100 | 198/180 | TBD226B-6D | 132/120 | 6 | 105x120 | 6.23 | 15.5 | 13 | 205 | Mechanical | 1550 | 2460x798x1653 |
| 120GF | 132/120 | 238/216 | TBD226B-6D5 | 145/132 | 6 | 105x120 | 6.23 | 15.5 | 13 | 205 | Electronic | 1380 | 2500x800x1600 |
| 180GF | 180/160 | 325/288 | TBD234V6 | 210/191 | 6 | 128x140 | 10.8 | 15 | 22 | 198 | Electronic | 2350 | 2710x1130x1710 |
| 240GF | 240/220 | 397/361 | TBD234V8 | 280/255 | 6 | 128x140 | 10.8 | 15 | 22 | 198 | Electronic | 2500 | 2920x1120x1900 |
| 280GF | 280/250 | 496/451 | TBD234V8 | 309/281 | 8 | 128x140 | 14.4 | 15 | 28 | 196 | Electronic | 3250 | 2930x1120x1900 |
| 350GF | 350/320 | 596/542 | TBD236V8 | 379/345 | 8 | 132x140 | 15.3 | 15 | 28 | 203 | Electronic | 3400 | 2930x1120x1900 |
| 400GF | 400/350 | 772/650 | TBD236V12 | 421/383 | 12 | 128x140 | 21.6 | 15 | 39 | 196 | Electronic | 4900 | 4170x1320x2015 |
| 440GF | 440/400 | 792/722 | TBD236V12 | 488/444 | 12 | 128x140 | 21.6 | 15 | 39 | 196 | Electronic | 5300 | 4170x1320x2015 |
| 550GF | 550/500 | 993/903 | TBD604BL6 | 620/564 | 6 | 170x195 | 26.56 | 14 | 72 | 191 | Electronic | 5500 | 4470x1505x2156 |
| 880GF | 880/800 | 1588/1444 | TBD620V8 | 968/880 | 8 | 170x195 | 35.41 | 13.5 | 95 | 193 | Electronic | 8500 | 4830x1716x2316 |
| 1100GF | 1100/1000 | 1986/1805 | TBD620V8 | 1240/1128 | 12 | 170x195 | 53.11 | 13.5 | 150 | 187 | Electronic | 10500 | 5310x1716x2316 |
| 1320GF | 1320/1200 | 2382/2166 | TBD620V12 | 1452/1320 | 12 | 170x195 | 53.11 | 13.5 | 150 | 187 | Electronic | 10650 | 5310x1716x2316 |
