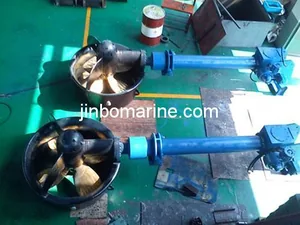

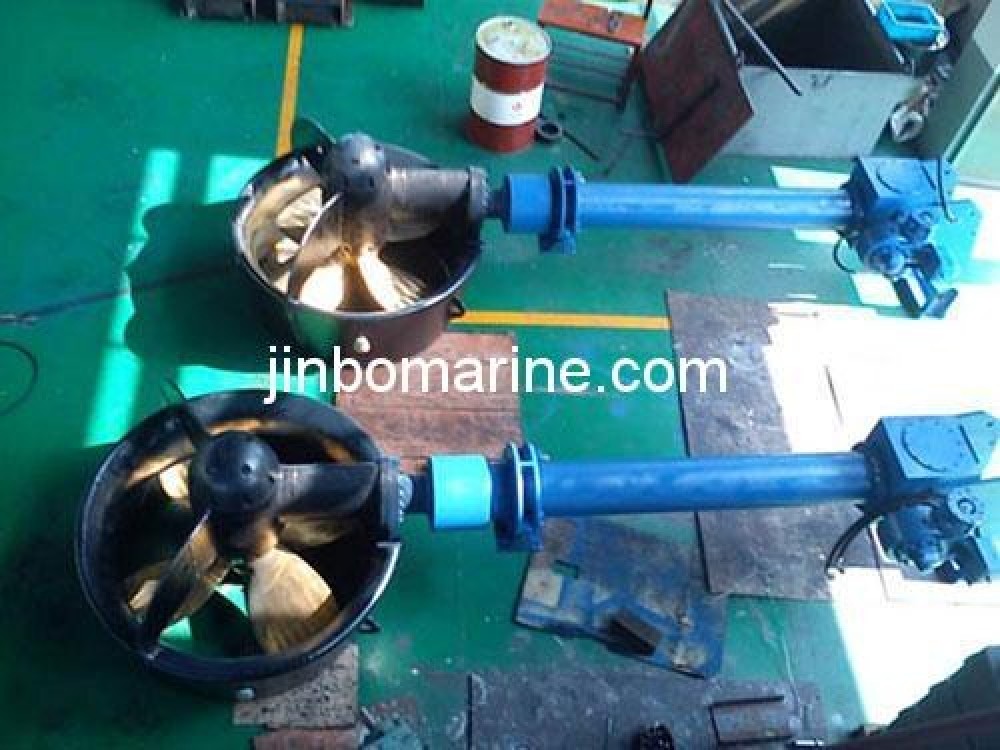

Diesel Driven Rudder Propeller
- Category:Rudder Propellers
- Certificate:BV,ABS,DNV,LR,CCS etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Diesel Driven Rudder Propeller:
Deck installation is a complete propulsion unit.It is a reliable and compact propulsion unit.
The chassis carries the total propulsion system. The chassis is constructed with a hydraulic system, an electric control box, daily fuel tank and so on system units.
The deck installation unit merely has to be mounted and bolted onto a foundation of deck. Rudder propeller is mounted at the rear chassis. Installation process is fast and simple.
The design and manufacture of our rudder propeller are totally in accordance with the requirements of IMO, SOLAS, and Classification Societies. It can be well instalation type and deck installation type, according to its installation method.
Specification:
| Model | Input power | Input speed | Propeller diameter | Propeller type | Max force |
| (kW) | (rpm) | (mm) | (T) | ||
| RP | 20-150 | 1500-2500 | 500/600/700 | FPP | 3.4 |
| RP | 150-250 | 1500-2350 | 700/800/900 | FPP | 2.9 |
| RP | 230-480 | 1200-2350 | 900/1000/1100 | FPP | 7.4 |
| RP | 420-690 | 830-1800 | 1200/1300/1400 | FPP/CPP | 11.1 |
| RP | 650-980 | 830-1800 | 1500/1600/1700 | FPP/CPP | 16.1 |
| RP | 950-1500 | 830-1500 | 1900/2000/2100 | FPP/CPP | 24.3 |
| RP | 1320-1750 | 750-1500 | 2200/2300/2400 | FPP/CPP | 29.3 |
| RP | 1650-2250 | 550-1200 | 2400/2500/2600 | FPP/CPP | 36.9 |
| RP | 2200-2600 | 550-1200 | 2600/2700/2800 | FPP/CPP | 42.6 |
| RP | 2350-3400 | 550-1200 | 2900/3200/3500 | FPP/CPP | 58.1 |
| RP | 3350-4500 | 750-1000 | 3800/4000/4200 | FPP/CPP | 79.5 |
