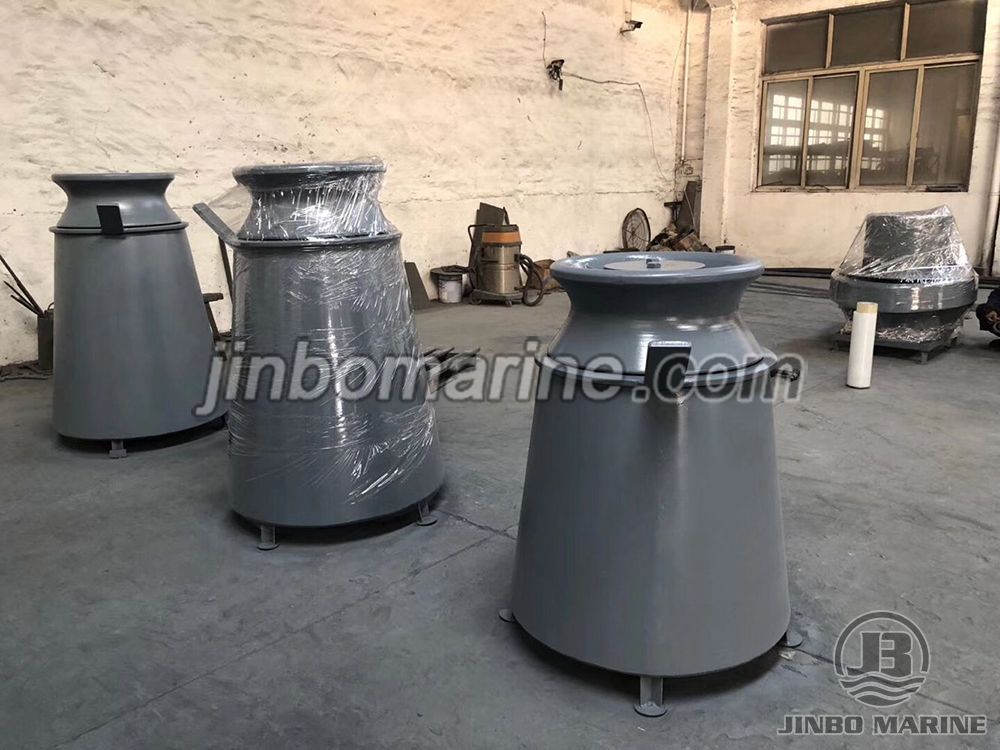

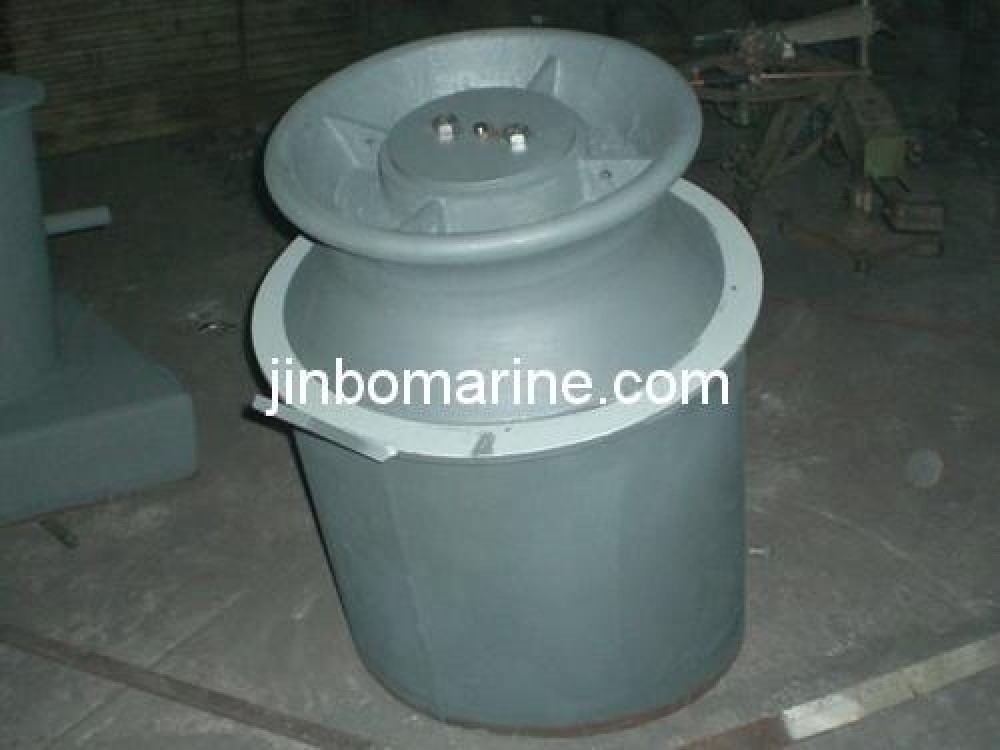

DIN81907-1997 Marine Mooring Fairleads Roller With Pedestal
- Category:Warping Roller
- Material:cast steel,cast iron
- Standards:DIN81907 1997
- Certificate:ABS , BV, CCS, mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Din81907 1997 Marine Mooring Fairleads Roller With Pedestal.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China DIN81907-1997 Marine Mooring Fairleads Roller With Pedestal:
We can provide DIN 81906-1999 Fairlead roller,NS2585 Type Marine warping roller----Also known as GB 10105-88 warping roller,JIS F2014-1987 fairlead roller,KOREAN WARPING ROLLER,CB58-83 fairlead roller
Cleat fairlead with single roller CB436-2000 A type,Cleat fairlead with single roller CB436-2000 B type,Double Warping Roller With Plate,DIN81907 1997 Fairleads roller,A type Fairlead Rollers etc.

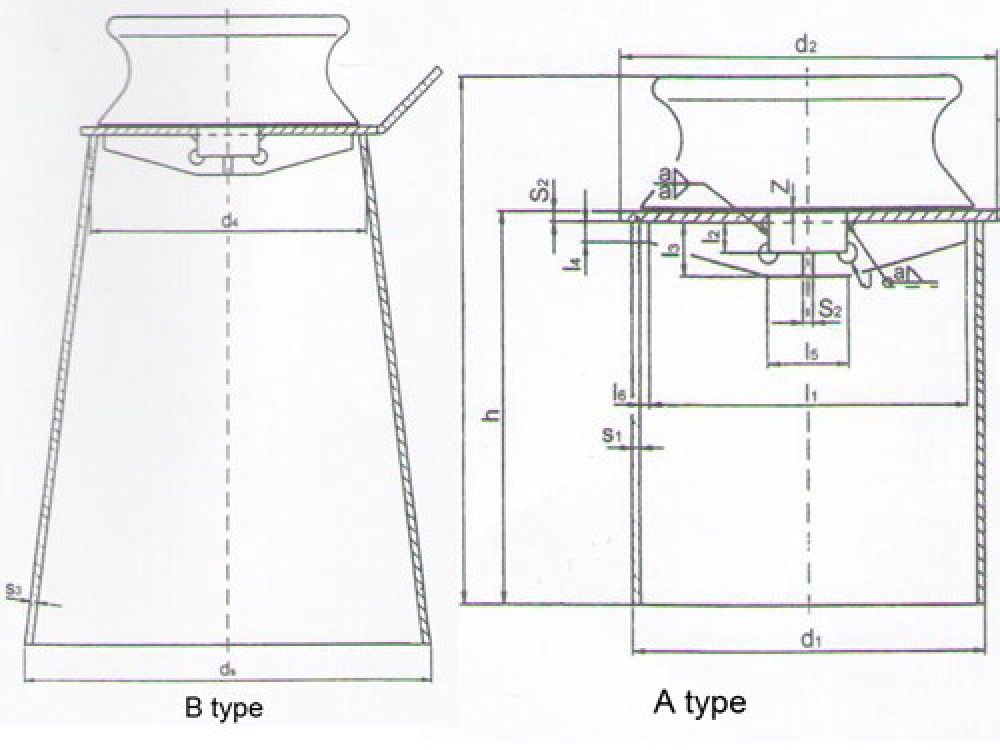

| DIN81907-1997 Marine mooring fairleads roller with pedestal A type / B type | |||||
| Product No. | model number | d1*s1 | d2 | b | d4 |
| CFD-001 | 1 | 219*12.5 | 255 | 60 | - |
| CFD-002 | 2 | 273*12.5 | 310 | 60 | - |
| CFD-003 | 3 | 355*12.5 | 395 | 60 | - |
| CFD-004 | 5 | 457*12.5 | 495 | 60 | - |
| CFD-005 | 8 | 559*12.5 | 595 | 80 | 560 |
| CFD-006 | 12 | 660*14.2 | 705 | 80 | 660 |
| CFD-007 | 20 | 660*17.5 | 705 | 100 | 660 |
| CFD-008 | 32 | 813*16 | 865 | 100 | 810 |
