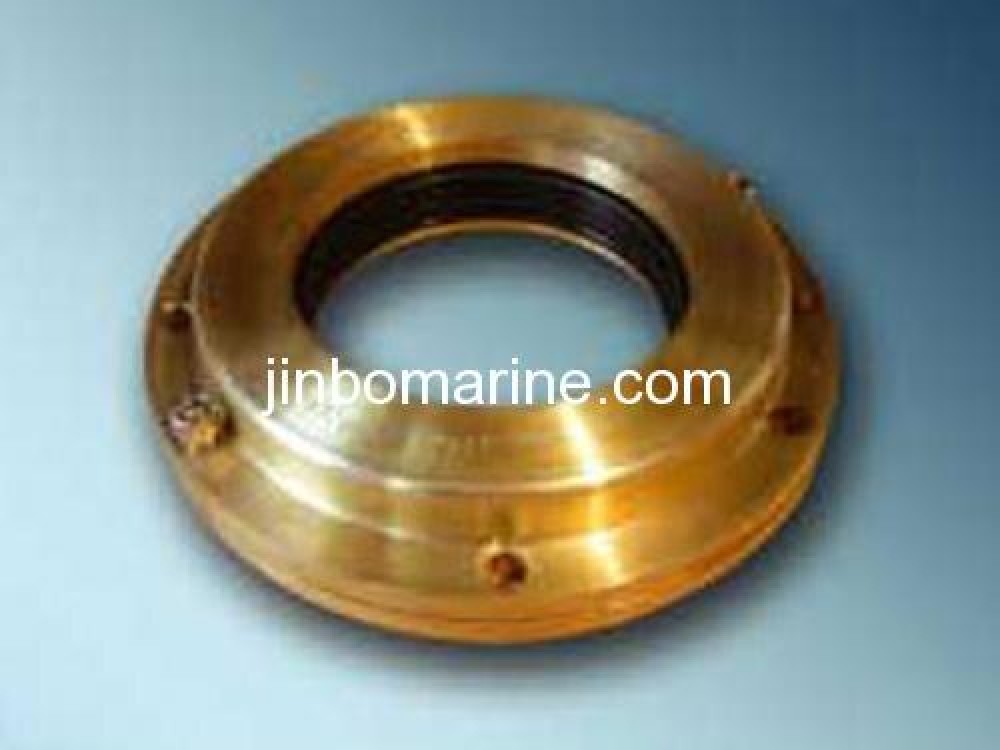

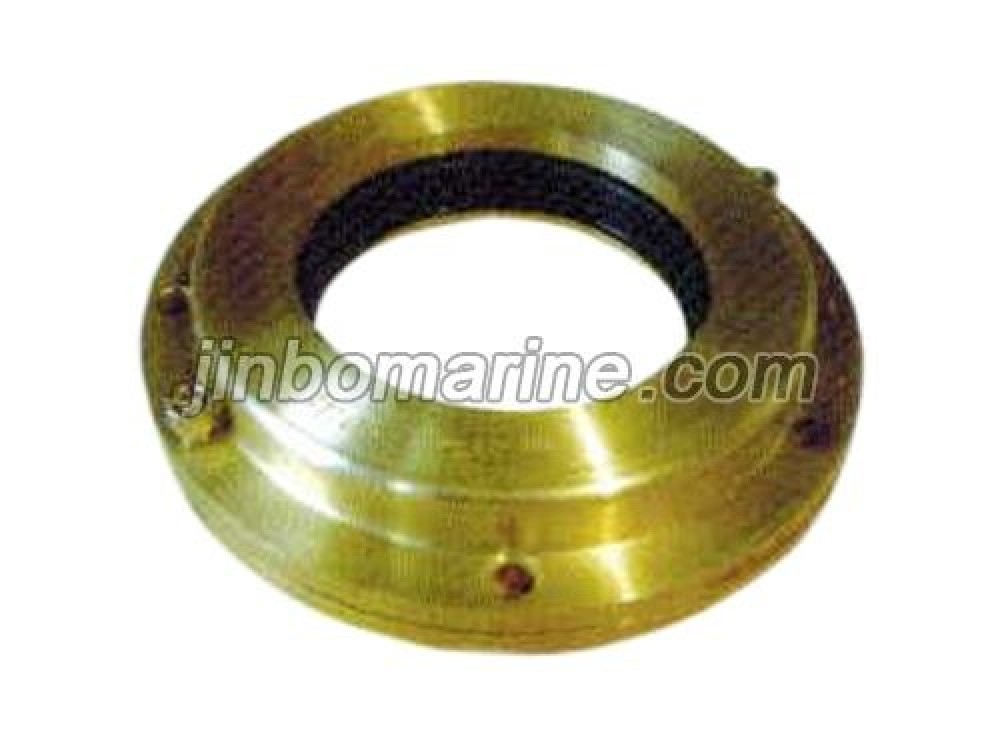

DMB Type Rudder Stock Sealing Apparatus
- Category:Rudder Stock Seal
- Packing Details:Wooden Box
- Delivery Time:15 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Advantage
This rudder printle sealing apparatus is compact in structure and easy to be maintained.It is suitable when the axial size is small.

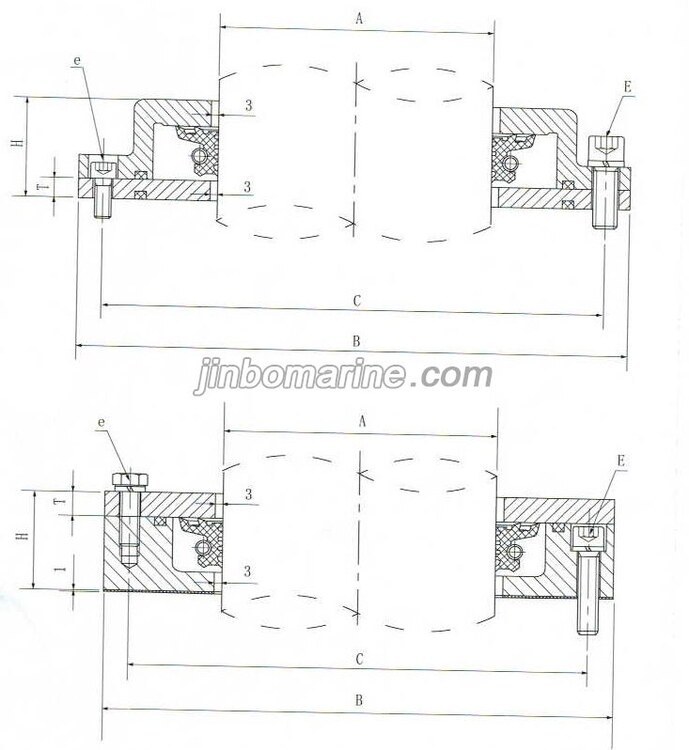

Technical Specification
| Specification | Dimensions (mm) | Weight (kg) | ||||||
| A | B | C | E | H | T | e | ||
| 80 | 65/70/75/80 | 200 | 225 | 4-M10×45 | 56 | 10 | 4-M10×25 | 13 |
| 100 | 85/90/95/100 | 220 | 190 | 4-M10×45 | 56 | 10 | 4-M10×25 | 15 |
| 130 | 101~130 | 250 | 225 | 6-M12×35 | 50 | 10 | 2-M8×20 | 9 |
| 160 | 131~160 | 280 | 255 | 6-M12×35 | 50 | 10 | 2-M8×20 | 11 |
| 190 | 161~190 | 310 | 285 | 6-M12×40 | 52 | 10 | 2-M10×25 | 12 |
| 220 | 191~220 | 358 | 324 | 6-M12×40 | 52 | 10 | 2-M10×25 | 16 |
| 260 | 221~260 | 404 | 370 | 6-M12×40 | 55 | 10 | 2-M10×25 | 19 |
| 300 | 261~300 | 444 | 410 | 6-M12×40 | 55 | 10 | 2-M10×25 | 20 |
