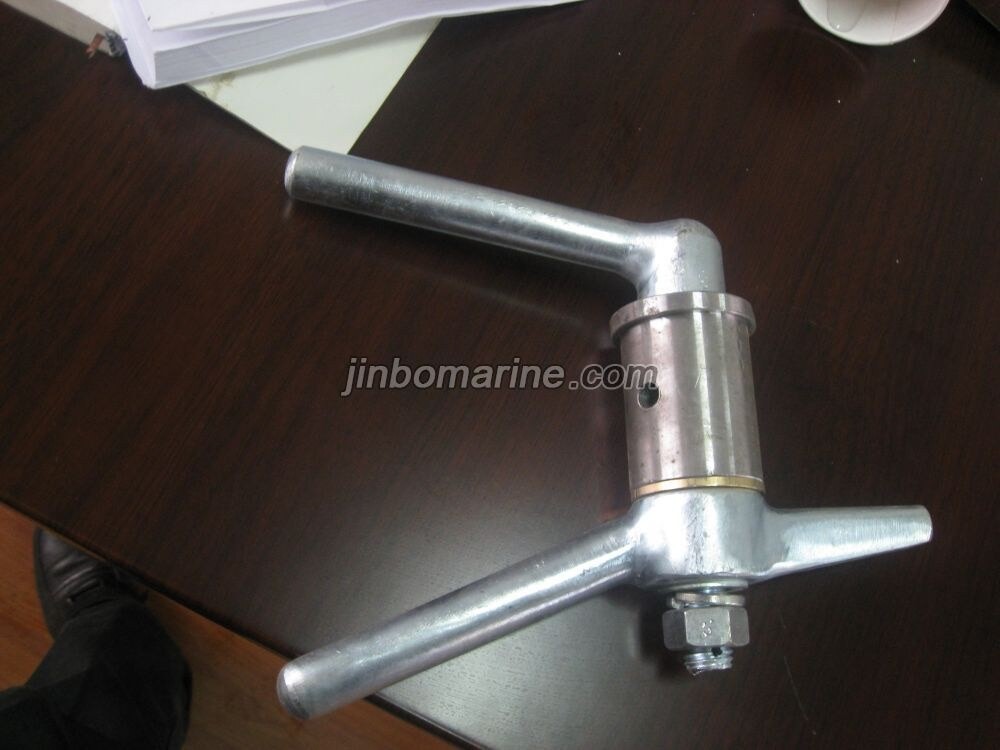

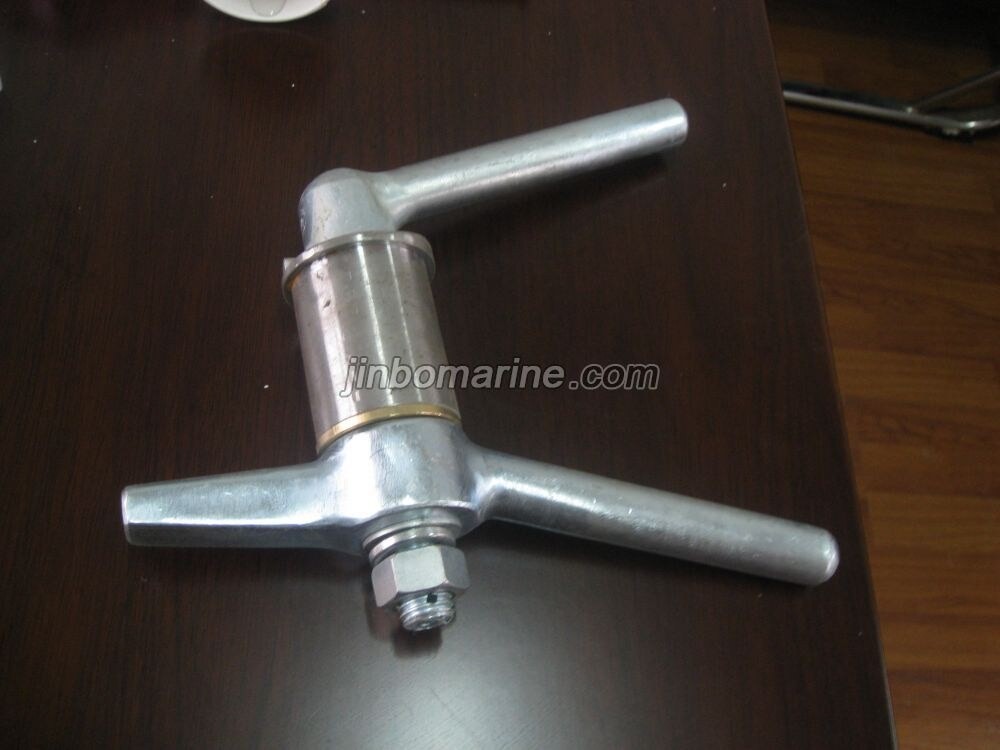

Dog Lock for Marine Weathertight Door

Request a Quote Not what you need, please send your RFQs via Email.

Details

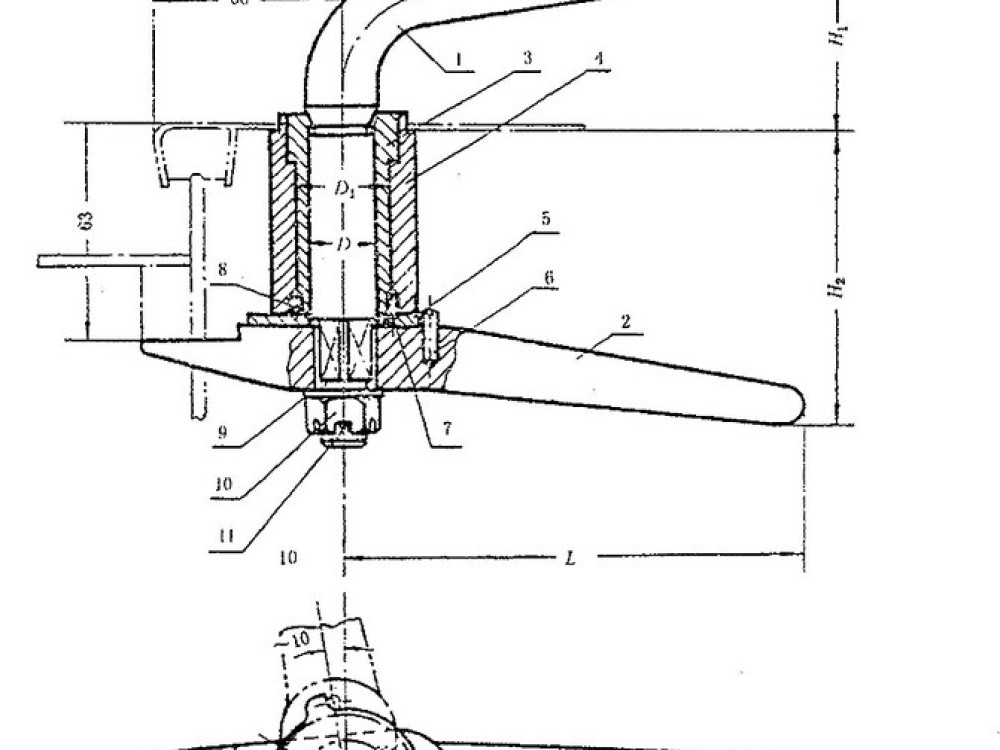

Dog Lock for Marine Weathertight Door Drawing

Dog Lock for Marine Weathertight Door Drawing

China Dog Lock for Marine Weathertight Door:

The dog lock is used on the marine weathertight door CB/T3477.

Main Parts & Material:

1.Wedge Outside Handle---Forged Steel with Hop Dip Galv

2.Wedge Inside Handle---Forged Steel with Hop Dip Galv

3.Bush---Brass

4.Socket---Carbon Steel

5.Gasket---Brass and Nylon

6.Pin---Carbon Steel

7/8. Screw---Carbon Steel

9.Washer---Carbone Steel

10. Nut---Carbon Steel with Hop Dip Galv

Main Size(mm):

Item No D D1 L H H1 H2 Weight(KGS)
A150 20 28 150 53 60 90 1.89
