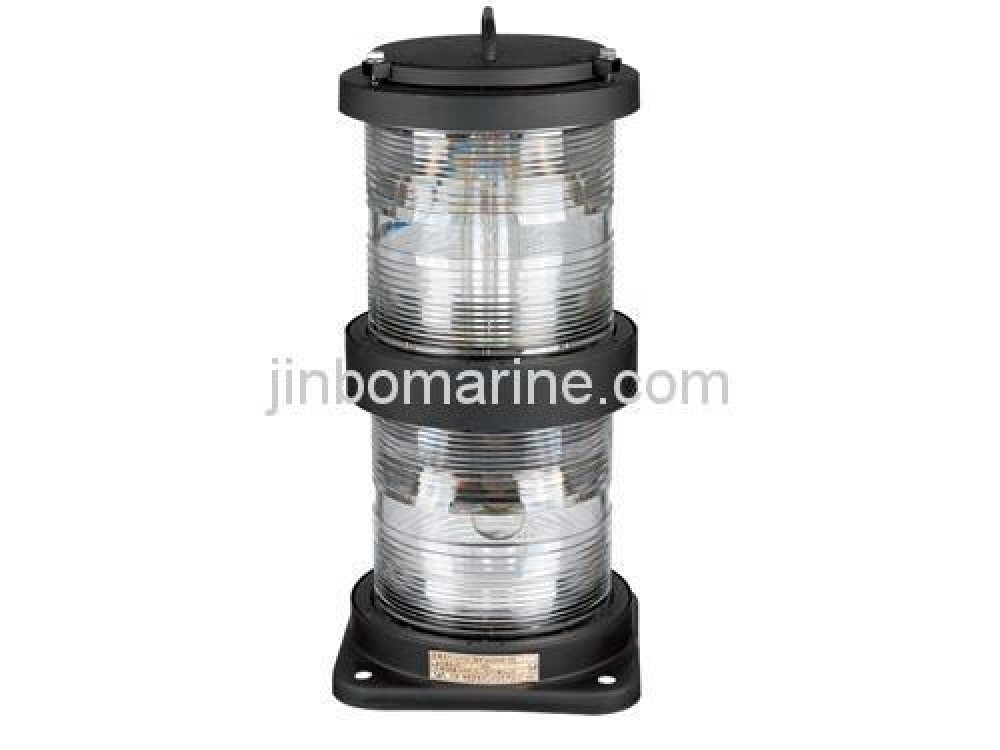

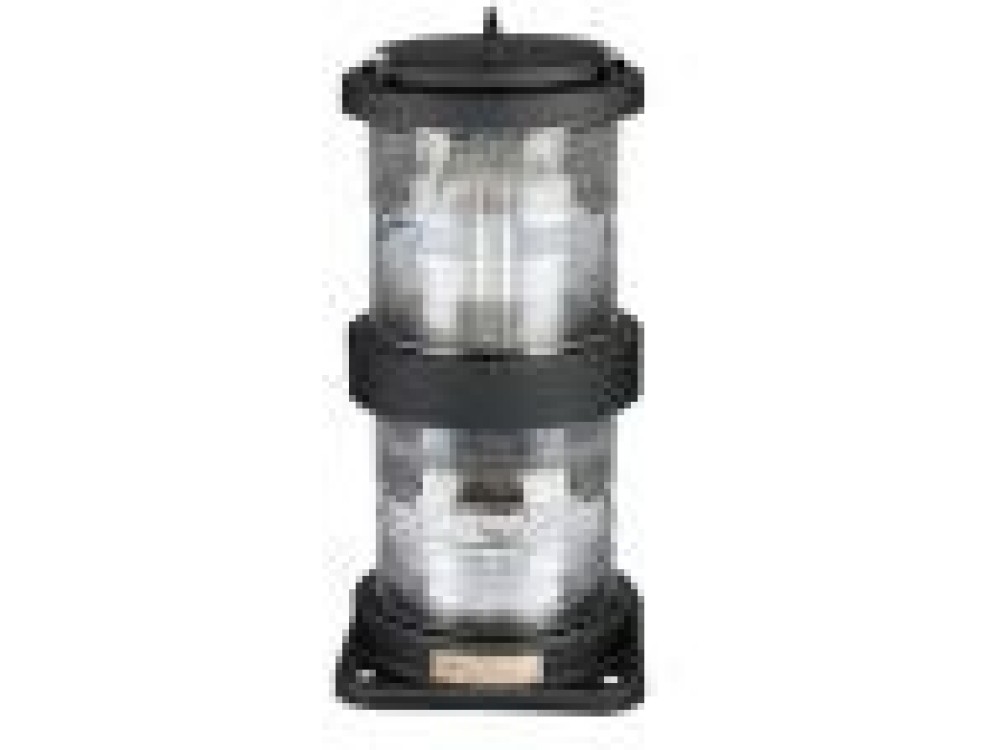

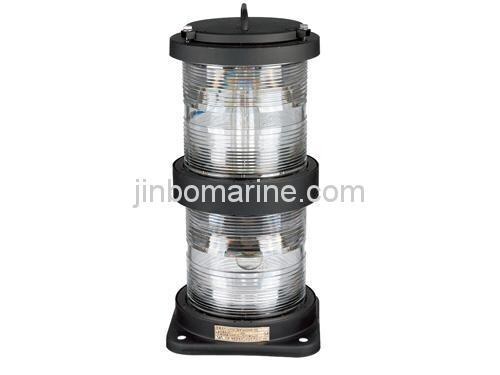

Double-Deck Stainless Steel Navigation Signal Light CXH-10S

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Double-Deck Stainless Steel Navigation Signal Light CXH-10S:

The Navigation Signal Light used to the ship with length50M or above as lamp signal liaison when night navigation.

Products Advantage:

1. High quality stainless steel plate, the surface painted with special mold-powder, with the feature of corrosion resisting and shock resistance.

2. The signal lights have the whole seal structure, waterproof under the bad enviroment.

3. Easy to replace the bulb because of the intergrated design for the up and down layer.

4. PC Material of Lampshade, Chroma stable and ultraviolet radiation resistance and down lampholder.

Standards:

1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.

2. Confirm to the International Standard IEC60598-1-2008.

3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.

Main Specification:

Voltage 24V 110V 220V
Power 2x60W 2x60W 2x65W
Lamp Holder P28S
Protection Class IP56
Cable Diameter Dia.11

Name Type Visibility Level Arc Color Weight
Starboard Light CXH1-10S 3n.m 112.5o Green 4.3KGS
Port Light CXH2-10S 3n.m 112.5o Red 4.3KGS
Masthead Light CXH3-10S 6n.m 225o White 4.1KGS
Stern Light CXH4-10S 3n.m 135o White/Yellow 4.2KGS
All-round- Light CXH6-10S 3n.m 360o Red/green/white 4.0KGS
