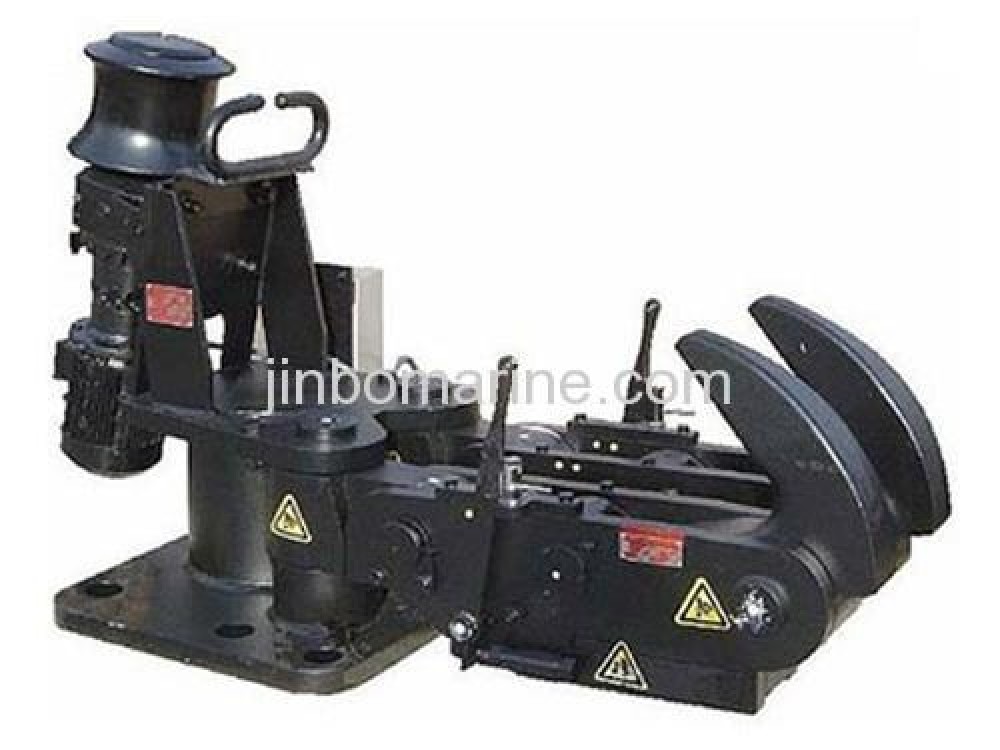

Double Quick Release Mooring Hook
- Category:Quick Release Mooring Hook
- Material:Including Q235-A ,Q345B, 40Cr,35Crmo.The goods can be designed according to your requirements.
- Certificate:CCS,BV, ABS ,DNV,GL,LR,NDT test report etc can be provide.
- Standards:Conform to classification society certificate
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Double Quick Release Mooring Hook 2.pdf
Details
Brief description:
It enable mooring ropes to be release fast and safely even under full load conditions.
Popular model:40,60,75,100,125 and 150 tons.
Type:Double mooring hook
Component:Hook,pin,nut,plate,cylinder,cross joint,bush,bolt,handle etc.
Certificate:CCS,BV, ABS ,DNV,GL,LR,NDT test report etc can be provide.
Main technical hook:
quantity of hook body for one handle: double hooks

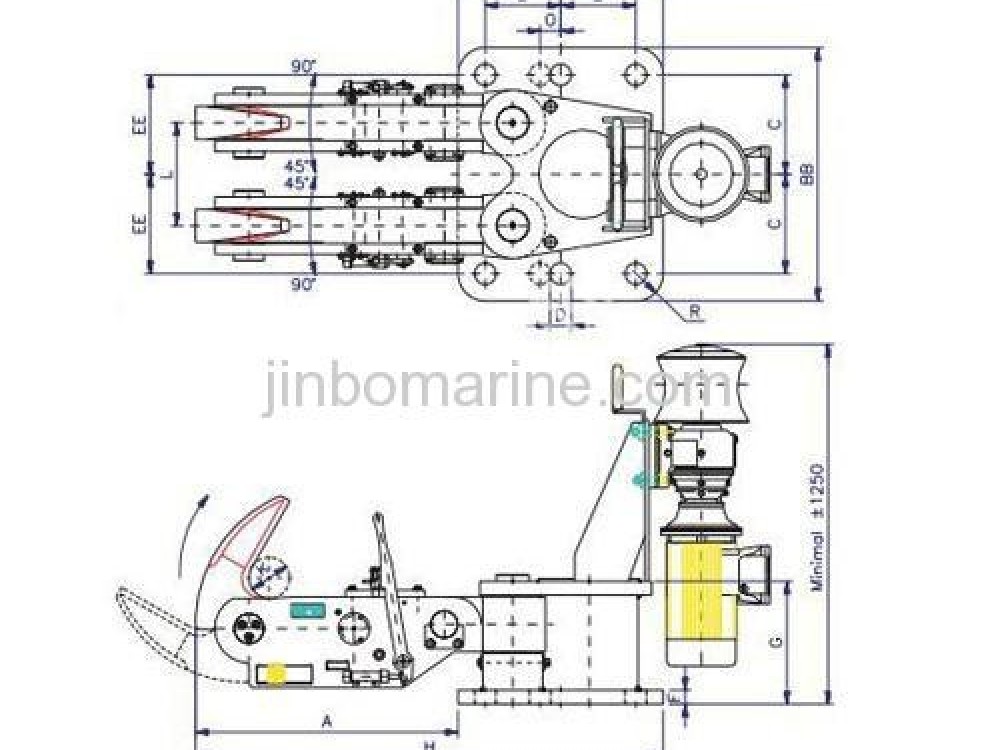

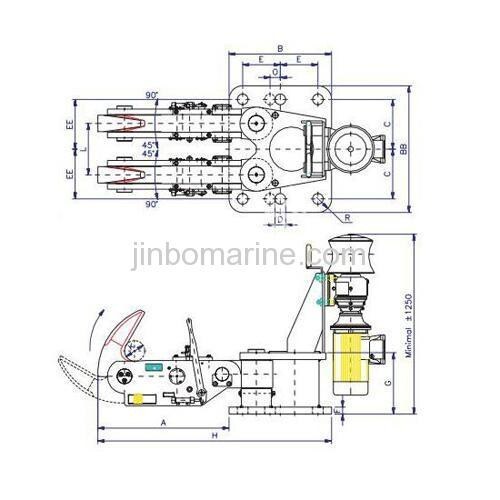

Size chart:
|
Product No. |
Safe working load(Kn) |
Weight(kg) |
A |
B |
BB |
C |
D |
E |
EE |
F |
G |
H |
K |
R |
X |
|
DHA-001 |
400 |
491 |
583 |
650 |
700 |
260 |
54 |
235 |
260 |
35 |
370 |
1233 |
96 |
90 |
6*M48 |
|
DHA-002 |
600 |
878 |
788 |
750 |
780 |
290 |
62 |
275 |
290 |
45 |
407 |
1536 |
130 |
130 |
6*M56 |
|
DHA-003 |
750 |
1049 |
888 |
750 |
850 |
325 |
70 |
275 |
325 |
45 |
417 |
1638 |
130 |
130 |
6*M64 |
|
DHA-004 |
1000 |
1439 |
959 |
750 |
925 |
363 |
78 |
275 |
363 |
50 |
447 |
1709 |
150 |
150 |
6*M72 |
|
DHA-005 |
1250 |
1602 |
1030 |
750 |
925 |
363 |
86 |
275 |
363 |
55 |
479 |
1780 |
150 |
150 |
6*M80 |
|
DHA-006 |
1500 |
2332 |
1210 |
750 |
1000 |
400 |
86 |
275 |
400 |
55 |
499 |
1960 |
50 |
150 |
7*M80 |
