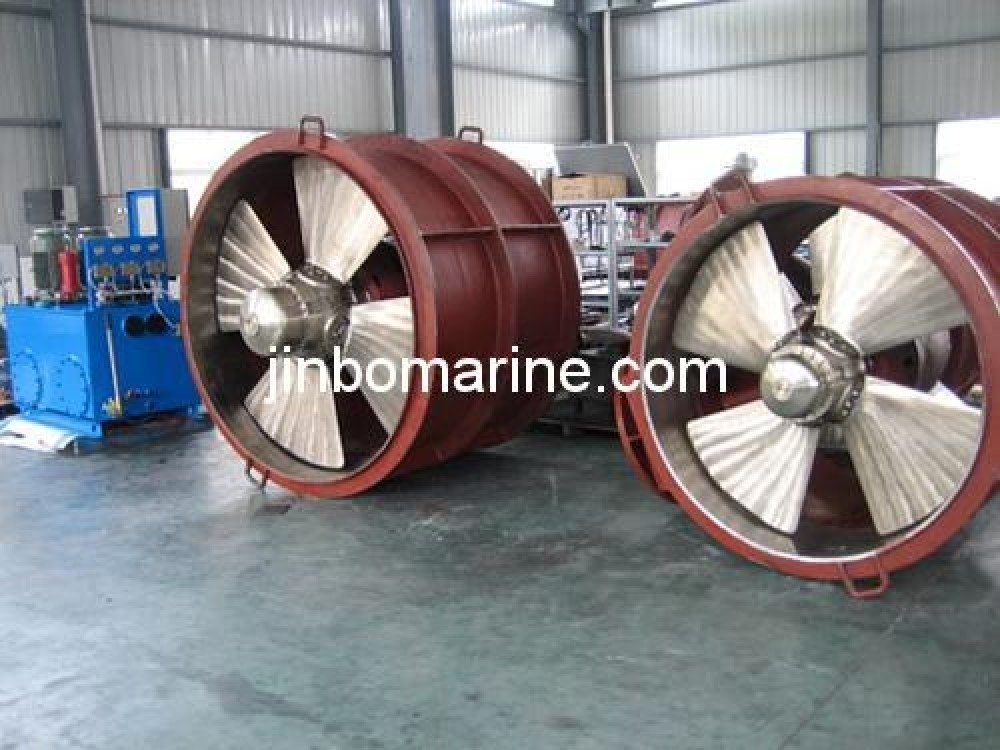

Electric Bow Thrusters

Electric generator bow thruster features environmental protection,reliability,high efficiency,endurance.and easy to maintain.Driven by eletricity generator optimized the propeller’s diameter speed combination,improved the propulsion efficiency,reduce the diameter speed while keep the same thrust force.

Drive power:50KW-2000KW.

Thrust force:8KN-260KN.

Propeller diameter:500mm-2800mm.

The bow thruster will have normal and reliable running in following environment. Ambient temperature: -28oC—+55oC/

Relative humidity: 95%（the relative humidity of installation environment of vibrate frequency starter and electric control device is 80%, and should have forced ventilation measures）

Rolling:±22.5 ;Heel:±15

Trim: ±5 ;Pitching:±7.5/

With salt fog, oil fog, mold and vibration and impact from normally sail.

For extreme load conditions, e.g. in the offshore sector

For continuous and short-time service

Low noise emission

Available with either fixed or controllable-pitch propellers

Compact design due to horizontal, vertical or inclined arrangement of the power input flange

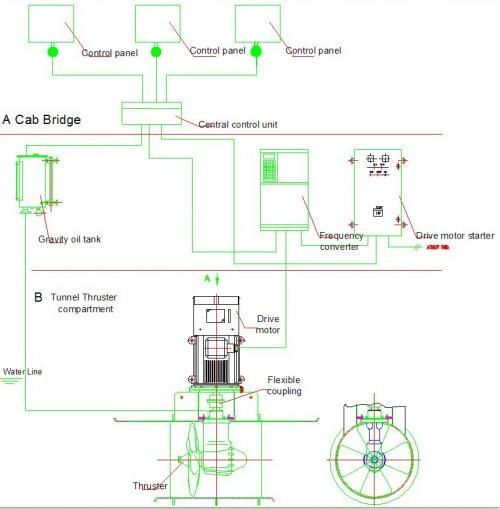

Composition of equipment

a.set of side thrust unit, including standard catheter, propeller, propeller shaft, engaged arc bevel gear, etc.

b.set of couplings

c.set of motor supports

d.gravity oil tank

e.drive motor

f.variable frequency speed regulator

g.set of electric control device (Control point is three)

h) Corrosion-resistant Zinc pieces
