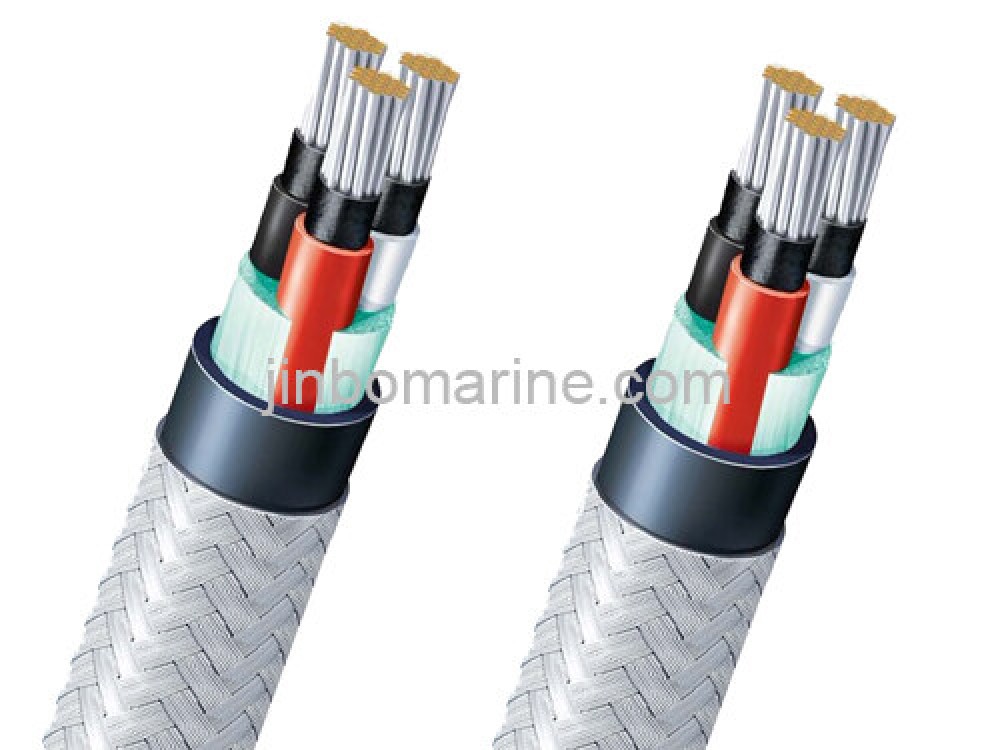

FA-TPYC Three Core Marine Power & Light Flame Retardant Cable 0.6/1KV

  • Category:JIS C 3410 Cable
  • Material:Tinned Copper/EPR insulation/PVC sheath/Galvanized Steel Wire Braided
  • Standards:JIS C 3410-1999
  • Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

China FA-TPYC Three Core Marine Power & Light Flame Retardant Cable 0.6/1KV:

JIS C 3410-1990 Marine Power & Lighting Cable

0.6/1KV FA- TPYC Cable is Three Cores EPR insulation Galvanized Steel Wire Braided PVC Sheath Flame Retardant Cable

0.6/1KV TPYC Cable is Three Cores EPR insulation Galvanized Steel Wire Braided PVC Sheath Cable

Cable Construction

Classification

Code

Construction details

Conductor

T

Tinned Copper Wire JIS C3410

Insulation

P

EPR as per JIS C 3410

Sheath

Y

PVC as per JIS C 3410

Armor

C

Galvanized steel wire braided


CB

Tinned copper wire braided

Paint


The white paint should be painted uniformly

Standards

Design : JIC C 3410(1999)

Flammability: IEC 60332-1 & IEC 60332-3 Category A

Cores & Size

Number of Conductor: 3 Core

Size of Conductor (mm2): 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300

Feature

Halogen-free, Low Smoke, Flame retardant

Maximum Working Voltage and Testing Voltage

Nominal voltage (V) Maximum working voltage (V) (Test voltage) V/min.
a.c d.c
250V 250V 450V 1500/5
0.6/1 kV 0.6/1 kV 0.9/1.5kV 3500/5

Minimum Bending Radius

The bending radius for the installation of cables should be not less than the values given as follows:

Type of cable Minimum bending radius
Up to 1.8/3kV Unarmored or unbraided
D ≤ 25mm 4XD
D > 25mm 6XD
Metal braid screened or armored 6XD
Tape screened 8XD
3.6/6kV Single core 12XD
above 3-core 9XD
NOTE) D : Overall diameter of cable


Application:

The cable is fixed installation, used for power, lighting and control in most area and open deck area in ship.
