GB/T 14364-93 Intermediate Bearing

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Technical Specification

It is suitable for vessels in inland water.Medium and large vessels are suggested to choose type B and C.Large vessels are suggested to choose type C.

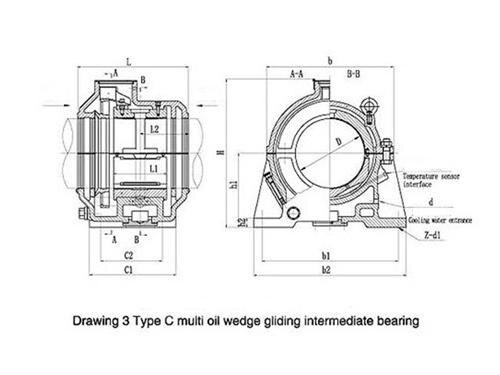

D L1 L2 H H1 H2 b d1 d2 d2 c1 c2 d1 d z Type
80 190 65 79.5 262 135 23 220 250 296 185 125 21 G2/4* 4 A
100 200 80 85 270 145 23 240 270 316 195 135 21 G3/4* 4
120 225 100 97 312 160 25 270 300 350 220 160 21 G3/4* 4
140 250 115 107.5 370 190 28 304 340 390 244 194 21 G3/4* 4
160 280 130 119 400 205 28 330 370 420 274 224 21 20 4
180 335 145 140 485 265 30 400 450 510 285 230 25 20 4
200 350 160 140 496 275 35 410 450 510 326 250 25 20 4
220 380 180 164 544 292 38 430 490 566 374 298 25 20 4
250 420 195 187 580 300 40 490 530 610 322 250 32 20 4 B、C
280 450 215 199 620 310 40 520 560 630 340 270 32 20 4
300 480 230 209 635 320 40 550 590 660 370 298 32 20 4
320 500 250 219 690 350 50 580 630 700 390 320 32 20 4
350 350 270 236 780 400 50 650 700 780 418 334 38 20 4
380 560 290 240 790 420 55 710 760 840 460 380 38 25 4
400 590 300 260 810 440 5 730 780 860 480 400 38 25 4
420 620 320 265 900 460 65 770 820 920 500 400 44 25 4
450 660 340 280 930 480 65 810 840 940 528 424 44 32 4
480 680 360 298 960 500 65 820 870 970 545 445 50 32 4
500 710 380 305 1060 570 70 900 1000 1120 600 480 50 32 4
530 730 410 315 1090 580 70 920 1020 1140 620 500 50 32 4
560 780 430 355 1140 620 75 970 1080 1200 674 554 50 32 4
600 600 460 380 1180 650 75 1000 1130 1260 700 580 50 32 4
630 860 480 380 1220 670 80 1060 1170 1300 720 600 50 32 4
670 920 510 421 1260 690 85 1150 1250 1370 750 630 50 32 6
710 960 540 435 1330 710 85 1200 1340 1470 800 670 50 32 6
750 1050 570 435 1400 750 90 1260 1420 1580 850 710 60 32 6
800 1100 610 435 1480 800 90 1300 1460 1620 920 760 60 32 6
