GD Type Rubber Fender
- Category:Marine Fender
- Material:Natural Rubber
- Certificate:BV,CCS,mill certificate etc.
- Packing Details:Export standard packaging.
- Delivery Time:10 to 15 days.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China GD Type Rubber Fender:
It is mounted to a dock or a ship to counteract the collision force between the dock and the ship generated during mooring and berthing,thus preventing ships and docks from being damaged.
High energy absorption, low reaction force.
Applicable for frame style dock.
High strength installation, long service life.

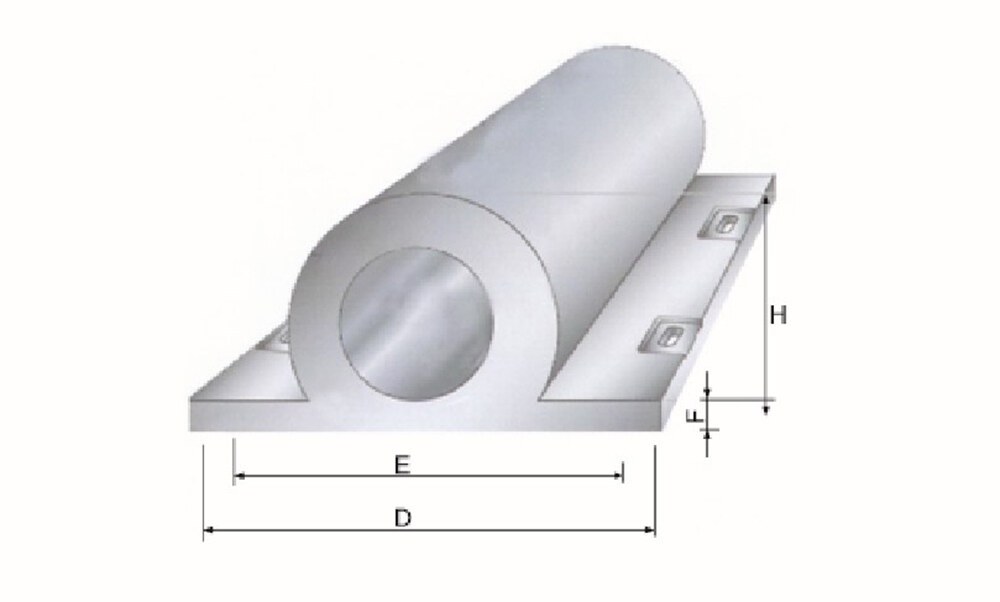

Specification:
| Model | D | E | F | H | M | I | J |
| mm | mm | mm | mm | mm | mm | mm | |
| GD280HX1000L | 540 | 430 | 40 | 280 | M30 | 40 | 300 |
| GD280HX1500L | 540 | 430 | 40 | 280 | M30 | 40 | 300 |
| GD280HX2000L | 540 | 430 | 40 | 280 | M30 | 40 | 300 |
| GD280HX2500L | 540 | 430 | 40 | 280 | M30 | 40 | 300 |
| GD280HX3000L | 540 | 430 | 40 | 280 | M30 | 40 | 300 |
| GD300HX1000L | 600 | 460 | 40 | 300 | M36 | 40 | 360 |
| GD300HX1500L | 600 | 460 | 40 | 300 | M36 | 40 | 360 |
| GD300HX2000L | 600 | 460 | 40 | 300 | M36 | 40 | 360 |
| GD300HX2500L | 600 | 460 | 40 | 300 | M36 | 40 | 360 |
| GD280HX3000L | 600 | 460 | 40 | 300 | M36 | 40 | 360 |
