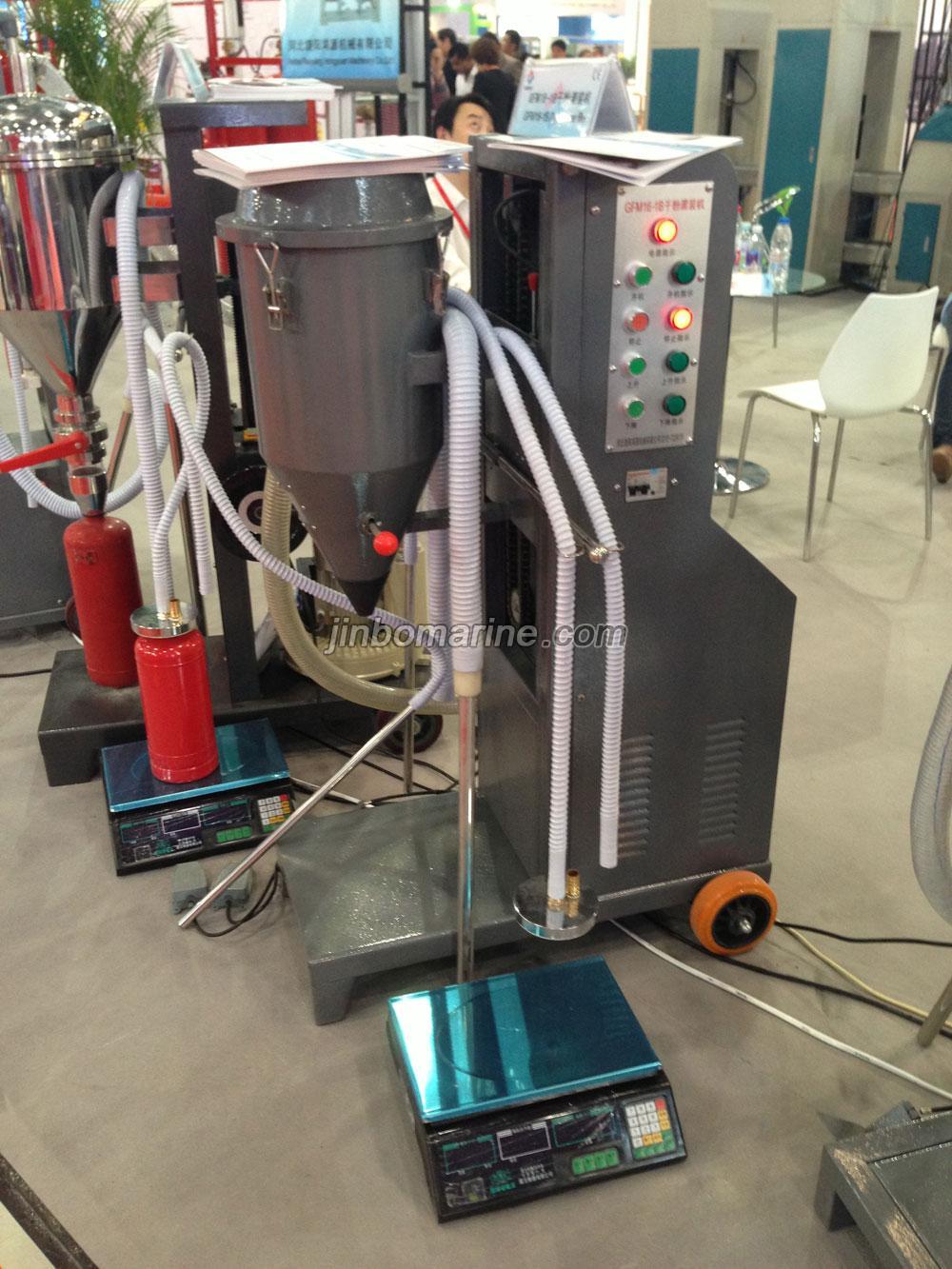

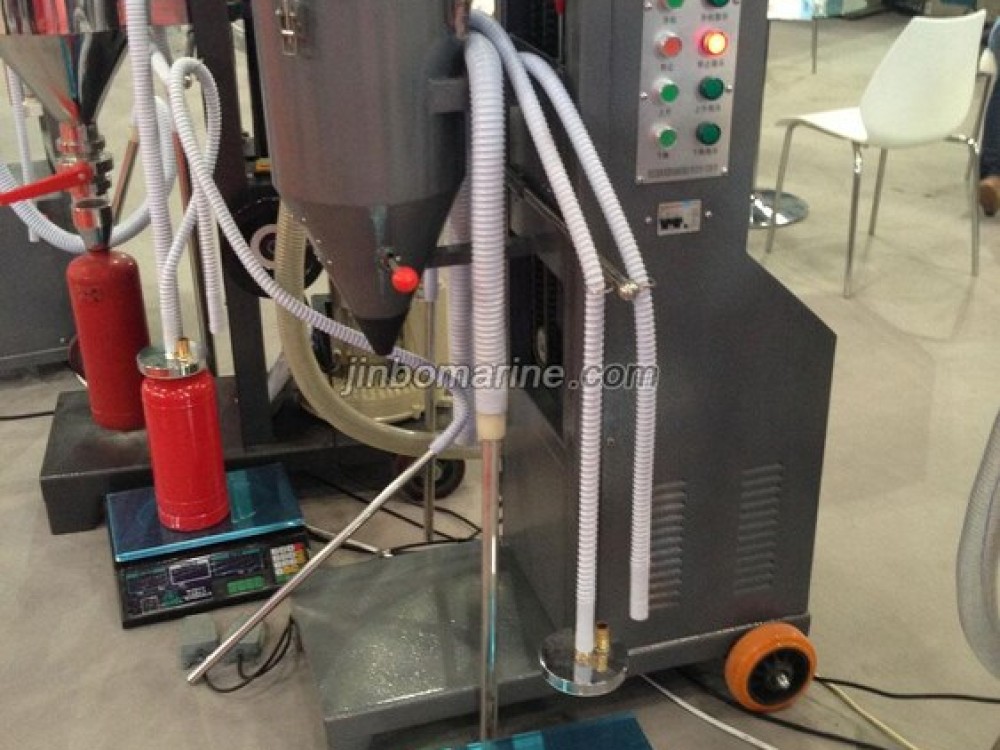

GFM16-1B Fire Extinguisher Dry Powder Filler

GFM16-1B fire extinguisher dry powder filler is a new product developed by our factory after absorbing the advantages of powder fillers at home and abroad. It can quickly suck dry powder into the cylinder and be directly filled in the cylinder of the extinguisher to be filled by vacuum fluidics; the dry powder can also be directly sucked into the cylinder of the extinguisher to be filled through the filling and cover. It can directly recover the dry powder in the cylinder of the old extinguisher. The equipment has the functions of lifting and dropping the cylinder electrically by just treading on the rise

or fall pedal.

It features small volume, easy movement, simple operation and lack of environmental pollution. Thus labor intensity is decreased and work environment is improved. It can fill various models of extinguisher cylinder and also suitable for filling various powder products. So it is an ideal equipment in the powder filling industry.

Overall size:800X400X1350mm (W×L×H)

Weight:90Kg

Volage:AC 220V

Power:1.1KW

Filling speed: 5kg/min

Filling residue:1 kg≤ 0.04

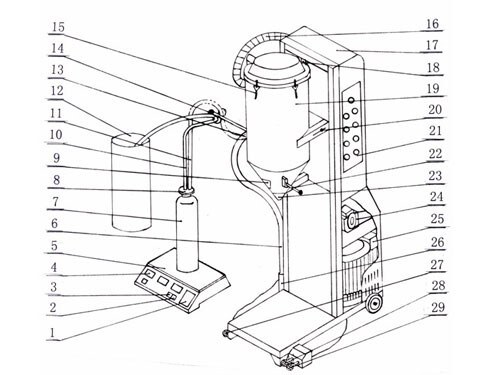

1. Digital operating panel on the weighing bridge 2.【Shelling】key

3. 【Reset】key 4. Weight screen 5. Electronic weighting bridge

6. Powder suction pipe I 7. Cylinder of extinguisher to be filled

8. Filling end cover 9. Window of powder cylinder

10. Powder suction pipe II 11. Air suction pipe 12. Powder source

13. Powder suction port 14. Pipe support 15. Cylinder block

16. Main air pipe 17. Electricalbox 18. Elevating gear 19. Powder cylinder

20. Adjustable bolt 21. Operating panel of electric appliances

22. Valve of powder cylinder 23. Valve of powder cylinder 24. Rubber sleeve

25. Direction valve 26. Base 27. Pedal of direction valve 28. Ascending pedal

29. Descending pedal

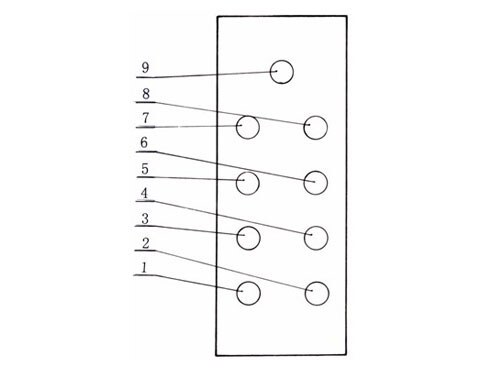

1. Fall button 2. Fall indicator 3. Rise button 4. Rise indicator

5. Stop button 6. Stop indicator light 7. Start button 8. Start indicator light

9. Power indicator light
