Gravity Luffing Arm Davit
- Category:Lifeboat Davit
- Standards:SOLAS, MSC.218(82),MSC81(70), MSC226.(82)
- Certificate:ABS,LR, BV, GL CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:

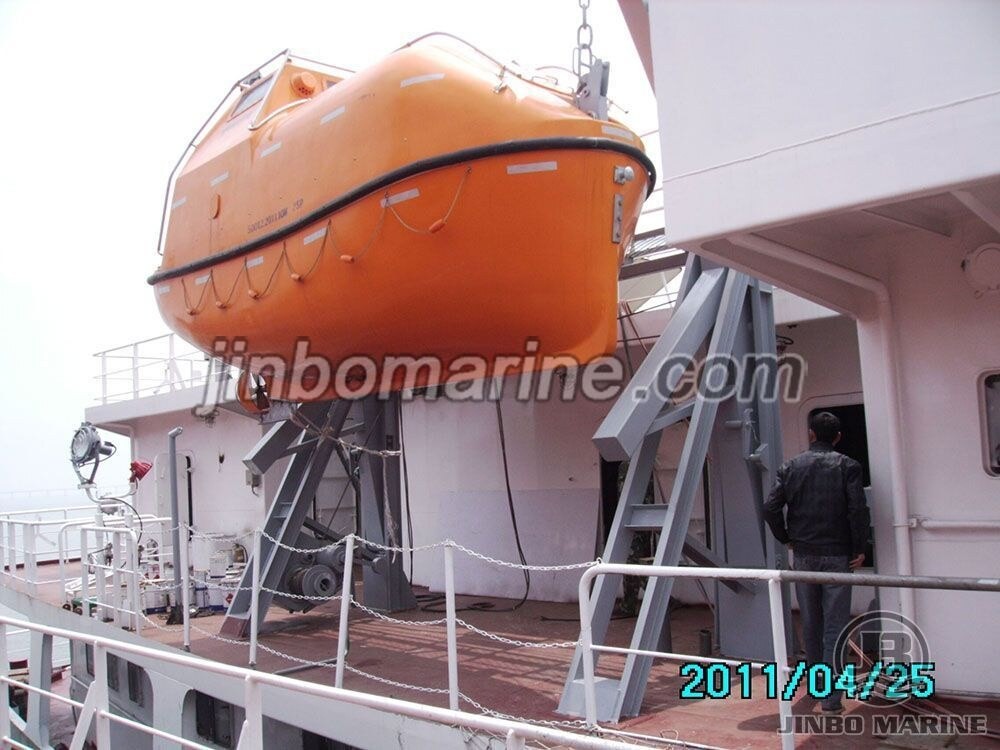

It is mainly used for lauching the totally enclosed lifeboat.
Working load (S.W.L): 25kN to 170kN
Hoisting load: 14.5kN to 70kN
Slewing load: 14.5kN to 70kN
Width: 2590mm to 4430mm
Height: 5100mm to 9090mm
Weight: 2820kg to 9438kg
Main Specification

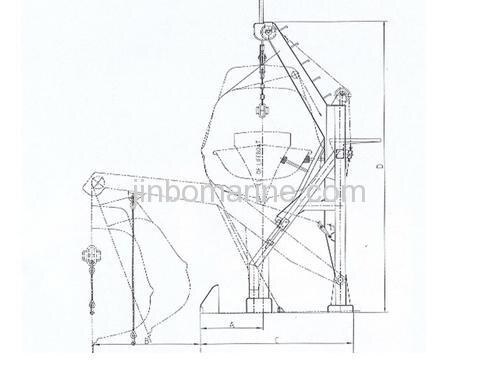

| Type | Max. Davit Load | Dimension(mm) | Winch Load | |||
| KN | A | B | C | D | KN | |
| LE65-1 | 55 | 1250 | 2000 | 2650 | 5480 | 48 |
| LE65-1 | 65 | 1300 | 2200 | 3100 | 6000 | 48 |
| LE85-1 | 85 | 1600 | 2680 | 3500 | 6600 | 63 |
| LE100-1 | 105 | 1700 | 2800 | 3600 | 6700 | 100 |
| LE138-1 | 138 | 1900 | 3250 | 4500 | 8000 | 100 |
| LE170-1 | 170 | 2300 | 3600 | 5200 | 10000 | 125 |
