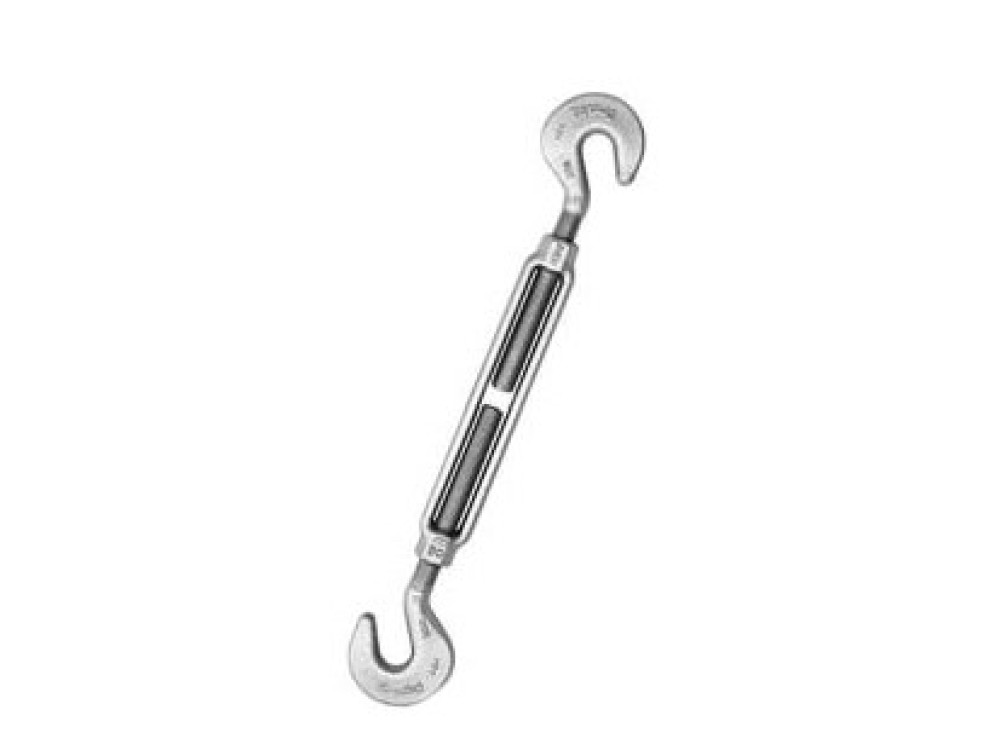

Hook & Hook Turnbuckles HG-223， SS304 OR SS316

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Hook & Hook Turnbuckles HG-223， SS304 OR SS316:

THREAD
DIAMETER
&TAKE UP
(mm) 		WEIGHT
each
(kg) 		DIMENSIONS(mm)
A D E
CLOSED 		F
 J
OPEN 		K
CLOSED 		M
OPEN 		N
CLOSED 		BB
6.35x102 0.15 6.35 11.2 42.3 32.3 249 187 310 208 103
7.94x114 0.24 7.94 12.7 50.7 38.1 294 218 358 243 116
9.53x152 0.38 9.53 14.2 57.8 44.7 387 270 453 301 155
12.7x152 0.85 12.7 16.5 89.7 57.9 457 335 527 375 153
12.7x305 1.26 12.7 16.5 89.2 57.9 769 495 839 535 314
15.9x305 1.46 15.9 22.9 108 71.4 495 368 572 419 153
15.9x305 2.08 15.9 22.9 107 71.4 809 529 885 580 315
19.1x152 1.91 19.1 24.9 129 84.6 538 406 620 467 156
19.1x305 3.14 19.1 24.9 128 84.6 853 568 935 630 320
19.1x457 3.92 19.1 24.9 129 84.6 1158 721 1240 782 471
22.2x305 4.47 22.2 28.7 148 96 886 597 972 667 309
25.4x305 6.7 25.4 31.8 167 108 929 637 1019 714 309
