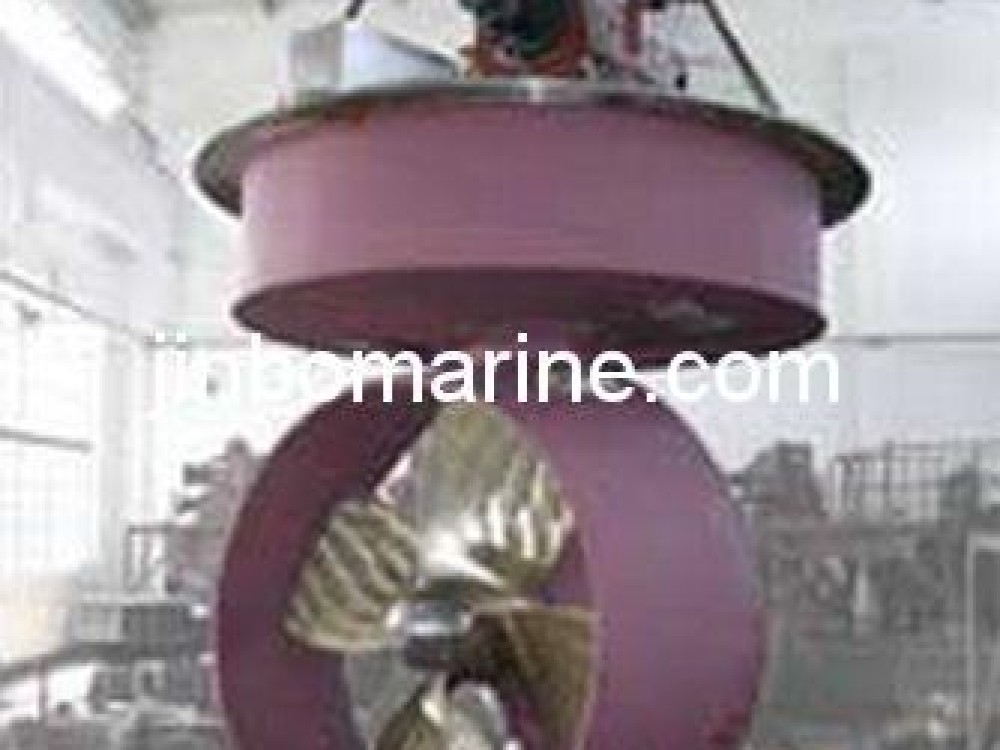

Hydraulic Azimuth Thruster

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Hydraulic Azimuth Thruster:

Hydraulic azimuth thruster drive the propellers by hydraulic motor.

The hydraulic drive provides fully proportional propeller speed control in forward and reverse while the engine runs at constant speed.

It is widely used in yachts, open body mud ships, easy type engineering ships and others.

Hydraulic Azimuth Thruster power ratings:from 50HP to 500HP.

Conversion from a simple barge or unpowered vessel can be done in as little as a few hours to less than a week without modifying the hull. The hydraulic drive is especially suited for shallow, brown water applications where debris in the water or shallow bottoms can be a problem.

The hydraulic propeller adopts to the hydraulic source as the driving force, and the propeller is directly driven by the hydraulic motor. The structure has the advantages of compact structure, convenient installation and maintenance, low cost, short production cycle, etc.. Its power range in 60HP-500HP. Suitable for the yacht, opened mud ship and simple engineering ship etc..

Advantages:compact structure, convenient install and maintain, lower use cost, shorter production period ,low noise.

Specification:

Model

Power Rating

(HP)

Dia of propeller

(mm)

Thrust

(t)

HP50

0-50

620

0-0.7

HP100

50-100

830

1-1.4

HP200

100-200

950

1.5-3.2

HP300

200-300

1000

3.4-4.4

HP400

300-400

1180

4.7-6.2

HP500

400-500

1300

6.5-7.7
