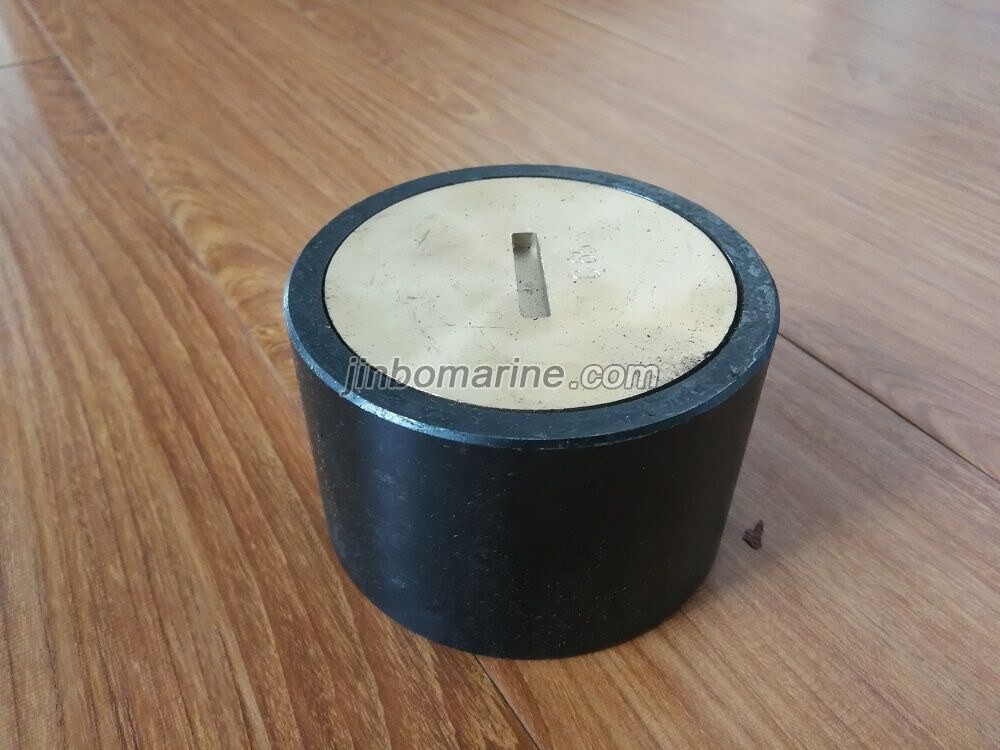

Inject Head Type C CB/T3778-1999

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Inject Head Type C CB/T3778-1999:

Inject Head is also called as brass plug, sounding head, sounding pipe head. There are type A, type B and Type C. Type A is the inject head for steel deck, Type B is the inject head for wood deck, Type C is the lift inject head.

Standard: CB/T3778-1999

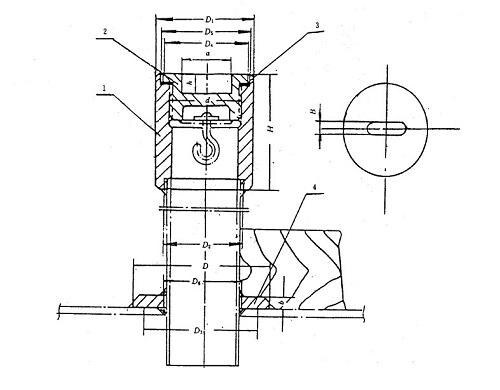

Material:

1-Body: Carbon Steel

2-Cover: Brass

3-Gasket: NBR

4-Welded Plate: WCB

Main Size List(mm):

DN H D1 D2 D5 D3 D4 a B h d D D6 b Weight(kgs)
40 60 73 50 59 65 57 34 6 10 M45*3 80 50 6 0.90
50 65 92 62 78 75 76 34 6 10 M60*3 92 62 6 1.10
65 70 108 82 94 90 92 34 6 10 M76*3 112 82 6 1.62
80 75 122 93 108 105 106 55 10 14 M90*3 123 93 10 2.41
100 80 142 118 128 130 126 55 10 14 M115*3 148 118 10 4.02
150 100 198 172 180 185 178 55 10 14 M165*3 202 172 10 9.18
