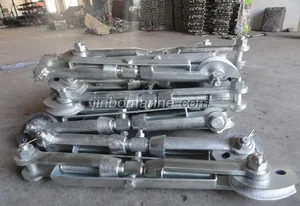

JIS F 3403 Rigging Screws

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China JIS F 3403 Rigging Screws:

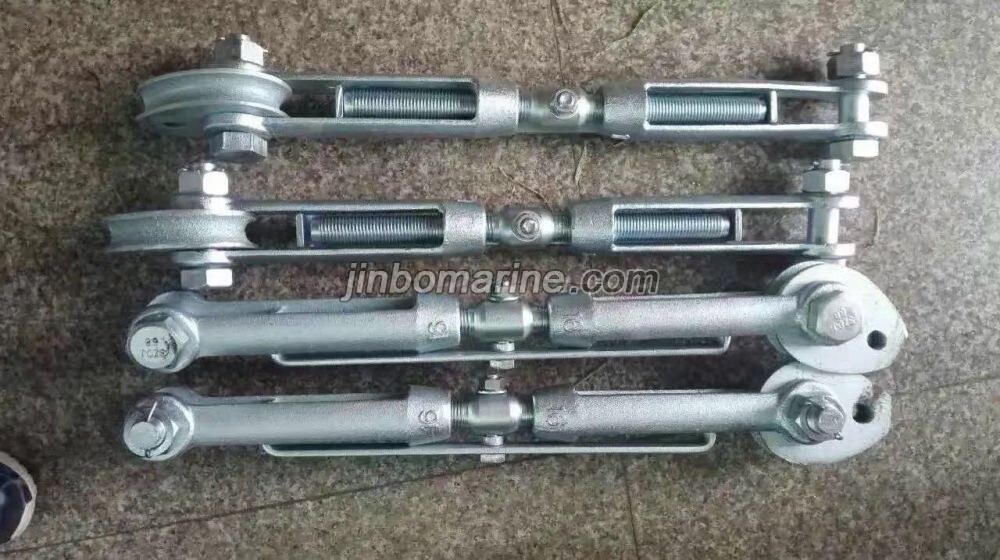

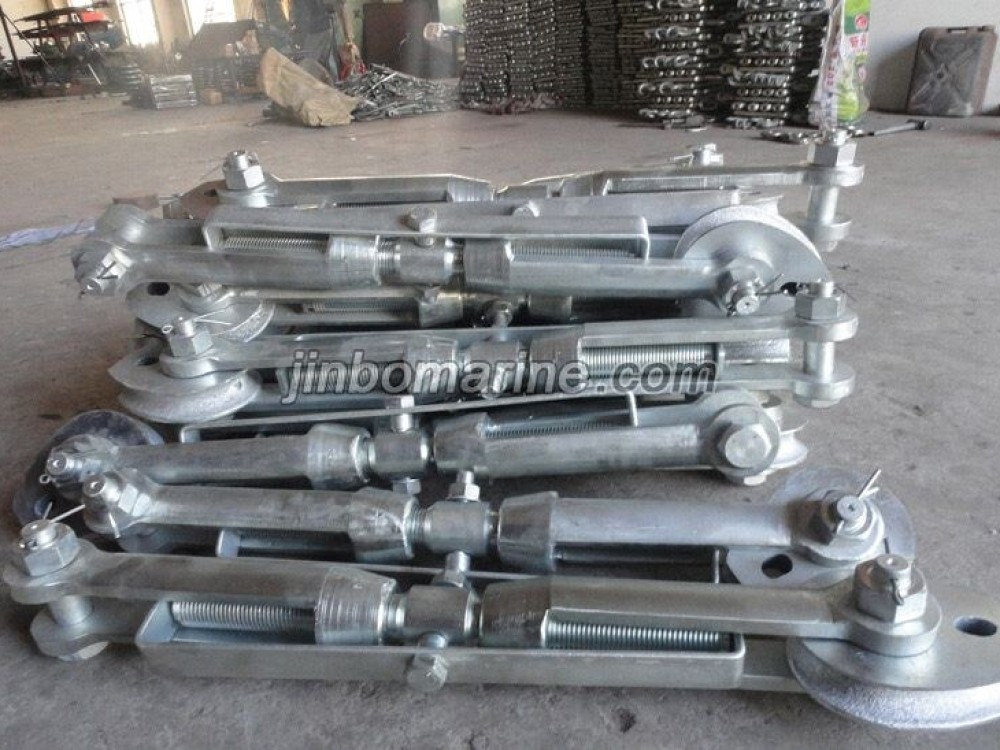

Drop forged frame with a solid thimnle and bolt ends, Rigging Scews used for standing rigging of ships' mast and post.

Please specify the diameter of wirel rope to be used when ording, also please specify galvanized or ungalvanized.

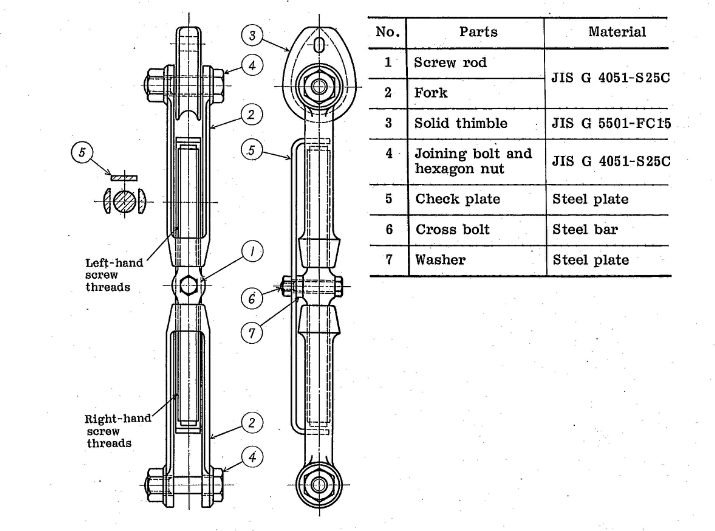

Rigging Screws Construction and Material

Specification

Nominal Size Dia. Of Wire Rope Nomial Size of Wire Socket SWL(Ton) Weight(Kg)
14 14 2.1 5.97
16 16 16 2.6 8.58
18 18 18 3.3 11.6
22 20-22.4 20-22 5.5 14.8
24 24 24 5.9 19.4
26 25 26 6.9 23.9
30 28-30 28-30 9.2 30.2
32 32 32 10.5 43.2
36 36 36 13 51.1
38 38 38 14.5 59.9
40 40 40 16.5 70.7
42 42.5 42 18.5 93.5
45 45 45 21 105
48 47.5 48 23 117
50 50 50 25.5 124
