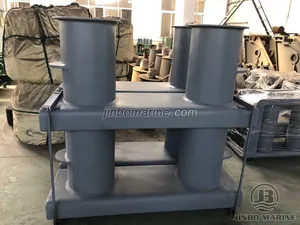

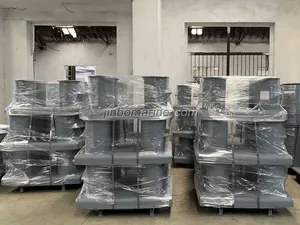

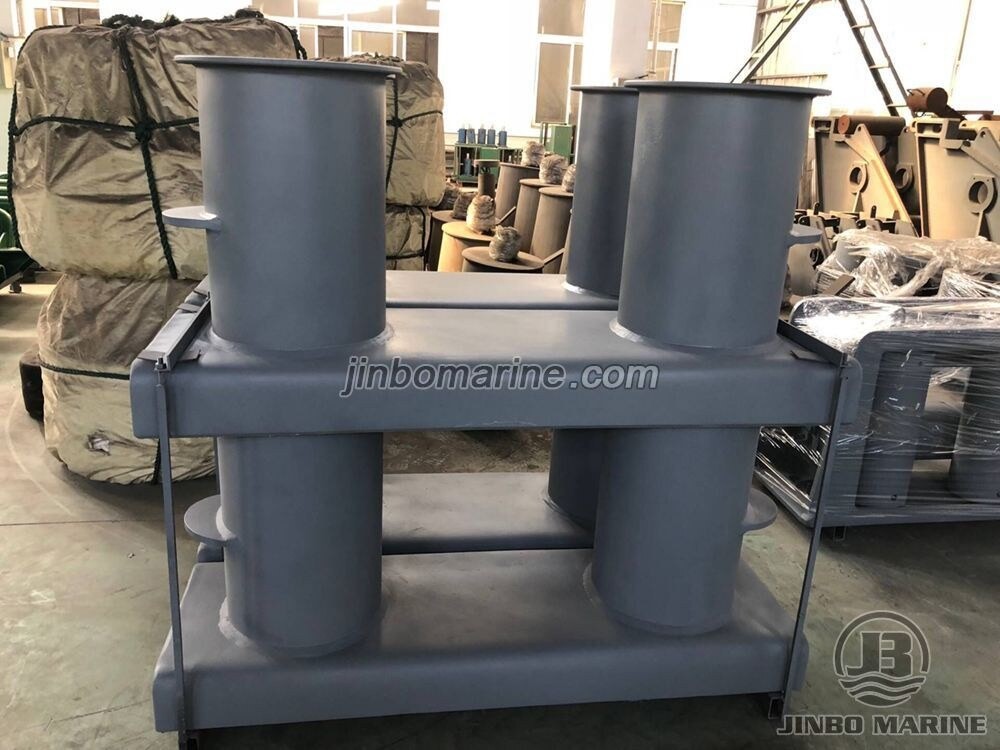

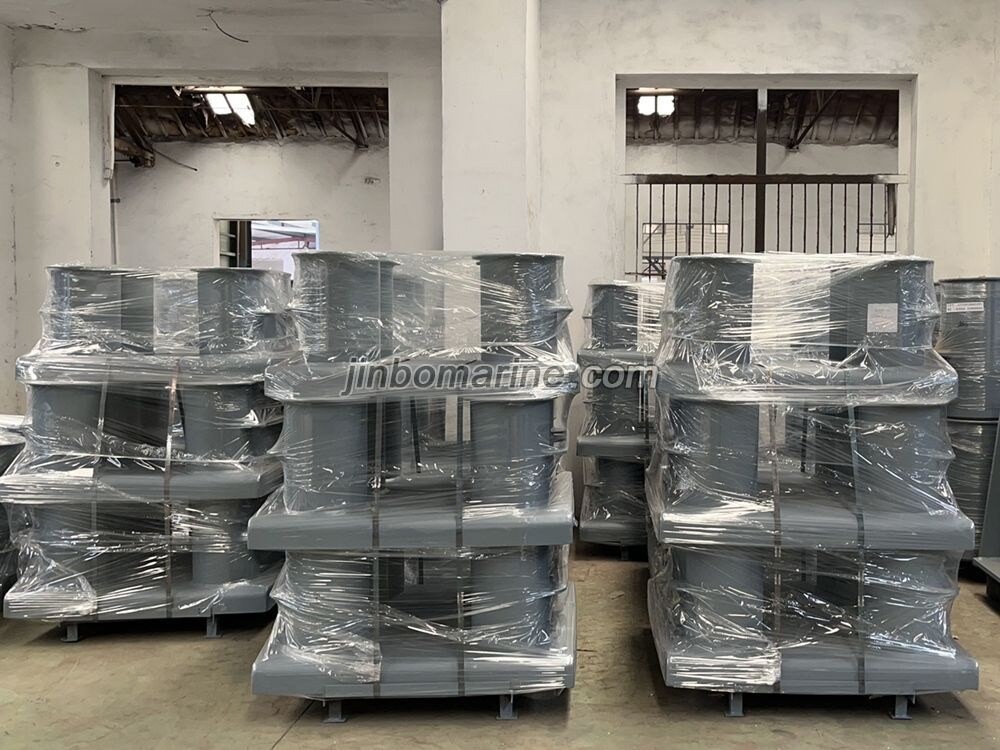

JIS F2001-1990 Marine Ship Double Bollard
- Category:Marine Bollard
- Standards:JIS F2001-1990
- Material:steel
- Certificate:BV , ABS , CCS, NK, LR, DNV & GL, mill certificate etc.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Jis F2001 1990 Marine Ship Double Bollard.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China JIS F2001-1990 Marine Ship Double Bollard:
Material: Steel
Finish: Epoxy finishing
Warranty: 2 Years
Certificate: ABS, BV, GL, LR, NK, DNV, CCS
Custom made
Drawing:
Dimension table:
| Double Bollard JIS F-2001-1990 | |||||||
| Product No. | Nominal Dia.(mm) | Dimension(mm) | Weight(kgs) | ||||
| A | B | C | D | Φ | |||
| BDJ-001 | 200 | 378 | 500 | 290 | 860 | 216.3 | 79.5 |
| BDJ-002 | 250 | 470 | 630 | 360 | 1065 | 267.4 | 139 |
| BDJ-003 | 315 | 597 | 800 | 430 | 1300 | 318.5 | 261 |
| BDJ-004 | 355 | 663 | 890 | 480 | 1475 | 355.6 | 361 |
| BDJ-005 | 400 | 749 | 1000 | 550 | 1630 | 406.4 | 502 |
| BDJ-006 | 450 | 841 | 1130 | 620 | 1840 | 457.2 | 685 |
| BDJ-007 | 500 | 928 | 1250 | 690 | 2040 | 508 | 911 |
| BDJ-008 | 560 | 1025 | 1380 | 750 | 2240 | 558.8 | 1208 |
| BDJ-009 | 630 | 1152 | 1570 | 820 | 2510 | 609.6 | 1601 |
