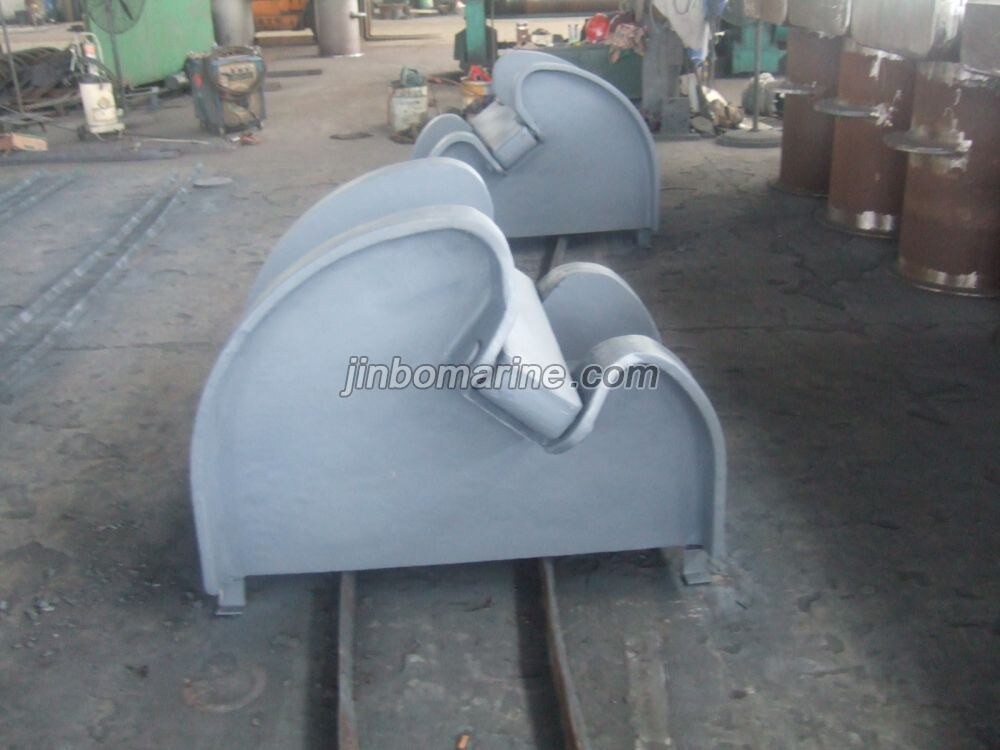

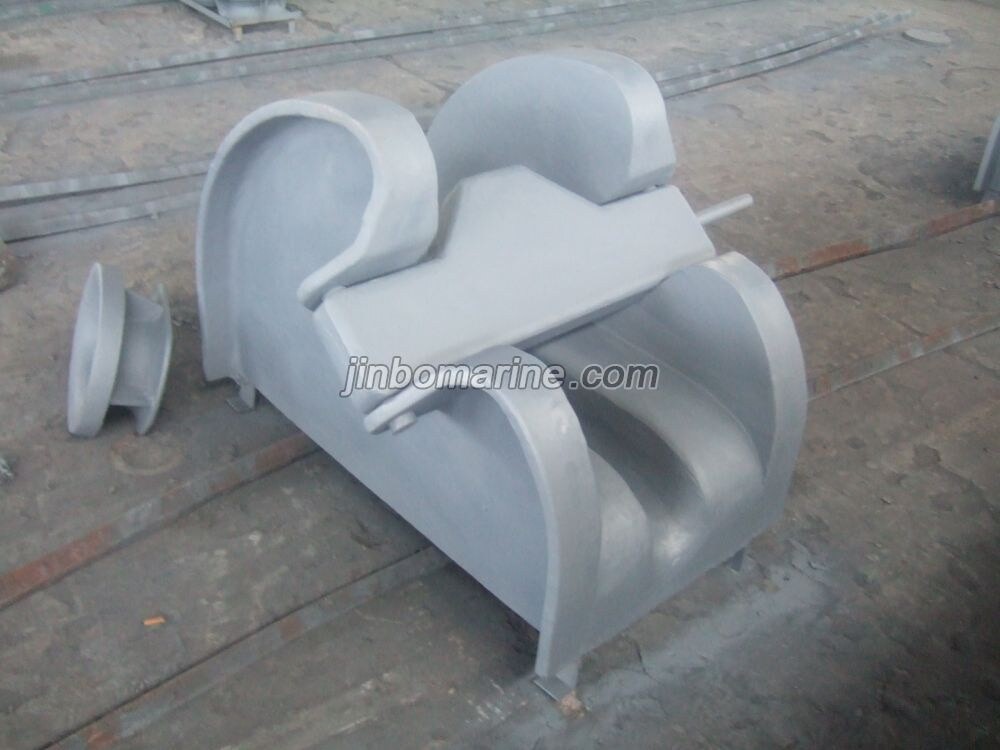

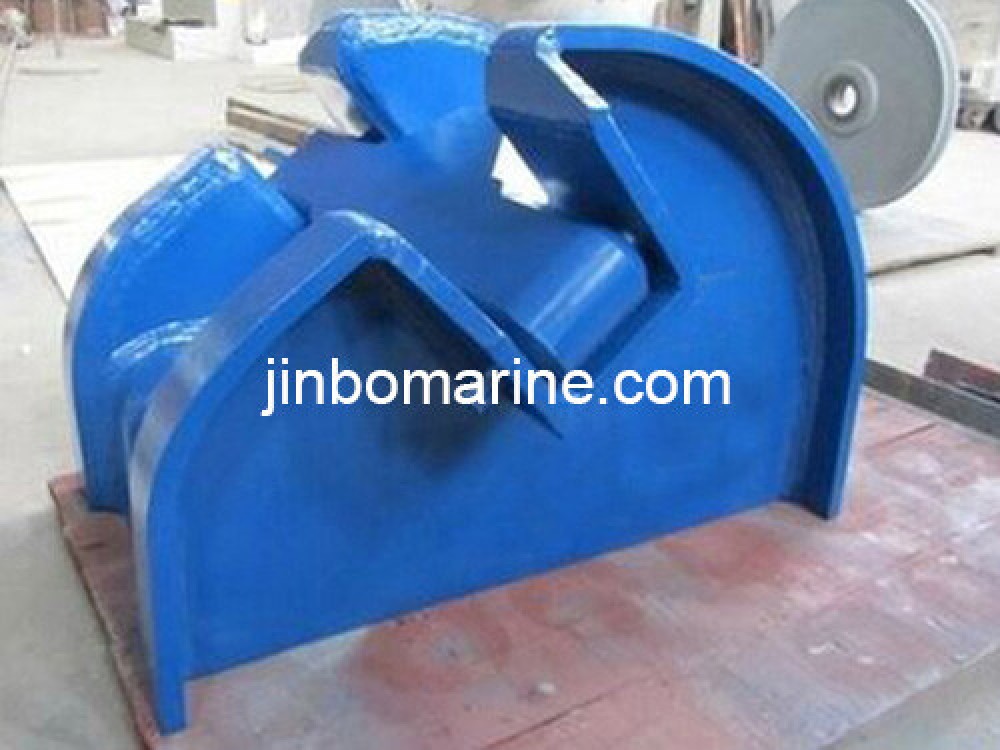

JIS F2015-1987 Cast Steel Bar Type Chain Stopper
- Category:Chain Stopper
- Material:Cast Steel
- Standards:JIS F2015-1987
- Certificate:ABS , BV, CCS, mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Jis F2015 1987 Cast Steel Bar Type Chain Stopper.pdf
Details
China JIS F2015-1987 Cast Steel Bar Type Chain Stopper:
When the vessel mooring ,chain stopper transport the pull strength of anchor and chain to vessel, can reduce the working load protect the anchor windlass. When sailing it stand the anchor weight and inertial force.
Process:casting,forging, welding
Finish: anti-rust paint
Withstand 80% of Chain Cable's breaking load

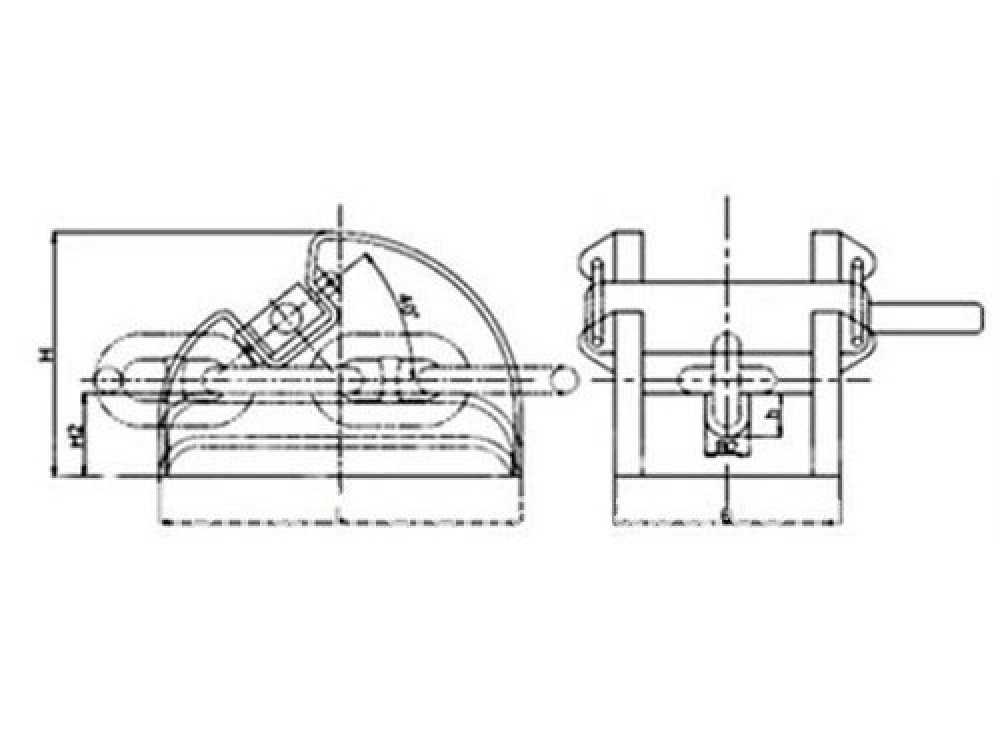

Size Chart:
|
Chain |
Dimensions(mm) |
||||||
|
B |
H |
H2 |
L |
h |
B2 |
Weight(KG) |
|
|
38-40 |
336 |
378 |
130 |
540 |
68 |
65 |
110 |
|
42-44 |
366 |
412 |
142 |
590 |
75 |
72 |
138 |
|
46-48 |
397 |
450 |
155 |
640 |
82 |
78 |
177 |
|
50-52 |
428 |
491 |
170 |
695 |
88 |
85 |
214 |
|
54-56 |
457 |
528 |
182 |
745 |
95 |
92 |
261 |
|
58-60 |
488 |
465 |
195 |
795 |
102 |
98 |
319 |
|
62-64 |
517 |
600 |
208 |
850 |
109 |
104 |
396 |
|
66-68 |
547 |
635 |
220 |
900 |
116 |
110 |
428 |
|
70-73 |
582 |
675 |
233 |
960 |
125 |
117 |
609 |
|
76-78 |
617 |
715 |
245 |
1020 |
133 |
123 |
740 |
| Size 62mm to 78mm counter-weight shall be equipped. | |||||||
|

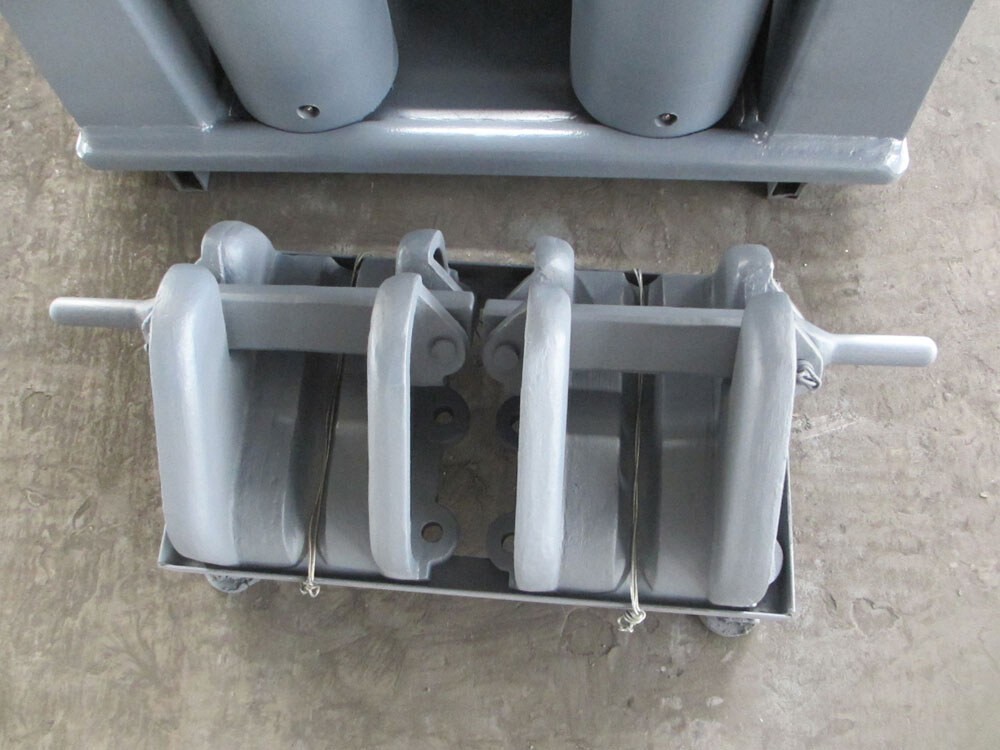

The bar can be opened in right or left hand side. |
|||||||
