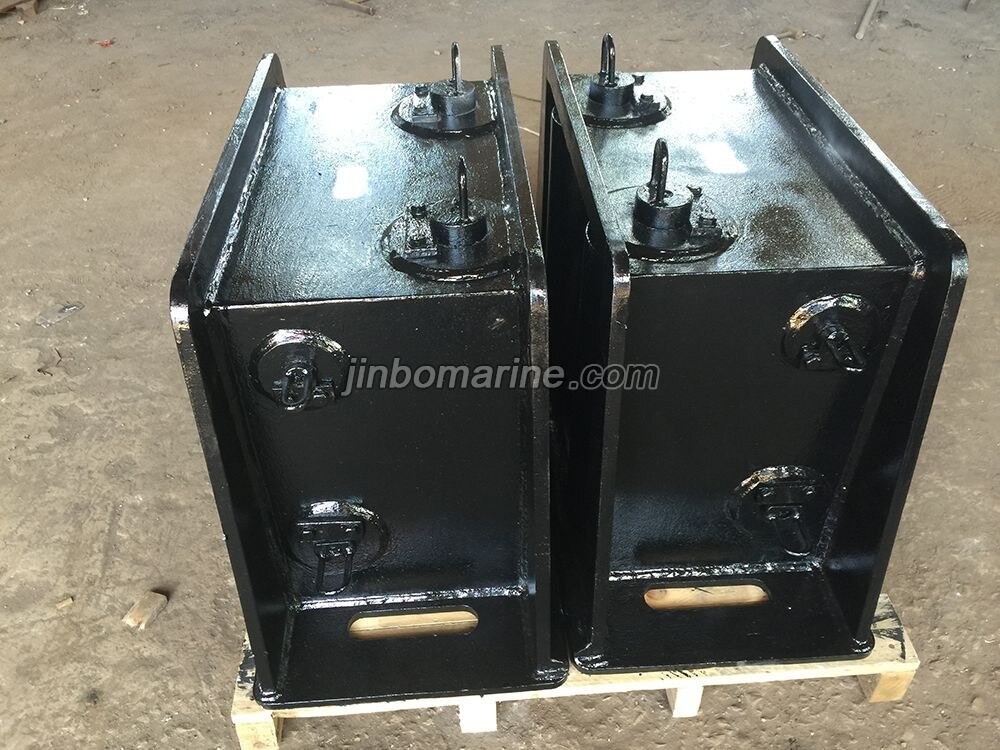

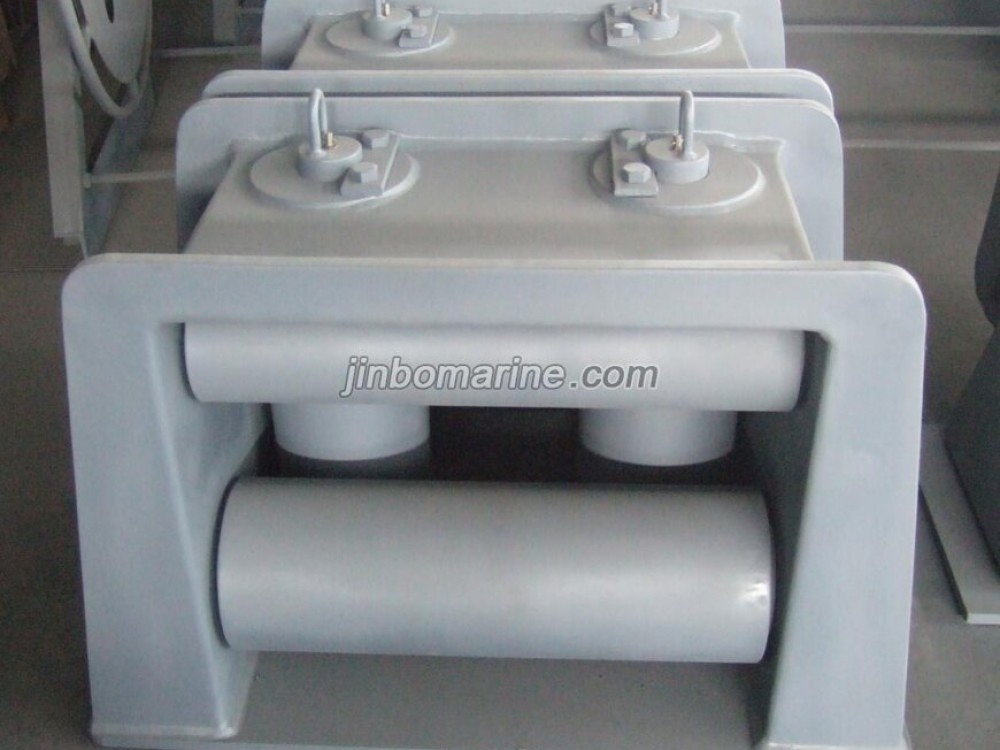

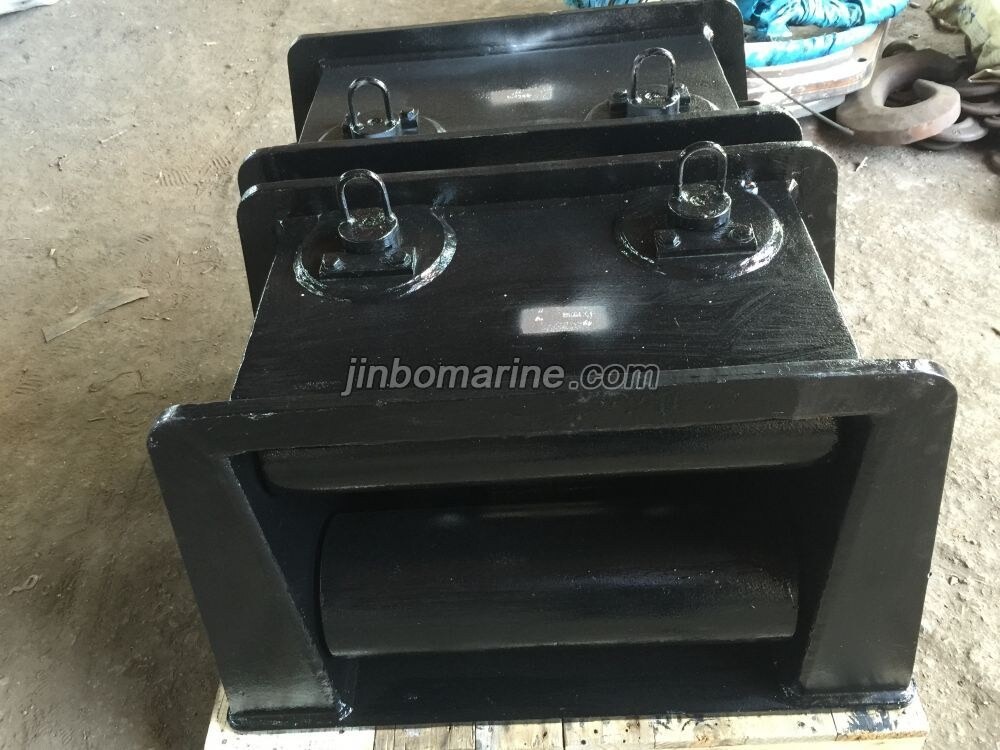

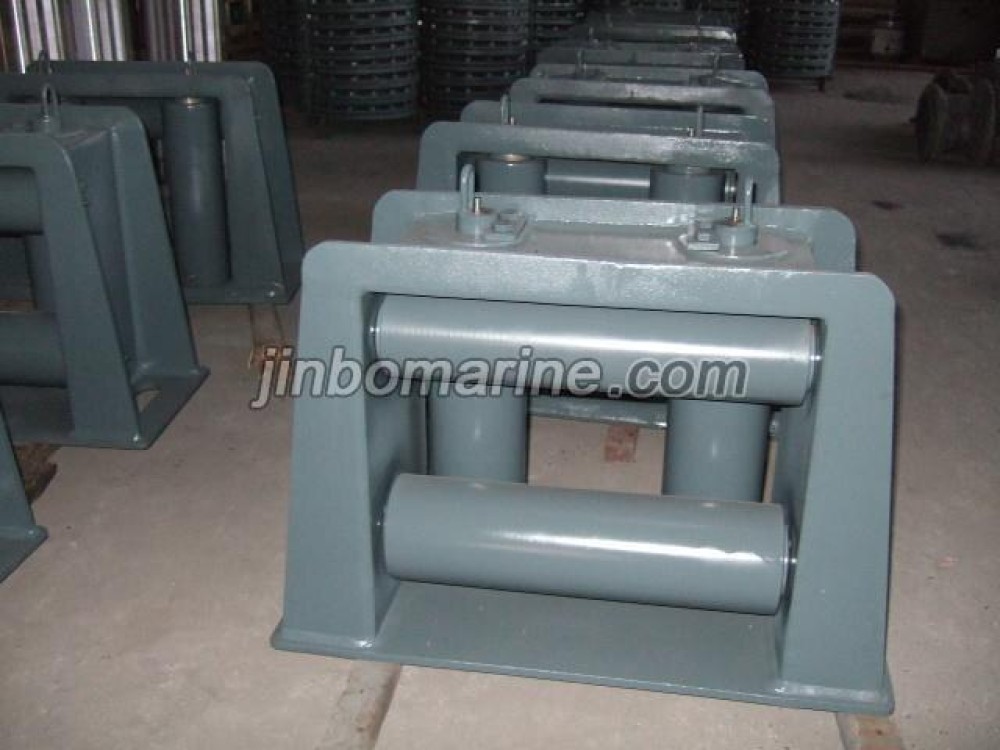

JIS F2026-1980 A Type Marine Roller Fairlead

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

JIS F2026-1980 A type Marine roller fairlead and FA4 series marine fairlead is vey popular type.

Feature:

1.Good wear and corrosion resistance.

3.Durable, long lifetime.

3.Provide CCS , BV , LR , BV etc Certificate.

4.Material:ZG230-450,Q235.

5.Surface: Blasting,Epoxy.

6.Customized service is available, Advanced equipment ,Strong consciousness in controlling quality.

We can supply roller fairlead, Fairleads with horizontal rollers according to JISF, DIN and GB standards . We can also make these products according to buyer's drawings.

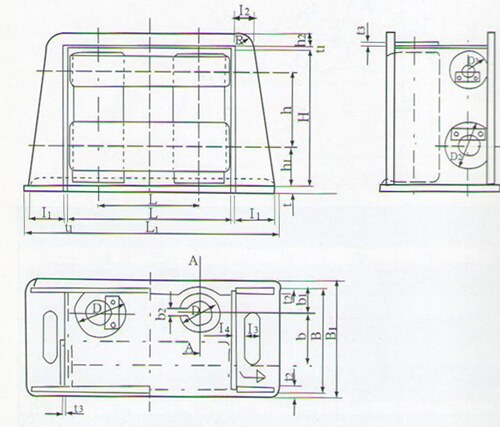

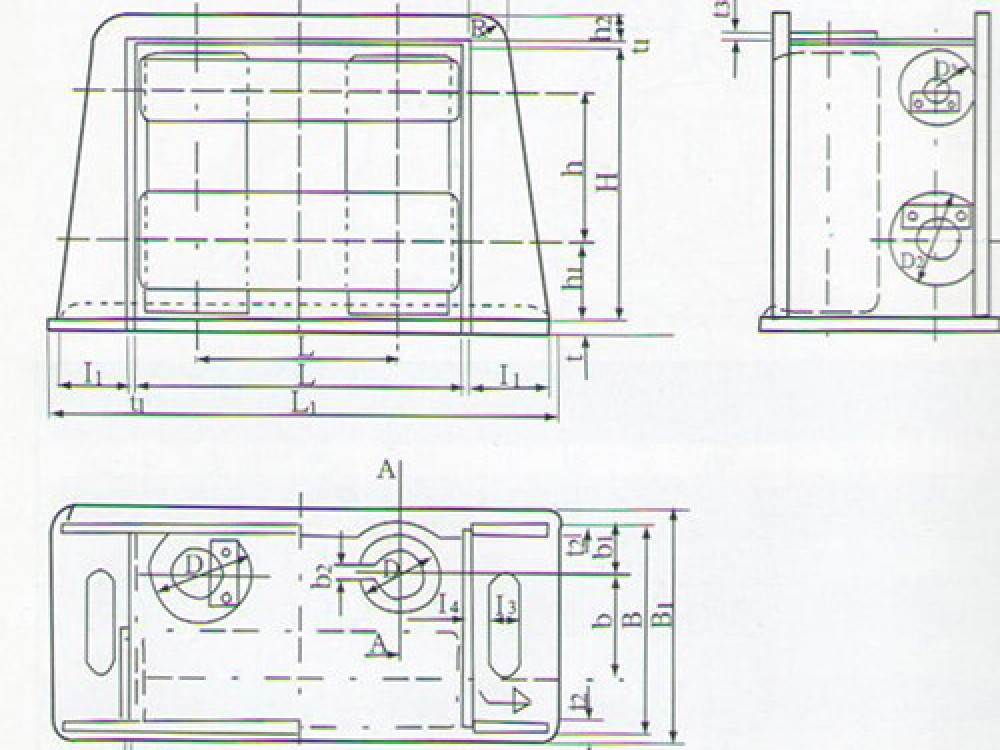

size chart:
Nominal dia Frame
B B1 b b1 b2 D D1 D2 H h h1 h2 L L1 l l1 l2
140 310 355 150 69 20 90 140 120 480 275 130 40 515 805 335 120 60
160 360 405 175 82 22 110 160 140 515 290 145 45 570 890 365 135 65
180 410 455 200 95 24 135 180 150 560 315 155 50 620 960 390 145 70
200 460 505 225 108 26 160 200 160 590 330 170 60 675 1049 420 160 80
250 565 610 280 133 30 200 250 200 715 415 195 75 825 1303 520 210 105
315 670 715 330 159 34 240 300 240 870 520 220 90 980 1562 620 260 130
