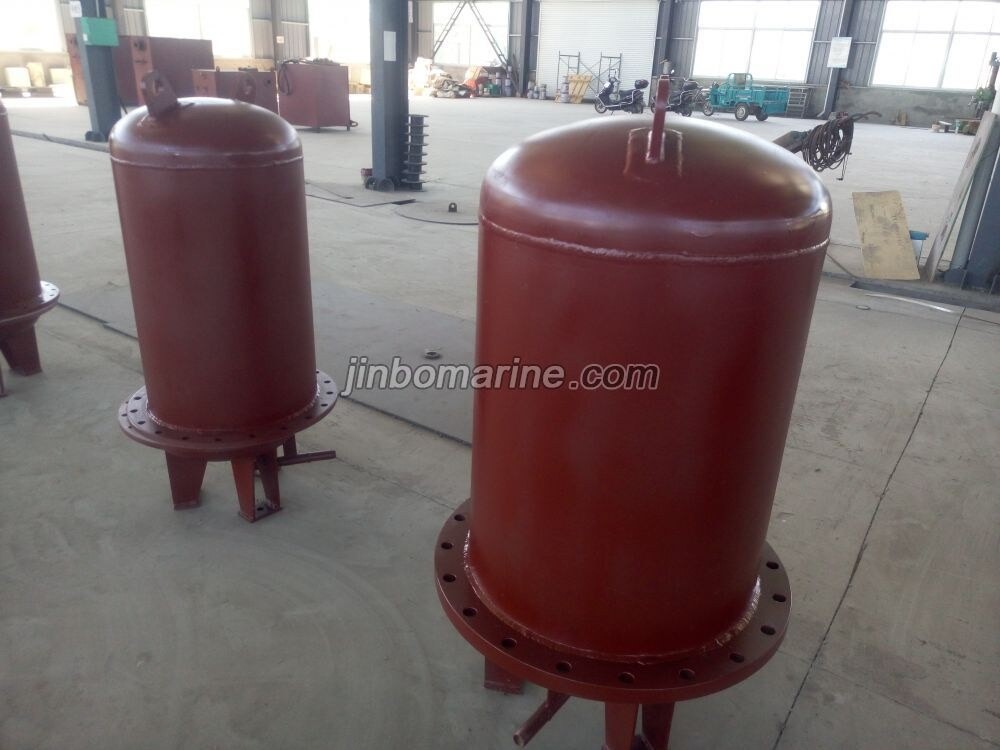

LR Approved SS304 Hydrophore
- Category:Pressure Water Tank
- Certificate:CCS,GL,BV etc.
- Packing Details:Standard Export Packaging
- Delivery Time:15-20days
- Supply Ability:10 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description:
This hydrophore can be used as marine fresh water tank or washing water tank, it can be used for suppling fresh warter or washing water for all presons of the ship. It is also can be formed a complete set with air compressor and used for suppling fresh water for tall building.
Technical Parameters:
|
Classfiction |
LR Class |
Hydraulic Test |
0.6Mpa |
|
Standard |
CB455-91 |
Air Tightness Test |
0.4Mpa |
|
Volume |
1.0 M³ |
Response Pressure of the Safety Valve |
0.42Mpa |
|
Design Temp. |
95℃ |
Main Material |
SS304 |
|
Working Pressure |
0.4 Mpa |
Surface Treatment |
Sandblast Sa2.5 |
|
Working Temp. |
50℃ |
Pump Model |
1.5CWX-2 |
|
Working Medium |
Water |
Delivery Time |
60 days |
