Marine Aluminum Alloy Pilot Chair with Rail TR-004

Request a Quote Not what you need, please send your RFQs via Email.

Details

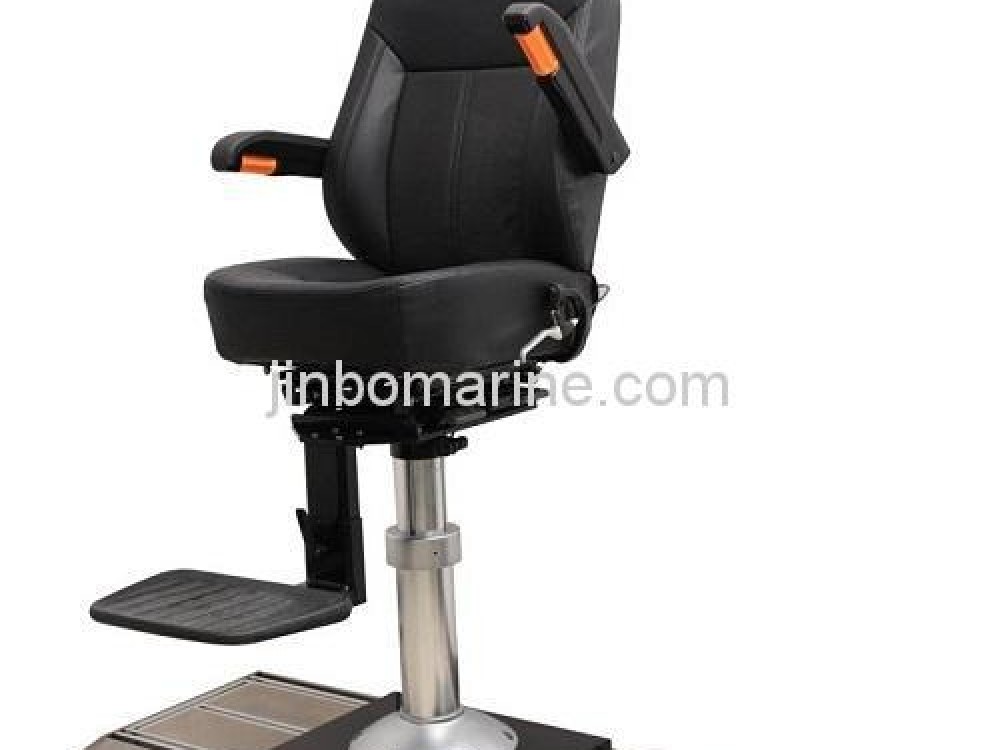

Marine Aluminum Alloy Pilot Chair with Rail

Model No: TR-004

Features:

1. Aluminum alloy pedestal with air operated lifting system

2.Wire control guide rail type

3. Meet the ergonomics design

4. Seat movable on the strong slideway

5. Adjustable backrest and headrest

6. Seat height can be adjusted for angle

7. Movable seat forward and back

8. Foldable/angle adjustable comfort armrests

9. Swivel-mechanism 360,Multi-point positioning

10. Height adjustable/foldable footrest

11.Strong lifting column/Saltwater resistant/shock absorber in column

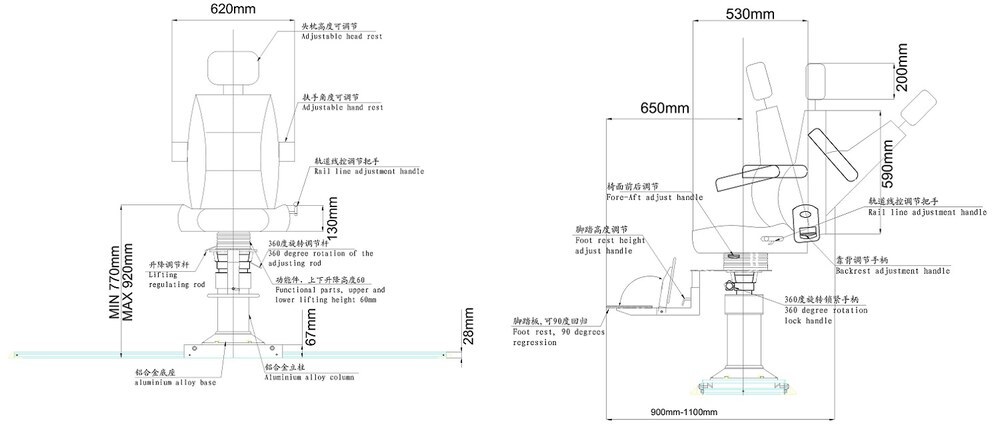

Function data:

1.Upper part of the seat can be moved back and forth of120mm,height adjustment60mm,seat inclination angle range of±12°;

2. Seat backrest with adjustable angle of 85°-150°,the headrest is adjusted up and down50mm,handrest multi-point positioning control;

3. The seat of pneumatic lifting regulating range0-150mm;

4.The seat can rotate360°and locked ,4-point positioningcontrol;

5.Seat rail slide in0-6000mmmobile,500mmrail width and depth28mm

6. Seat pedal can rotate90°and regression, upper and lower position adjusting range of0-50mm;

7.Seat can bear more than150FT.LBtorsion, reached AD grade standard;

Material:

1. The slide guide rail and positioning base : high strength of aluminum alloy. The Mosaic Bevel edge decorative: stainless steel material;

2. Mobile base, lifting columns: the steel and Stainless steel products .

3. Seat lifting tilted, and moved back and forth, back of a chair Angle adjustment :The steel structure;

4. The seat back and seat cushion :steel inner core and PU cold foaming sponge synthesis, covered by leather or cloth art;

5. Foot pedals :the steel inner core and Environmental rubber products synthesis;

6. Air pressure lifting core components and Gas Spring : German import Stabilus;

7. The chair face material is black high quality PU imitation leather, can also be

Customized True Leather or fabric; Chair face shape and color Can be customized according to customer requirements;

Standard Slide-style driving seat track length is 1.2 m, if need to lengthen, Can be customized according to customer requirements;
