Marine Bow Thruster

  • Category:Bow Thruster
  • Certificate:CCS.ABS,BV,DNV,LR etc.
  • Material:Cu
  • Packing Details:Wooden Case
  • Supply Ability:30 sets
  • Delivery Time:40 days
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

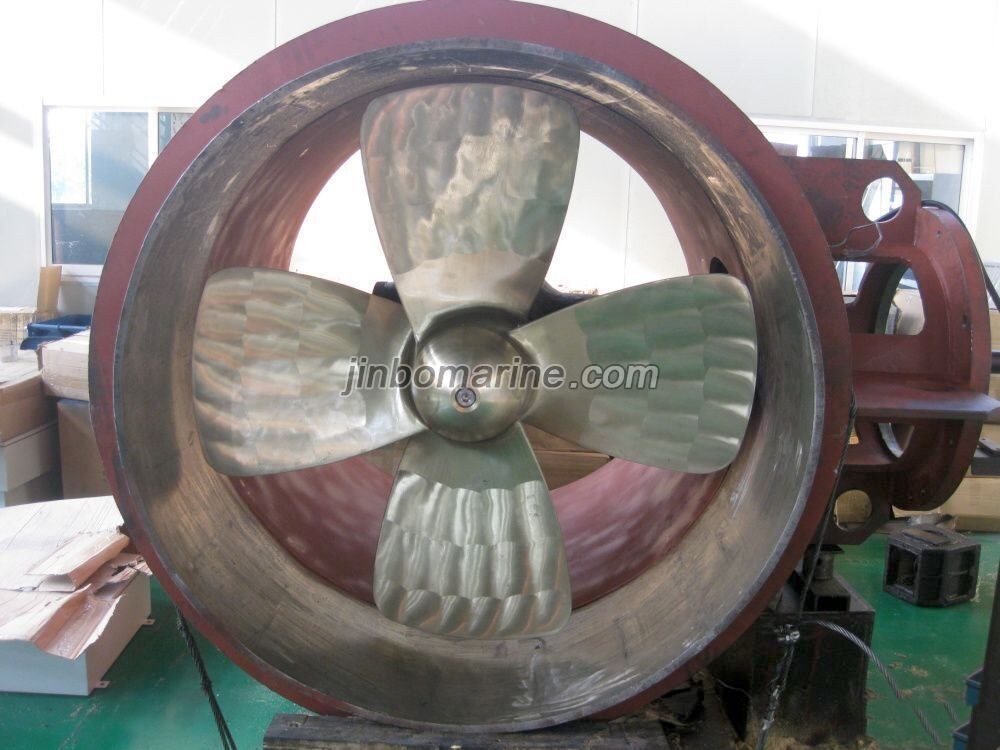

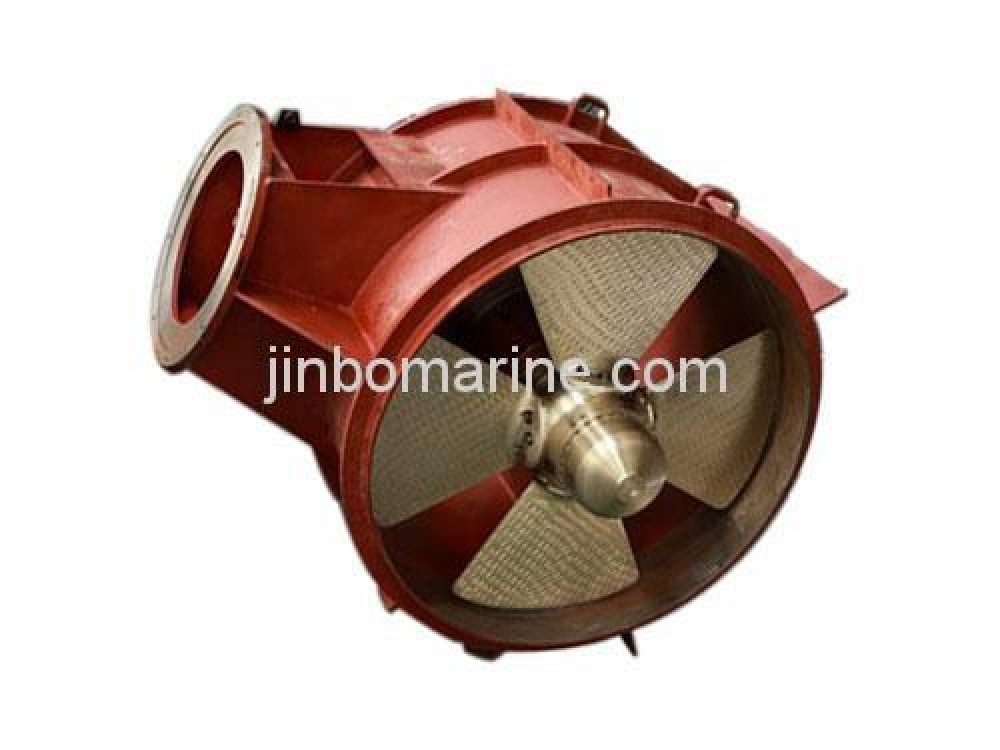

China Marine Bow Thruster:

Bow thrusters are type of propellers, which are smaller in size and which help in better maneuverability of the ships at lower speeds. They are generally used for maneuvering the vessel near the coastal waters or while entering or leaving a port. Bow thrusters help in assisting tug boats in berthing the ship without wasting time. This saves a lot of money for the shipping company because of lesser stay of the ships in the ports. Moreover, presence of bow thrusters on a vessel eradicates the need of two tugs while leaving and entering the port, and thus saves more money.
Generally, bow thrusters are transverse thrusters placed at the forward and aft end of the ship. The thruster placed in the forward end is known as the bow thruster and the one placed in the aft is known as the stern thruster. The requirement for the number of thrusters to be installed depends on the length of the ship.

Advantages

Fixed and controllable-pitch propellers available.

Combinable with diesel, hydraulic or electric drive.

Product list

No.

Part Description

Material

1

Blade, Hub

Nickel-aluminum bronze. Meet classification rules.

2

Drive Shaft, Gear

High class alloy steel. Tooth surface is hardened. Meet classification rules.

3

Propeller Shaft

High class alloy steel. Meet classification rules.

4

Gear Box

Cast iron. Meet classification rules.

5

Tunnel

Class B steel plate. Meet classification rules.

6

Propeller Shaft Seal, O Ring

NBR

7

Hand pump,gravity tank,coupling

standard

Optional

8

Motor brand

HengLi ,ABB,Siemens,Schneider

9

Frequency Inverter brand

Vacon, Danfoss,Siemens,Schneider

10

Central control box,control panel

Siemens electronic component
