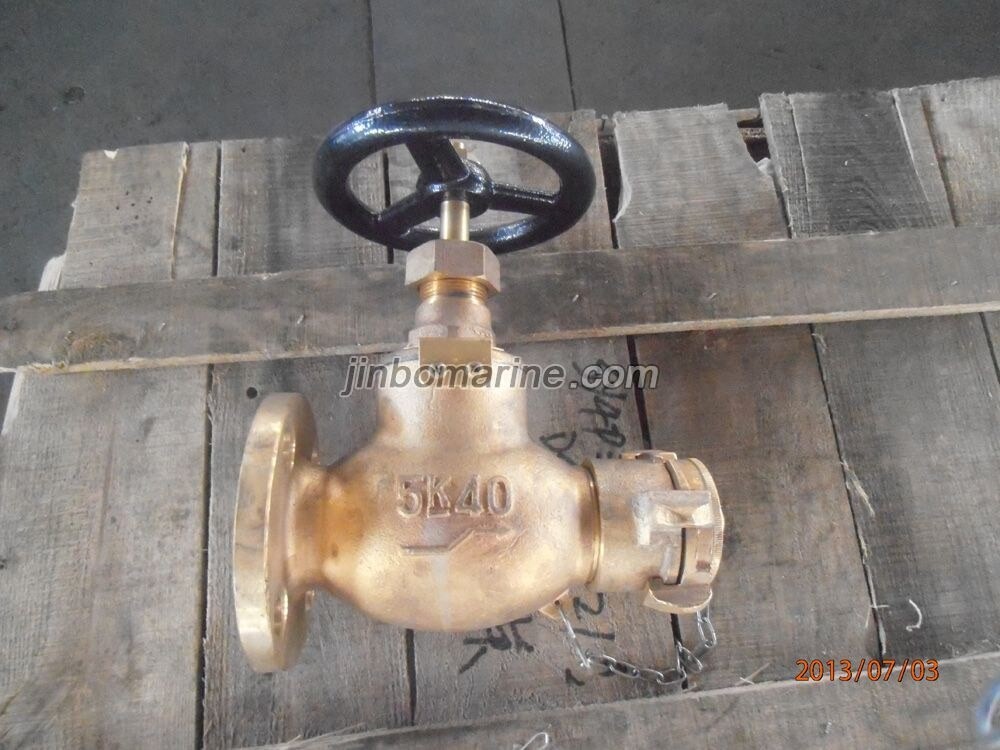

Marine Bronze Globe Hose Valve JIS F7334 5K (DN40-DN65)

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Globe Hose Valve JIS F7334 5K (DN40-DN65):

Design Standard: JIS F7334-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 -5K

Main Material:

Body: Bronze (BC6)

Disc:Bronze (BC6)

Seat: Bronze (BC6)

Stem: Brass (C3771BD)

Coupling: Brass or Bronze

Bonnet:Bronze (BC6)

Handwheel: Cast Iron (FC200)

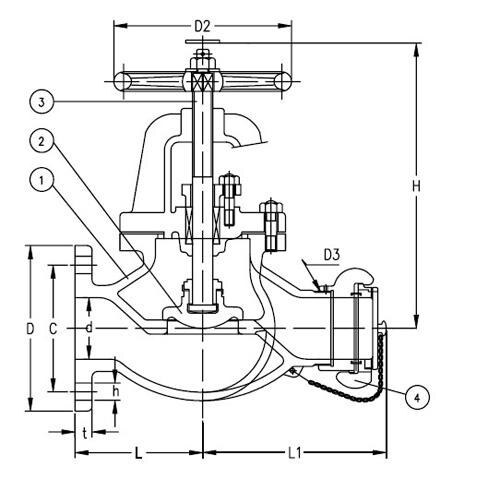

Main Size List(mm):

IMPA CODE Size Pressure L1 L D C t No of Bolt Hole h H D2
751711 40 5K 80 129 120 95 12 4 15 190 140
751712 40 10K 90 134 140 105 16 4 19 190 140
751716 50 5K 105 160 130 105 14 4 15 225 160
751717 50 10K 110 165 155 120 16 4 19 270 160
751718 65 10K 135 200 175 140 18 4 19 295 200
