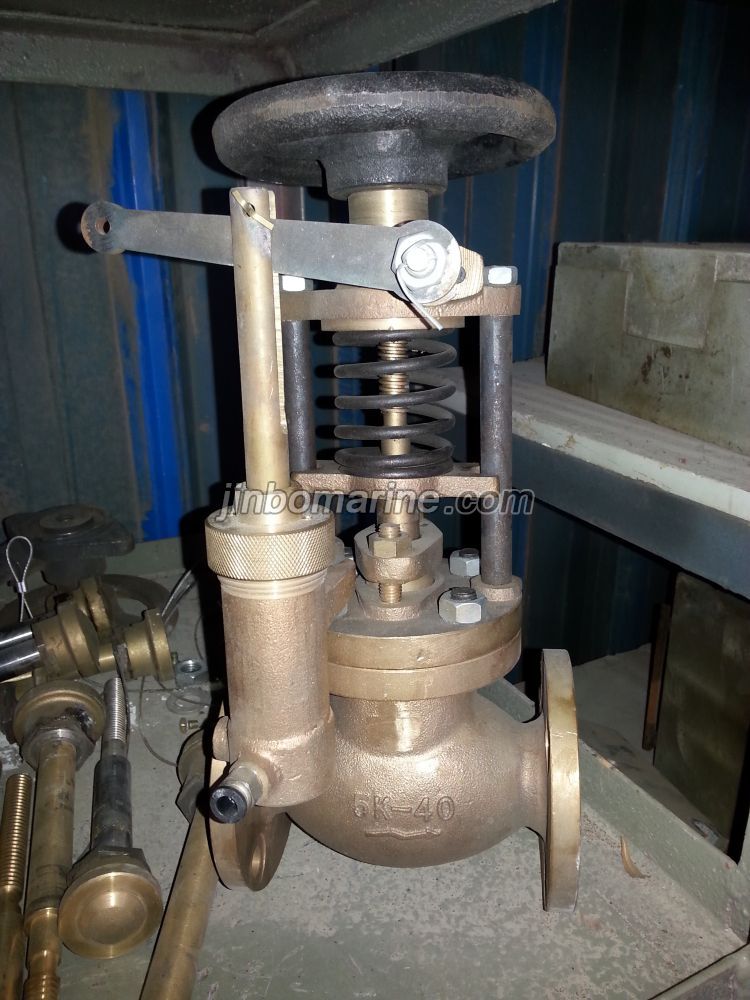

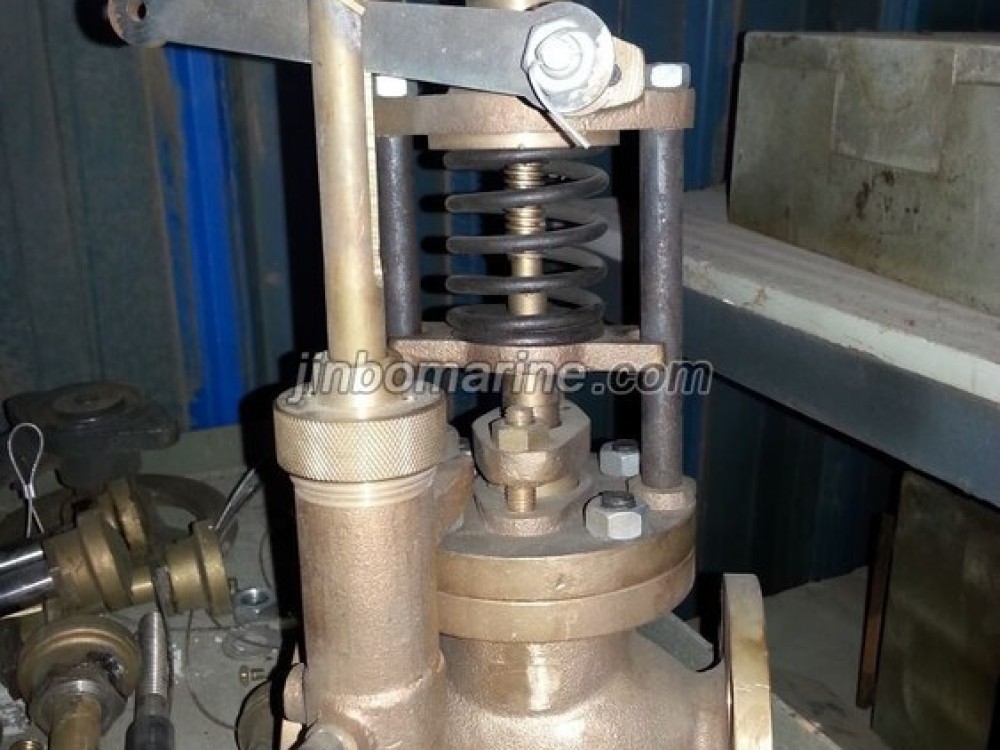

Marine Bronze Pneumatical Emergency Shut-Off Valve JIS F7399 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Pneumatical Emergency Shut-Off Valve JIS F7399 5K:

Marine Emergency Shut-off Valve is used to shut off the fuel oil pipeline in emergency. It can be controlled by lever or air cylinder. The remote control is impelmented by air cylinder.

Operation type: Manual (Lever) or Pneumatic (air cylinder)

Design Standard: JIS F7399-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure:Body- 0.7Mpa, Seat-0.2Mpa,Seal for quick closing-0.1Mpa

Flange size as per JIS B2220 - 5K

Main Material:

Body: Bronze or Brass

Bonnet: Bronze or Brass

Seat: Brone or Brass

Disc: Brone or Brass

Stem: Brass (C3771BD)

Air Cylinder: Brass

Operation Spindle: SUS403

Operation Lever: SUS403

Handwheel: FC200 (Cast iron)

Gasket: non-asbestos

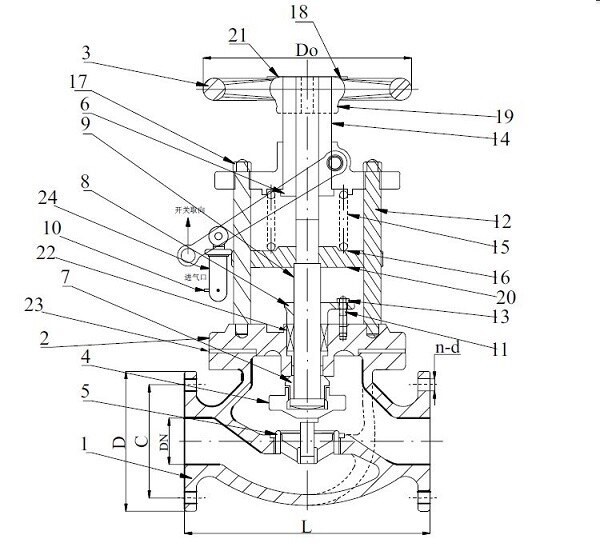

Main Size List (mm):

DN
d L D C Bolt Hole NO. Bolt Hole Diameter Flange thickness H D2

5K15

15 100 80 60 4 12 10 265 120
5K20 20 110 85 65 4 12 10 265 120
5K25 25 120 95 75 4 12 10 265 120
5K40 40 160 120 95 4 15 12 310 140
5K50 50 210 130 105 4 15 14 335 160
5K65 65 250 155 130 4 15 14 395 180
5K80 80 280 180 145 4 19 18 420 180
10K15 15 110 95 70 4 15 12 265 120
10K20 20 120 100 75 4 15 14 265 120
10K25 25 130 125 90 4 19 14 265 120
10K40 40 180 140 105 4 19 16 310 140
10K50 50 220 155 120 4 19 16 335 160
10K65 65 270 175 140 4 19 18 395 180
10K80 80 300 185 150 8 19 18 420 180
