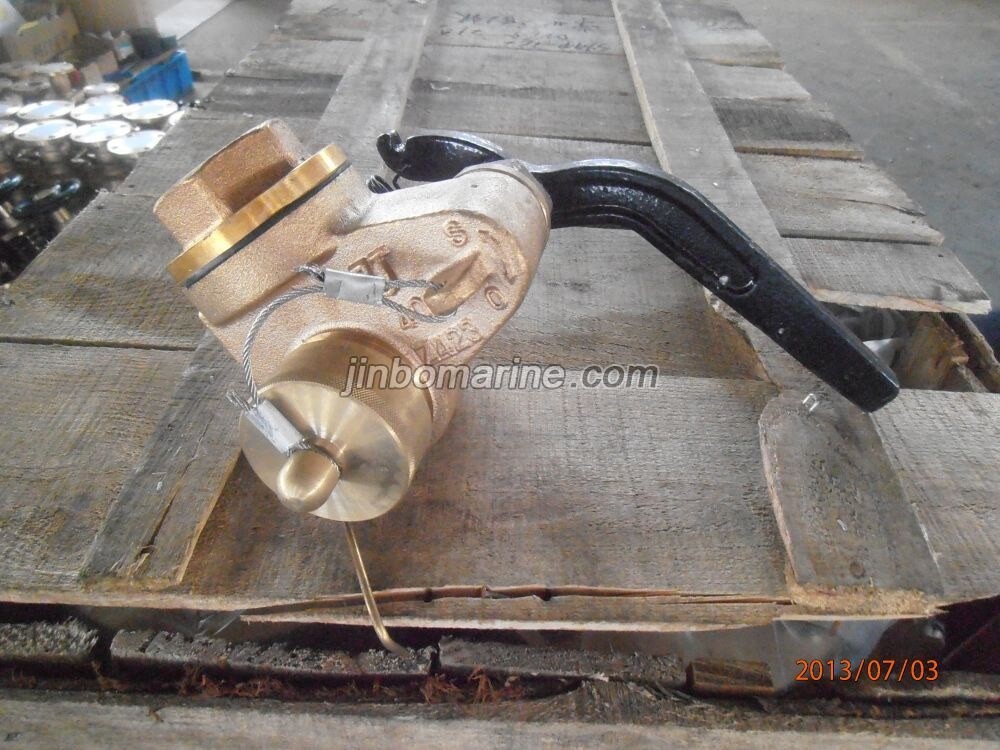

Marine Bronze Self-Closing Gate Valve Head for Sounding Pipe JIS F3019

Design Standard: JIS F3019-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-0.3Mpa, Seat-0.2Mpa

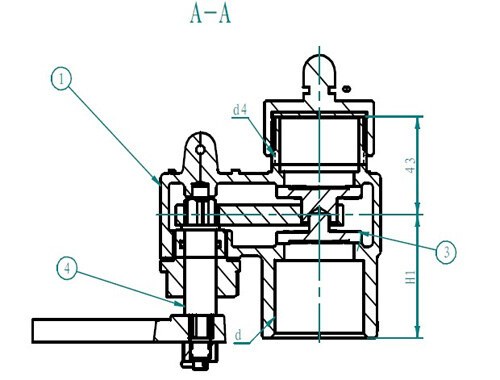

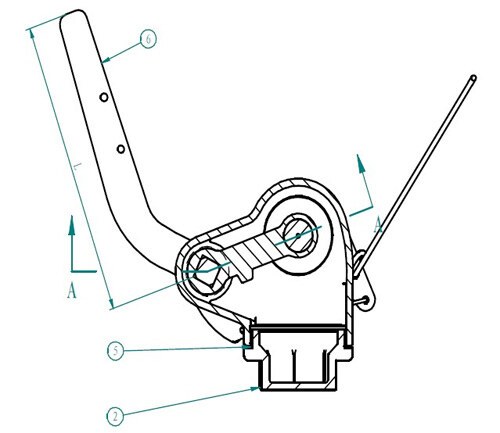

1-Body: Bronze (BC6)

2-Bonnet:Bronze (BC6)

3-Disc: Bronze (BC6)

4-Stem: Brass (C3771BD)

5-Gasket: NBR

6-Lever: Cast Iron

Main Size List(mm):
